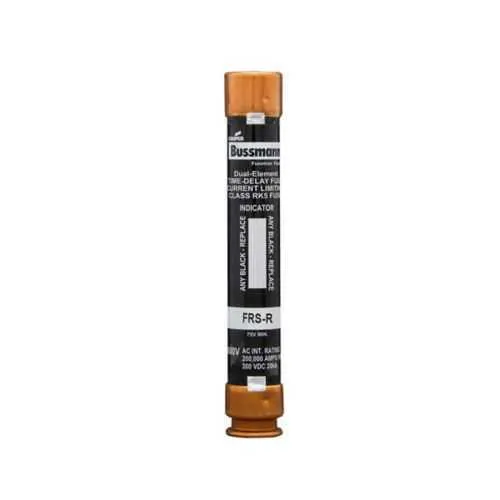

Eaton FRS-R-17-1/2ID Fuse - Class RK5, 200 kAIC
Part Number: FRS-R-17-1/2ID
Quick Summary
The Eaton FRS-R-17-1/2ID fuse provides time-delay, current-limiting protection for panel and motor circuits. In demanding industrial environments, nuisance trips from inrush can cause unscheduled downtimes and costly maintenance. This device is CE Marked and built to the Bussmann RK5 class standard as a robust protection solution, with dual-element construction for reliability. By combining a 17.5 A rating with a 200 kAIC interrupt capability at 600 Vac, it supports compliant, efficient protection of control panels while enabling targeted coordination and easier replacement. For engineers and procurement teams, this fuse offers predictable performance and a clear path to consistent uptime and cost control.
Product Information
Extended Description
FRS-R-17-1/2ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 17.5 A, indicating fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-17-1/2ID
UPC
051712204576
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
17.5 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature → Business Impact → Application: Time-delay, dual-element design provides selective protection that tolerates motor start-up surges, reducing nuisance trips and extending equipment life in conveyors and machine automation. This translates to measurable uptime gains and lower maintenance costs in packaging lines and assembly cells. Feature → Business Impact → Application: High 200 kAIC interrupt rating at 600 Vac delivers rugged fault handling for feeder circuits and power distribution in industrial facilities, minimizing arc fault energy and downstream damage. Application includes panel boards and main distribution where reliability is critical. Feature → Business Impact → Application: 17.5 A amperage rating aligns with common branch circuits, enabling safer protection of control circuits and contactors without oversizing breakers. Application spans control panels, motor starters, and safety interlock circuits. Feature → Business Impact → Application: Ferrule end x ferrule end connections streamline installation, improve terminal reliability, and simplify replacement in retrofit projects. Application includes standardized Bussmann series fuse layouts and modular panel designs. Feature → Business Impact → Application: CE Mark compliance and Class RK5 classification provide regulatory alignment and well-understood protection standards, supporting audit readiness and cross-site consistency. Application includes European deployments and multinational manufacturing ecosystems. Feature → Business Impact → Application: Time-delay current-limiting capability helps limit fault energy during faults, protecting wiring insulation and reducing downstream damage in high-inrush applications like pumps and fans.
Get a Quick Quote for a Eaton FRS-R-17-1/2ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS-R-17-1/2ID?
Enquire Now
FAQs
The FRS-R-17-1/2ID uses ferrule end x ferrule end terminals with a standard 5 in body length. For secure, vibration-resistant connections, use ferrule-style terminals and torque per your terminal block specifications. The rugged ferrule ends simplify installation in panel boards and control cabinets.
Amperage rating is 17.5 A, with an interrupt rating of 200 kAIC at 600 Vac (and 20 kAIC at 300 Vdc). Voltage rating is 600 Vac / 300 Vdc. The device is time-delay and current-limiting, designed to protect branch circuits in industrial controls and motor loads.
Yes. The dual-element, time-delay design accommodates motor inrush, reducing nuisance trips while still providing fast interruption during a fault. It is well-suited for motor starters, conveyors, and other equipment with short-term surges in industrial environments.
The fuse is CE marked, indicating European safety compliance. RoHS information is accessible via Eaton’s RoHS search tool, ensuring environmental compliance data is readily available for procurement and regulatory audits.
Leverage its long-time-delay protection to minimize unnecessary replacements due to inrush trips. Keep spares of the exact model for quick swaps in panel boards, and consider indicator variants if real-time fuse status signaling is required for remote monitoring and faster fault diagnosis.
