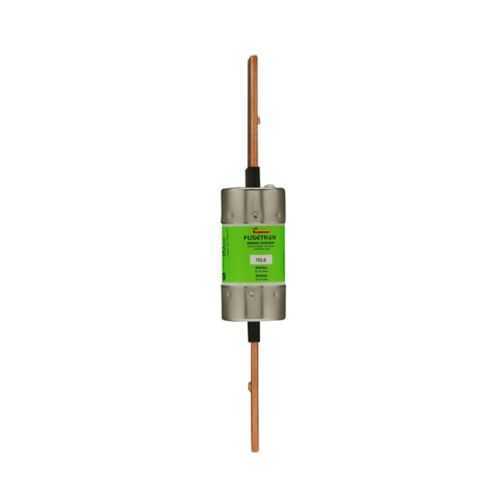

Eaton FRS-R-175 Fuse - Class RK5, 200 kAIC at 600 Vac
Part Number: FRS-R-175
Quick Summary
The Eaton FRS-R-175 fuse is a time-delay, dual-element protection device designed for branch circuits in industrial control systems. This approach helps prevent nuisance trips during inrush events while safeguarding sensitive equipment. CE marking, RoHS compliance, and Class RK5 alignment provide robust regulatory and performance assurances for European and global installations. Its compact form factor, blade-end connections, and non-indicating design support quick, reliable installation and straightforward maintenance, reducing panel downtime and total cost of ownership across manufacturing and process environments.
Product Information
Extended Description
FRS-R-175 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 175 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-175
UPC
051712508476
Product Length/Depth
9.63 in
Product Height
1.6 in
Product Width
1.6 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
175 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R 65-600 A fuse data sheet no. 1018
Feature → Business Impact → Application: Time-delay, dual-element design provides selective coordination in motor start-ups and short-circuit events, reducing nuisance trips and improving line uptime in PLCs and drives. Application: Control panels and motor control centers in automotive, packaging, and process industries benefit from reliable protection with minimal disruption. Feature → Business Impact → Application: 175 A amperage rating paired with a 200 kAIC interrupt rating at 600 Vac delivers strong fault protection without compromising normal operation, enabling safer power distribution for CNCs and robotics. Application: Heavy machinery, conveyors, and servo systems where high inrush currents are common. Feature → Business Impact → Application: Blade-end connections and compact RK5 class construction simplify installation, enabling rapid replacement and standardized spares management in maintenance-heavy plants. Application: Panel builders seeking consistent fuse characteristics and reduced wiring complexity. Feature → Business Impact → Application: CE Marked and RoHS-compliant packaging supports global compliance programs, streamlining procurement and reducing added certification steps for international projects. Application: Global deployments demanding regulatory alignment and supply chain traceability.
Get a Quick Quote for a Eaton FRS-R-175
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS-R-175?
Enquire Now
FAQs
The FRS-R-175 uses blade end x blade end connections, which simplifies insertion into standard Bussmann RK5 style holders and common panel configurations. Its compact 9.63 in length and 1.6 in width fit typical distribution enclosures, reducing wiring complexity and enabling quick replacements during scheduled maintenance.
Key ratings include a 175 A amperage rating, a 200 kAIC interrupt rating at 600 Vac, and a 20 kAIC rating at 300 Vdc. It is a time-delay, dual-element, current-limiting fuse with a 10 s response time at 500% overload, making it suitable for motors and inrush-heavy circuits.
Commonly deployed in industrial control panels, motor control centers, and automation drives across manufacturing, packaging, and process industries. Its RK5 characteristics and high interrupt rating support protection for heavy electrical loads, PLC power rails, and servo drives while minimizing downtime due to nuisance trips.
The FRS-R-175 is CE marked and RoHS compliant, aligning with regional safety and environmental standards. Class RK5 provides consistent performance characteristics, ensuring predictable protection profiles and easier regulatory alignment for European and global installations.
By combining time-delay functionality with a high interrupt rating, the FRS-R-175 reduces nuisance trips during motor startups, lowering unplanned downtime. Its dual-element design and standardized RK5 form factor simplify inventory, replacements, and field service, delivering lower maintenance costs and quicker mean time to repair (MTTR) in automation environments.
