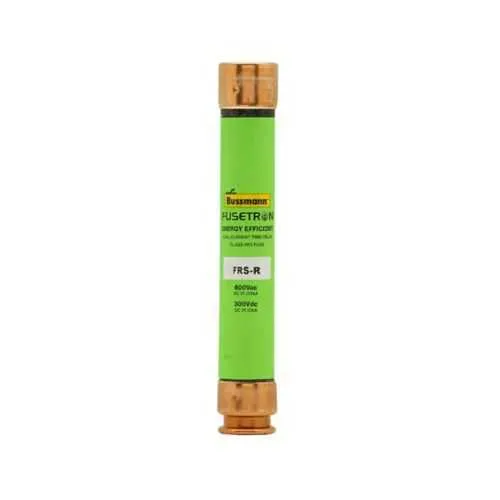

Eaton FRS-R-2-1/4 Fuse - Class RK5, 2.25 A, 600 Vac
Part Number: FRS-R-2-1/4
Quick Summary
The Eaton Bussmann FRS-R-2-1/4 fuse provides time-delay protection for industrial branch circuits. Engineers often contend with nuisance trips and space constraints in control panels. Class RK5 certification, CE marking, and a 600 Vac rating deliver safe, reliable protection across global installations. This two-element, non-indicating fuse simplifies panel design and procurement, delivering consistent performance for motor drives, transformers, and power distribution. Leveraging the Bussmann series enables easier stocking and maintenance, reducing downtime and optimizing total cost of ownership. In practice, its 2.25 A rating and 200 kA interrupt at 600 Vac handle quick overloads while preventing nuisance outages.
Product Information
Extended Description
FRS-R-2-1/4 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 2.25 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-2-1/4
UPC
051712508155
EAN
5027590426626
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.145 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
2.25 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Bussmann Full Line Catalog
Bussmann Full Line Catalog
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Time-delay, dual-element design: Enables inrush current tolerance for motor and transformer loads, reducing nuisance trips while maintaining protection. Business impact: smoother startup sequences and higher equipment uptime in automation cells; Application: motor starters and power feeds in manufacturing lines. 2.25 A current rating: Matches accurate protection for sensitive sensors and control circuits without over-tripping, lowering replacement costs and maintenance intervals. Application: instrumentation loops and PLC input protection in panel assemblies. 200 kA interrupt rating at 600 Vac: Provides robust fault current protection for critical feeders and switchgear, improving safety and reducing arc-flash risk. Business impact: enhanced system resilience and compliant fault clearing; Application: distribution blocks and feeder circuits in process automation. Ferrule end x ferrule end connections: Ensures quick, reliable installation with existing RK5 families and minimal tooling. Application: plug-and-play replacement in standard control panels. Class RK5, CE marked: Supports global manufacturing and regulatory compliance, streamlining audits and supplier qualification. Application: plants with ISO, IEC, and regional CE requirements. Non-indicating design: Reduces nuisance indicators and simplifies visual inspection in busy enclosures. Application: compact panel layouts where indicators are not required. Overall, the FRS-R-2-1/4 integrates seamlessly with Eaton Bussmann series fuses, delivering measurable outcomes in efficiency, uptime, and total cost of ownership.
