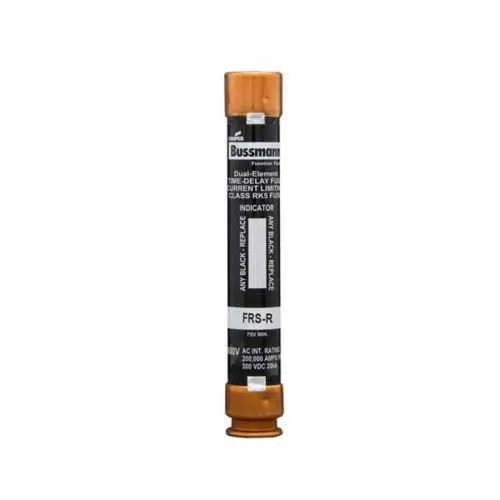

Eaton FRS-R-20ID Fuse - RK5 Class, 200 kAIC at 600 Vac
Part Number: FRS-R-20ID
Quick Summary
The Eaton FRS-R-20ID fuse is a time-delay, dual-element protective device used in industrial control panels and motor circuits. Engineers often struggle with nuisance trips during inrush and startup surges, which can halt production and complicate maintenance schedules. The device is CE marked and RoHS compliant, aligning with widely adopted regulatory standards for electrical protection. Built as a Class RK5 fuse rated for 600 Vac, it delivers current limiting with reliable interruption while staying compatible with Bussmann series components. This combination delivers improved equipment protection, easier procurement, and lower total cost of ownership in modern panel assemblies. Its 20 A rating and 5 in length support flexible panel layouts and quick swaps.
Product Information
Extended Description
FRS-R-20ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 20 A, indicating fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-20ID
UPC
051712204583
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
20 A
Interrupt rating
20 kAIC at 300 Vdc 200 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay, dual-element design provides controlled interruption and inrush tolerance. Business Impact: reduces nuisance trips and unplanned downtime, improving machine availability. Application: motor starters, conveyors, and power feeds in industrial panels. Feature: 600 Vac rating with 200 kAIC interrupt capacity at 600 Vac ensures robust fault clearing. Business Impact: protects downstream equipment from high-energy faults while maintaining safety margins. Application: heavy-duty industrial power circuits and control feeders. Feature: Ferrule end x ferrule end connections simplifies integration with RK5 enclosures. Business Impact: faster, reliable installation and easier field replacements. Application: standard Bussmann RK5 panel assemblies. Feature: Indicating capability (With Indicator) aids maintenance and fault diagnosis. Business Impact: immediate status visibility reduces troubleshooting time and improves uptime. Application: routine panel checks and scheduled maintenance. Feature: CE marked and RoHS compliant design meets regulatory expectations globally. Business Impact: minimizes compliance risk and accelerates cross-border deployments. Application: multinational manufacturing lines and OEM installations.
