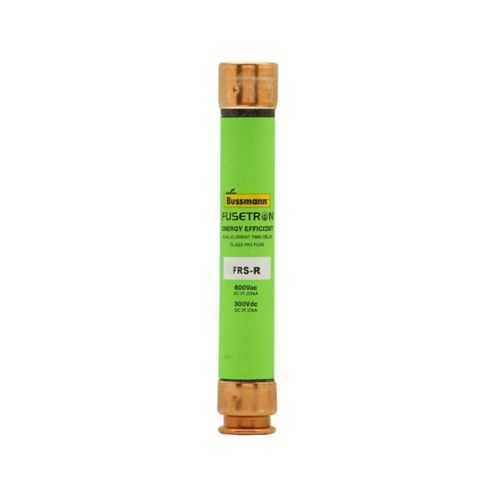

Eaton FRS-R-3-2/10 Fuse - 200 kAIC at 600 Vac
Part Number: FRS-R-3-2/10
Quick Summary
The Eaton Bussmann FRS-R fuse protects industrial power circuits with time-delay accuracy for control panels. This design helps manage inrush and transient spikes without sacrificing essential fault protection. Key standards include CE marking and the Class RK5 designation, which signal European compliance and compatibility with standard Bussmann RK5 holders. By combining reliable protection with straightforward installation, this fuse supports uptime, safer maintenance, and predictable electrical protection in modern industrial environments. For engineers seeking robust protection in a compact package, the FRS-R-3-2/10 delivers a proven balance of reliability and ease of use within electrical protection and circuit control applications.
Product Information
Extended Description
FRS-R-3-2/10 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 3.2 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-3-2/10
UPC
051712508186
Product Length/Depth
5.5 in
Product Height
1.06 in
Product Width
1.06 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
3.2 A
Interrupt rating
20 kAIC at 300 Vdc 200 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature → Time-delay, dual-element, current-limiting design provides selective protection while tolerating inrush currents, reducing nuisance trips in control panels and motor drives. Business Impact → Improves uptime and equipment life, delivering consistent protection without unnecessary outages. Application → Ideal for industrial power circuits in control panels and distribution assemblies that experience startup surges. Feature → High interrupt ratings (200 kAIC at 600 Vac; 20 kAIC at 300 Vdc) enable safe interruption of large fault currents, minimizing damage to upstream equipment. Business Impact → Lowers risk of catastrophic failures and downstream component damage in demanding environments. Application → Suitable for main feeders and branch circuits in heavy-industrial installations where fault current levels are uncertain. Feature → Class RK5 construction with ferrule-end connections and a standard packaging type. Business Impact → Ensures compatibility with common RK5 fuse holders, straightforward field replacement, and reliable wiring integrity. Application → Widely used in control cabinets and distribution panels that rely on dependable, plug-and-play protection. Feature → Time-tested 3.2 A rating with 600 Vac and 300 Vdc voltage ratings supports versatile, cross-application protection. Business Impact → Simplifies part selection across mixed AC and DC circuits, reducing spare parts inventory. Application → Motor controls, drives, and mixed-voltage panel designs that demand a single, reliable protection device. Feature → Non-indicating fuse type with ferrule terminations provides a compact, low-maintenance solution for space-constrained enclosures. Business Impact → Reduces visual indicators that can complicate assemblies; combined with external monitoring strategies, it supports streamlined maintenance. Application → Automotive, industrial automation, and panel-building scenarios where external indicators or monitoring are used.
