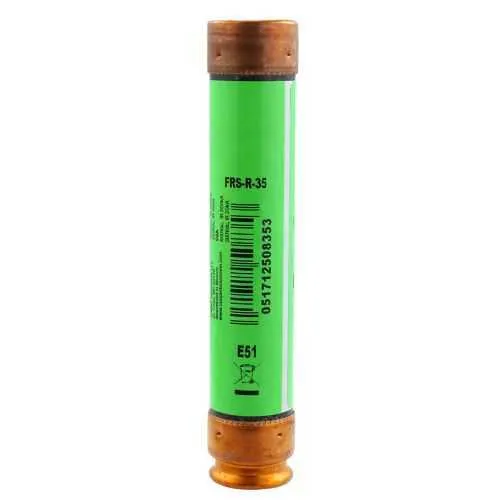

Eaton FRS-R-35 Fuse - 200 kAIC @ 600 Vac, Class RK5
Part Number: FRS-R-35
Quick Summary
Eaton FRS-R-35 fuse is a time-delay, current-limiting device designed for motor and control circuits in industrial systems. It provides reliable overload protection while accommodating brief surge currents common in starting sequences. Engineers often struggle with nuisance trips and downtime when drives or pumps start up, or when system loads change; the FRS-R-35 helps minimize those disruptions without compromising protection. The fuse is CE marked and built on the Class RK5 platform, offering consistent performance in harsh panels and cabinets. As a low voltage branch-circuit solution with ferrule-end terminations, it also supports straightforward installation and consistent replacement in retrofit projects, improving panel reliability and maintenance planning.
Product Information
Extended Description
FRS-R-35 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 35 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 250 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-35
UPC
051712508353
Product Length/Depth
5.5 in
Product Height
1.6 in
Product Width
1.6 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
35 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 250 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 250 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay, dual-element design. Business Impact: This configuration tolerates short surges during motor start-up and protects conductors without sacrificing timely disconnection during sustained faults. Application: Ideal for motor starters, drives, and other high-inertia loads in automation panels. Feature: Class RK5 architecture with ferrule-end terminations. Business Impact: Provides reliable protection in compact spaces and simplifies field installation, stocking, and replacements. Application: Fits standard Bussmann RK5 housings in control cabinets and switchgear. Feature: 35 A amperage rating with 200 kAIC interrupt rating at 600 Vac and 20 kAIC at 250 Vdc. Business Impact: Delivers robust short-circuit protection for high-current circuits while minimizing conductor damage and downtime. Application: Panels, motor control centers, and safety circuits within industrial facilities. Feature: Non-indicating fuse with ferrule-end connections. Business Impact: Reduces visual inspection complexity and enables quick, reliable replacements in service schedules. Application: Retrofit projects and new-panel builds using standard Bussmann RK5 components. Feature: CE Marked compliance and broad compatibility with low-voltage fuse families. Business Impact: Supports regulatory compliance, vendor qualification, and audit readiness. Application: Electrical protection schemes across manufacturing lines and automation equipment. Feature: Ferrule end x ferrule end connection with standard packaging. Business Impact: Ensures consistent connectivity and straightforward installation, minimizing contact resistance and failure points. Application: New installations and panel upgrades in machine centers and process lines.
Get a Quick Quote for a Eaton FRS-R-35
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS-R-35?
Enquire Now
FAQs
The FRS-R-35 uses ferrule-end x ferrule-end connections, which simplifies mounting in standard RK5 slots. To install, align the ferrules with existing busbars or fuse clips, tighten the end caps to the recommended torque, and verify continuity with a wiring diagram. This minimizes downtime during retrofits and ensures reliable fault isolation.
Key specs include a 35 A amperage rating, 200 kAIC interrupt rating at 600 Vac, 20 kAIC at 250 Vdc, and a time-delay (dual-element) design. These enable safe interruption during short-circuit events while tolerating motor inrush, reducing nuisance trips and protecting conductors and drives.
Yes. The FRS-R-35 is built on the Class RK5 platform with ferrule-end terminations, CE marking, and a 35 A rating, making it compatible with common RK5 fusing schemes in automation panels, MCCs, and drive protection architectures. Its dual-element design adds resilience against startup surges in automation equipment.
The FRS-R-35 is CE marked, indicating compliance with European safety and compatibility standards. This supports regulatory reviews, product approvals, and audits in facilities that require CE-certified protection devices within low-voltage electrical systems.
Investing in the FRS-R-35 yields reduced downtime from fewer nuisance trips, improved panel reliability through robust current-limiting protection, and easier maintenance with standard RK5 components. The 35 A rating paired with a high 200 kAIC interrupt capacity helps protect critical loads while enabling faster fault isolation and simpler stocking.
