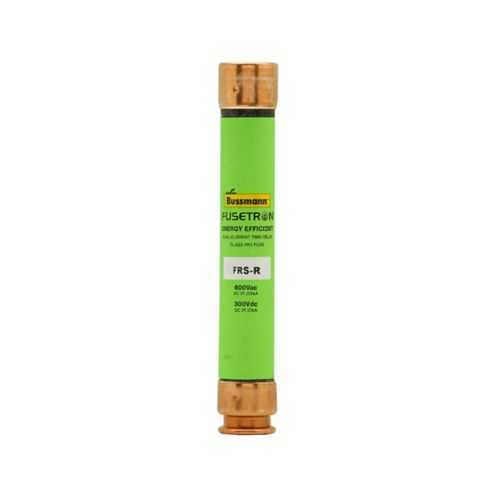

Eaton FRS-R-4 Fuse - RK5 Class, 200 kAIC
Part Number: FRS-R-4
Quick Summary
The Eaton FRS-R-4 fuse is a time-delay, dual-element RK5 class fuse designed for protecting industrial power circuits. Engineers often wrestle with balancing fast fault isolation against nuisance trips in demanding control panels; this fuse helps minimize downtime while preserving protection. CE marking confirms global compliance, and Eaton provides clear documentation with data sheets to verify performance; RoHS information can be accessed through Eaton's RoHS tool for additional clarity. This compact, ferrule-ended device integrates into standard panel designs, delivering reliability, ease of sourcing, and predictable maintenance planning for modern electrical protection schemes.
Product Information
Extended Description
FRS-R-4 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 4 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-4
UPC
051712508209
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.13 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
4 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
