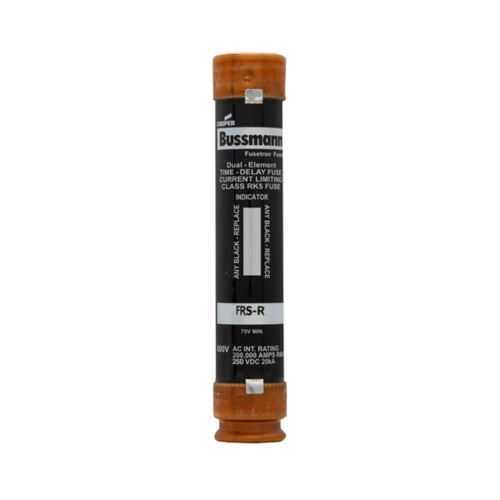

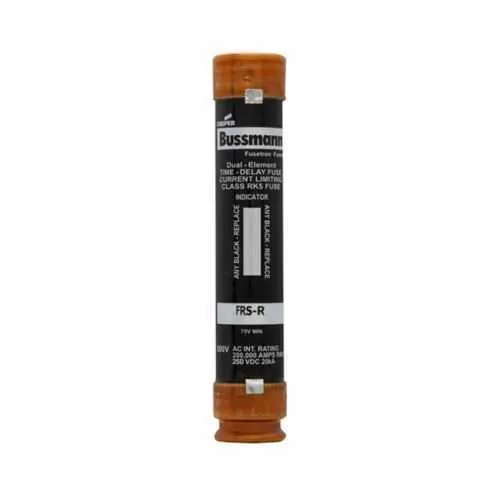

Eaton FRS-R-40ID Fuse - Class RK5, 40 A, 600 Vac
Part Number: FRS-R-40ID
Quick Summary
The Eaton FRS-R-40ID fuse provides time-delay protection for industrial control circuits. Nuisance transients and unexpected outages can drive costly downtime, but proper fusing helps keep critical equipment online. As part of the Bussmann Series RK5, it carries CE marking and a 200 kAIC interrupt rating at 600 Vac, with a 40 A rating. For panel builders and OEMs, the ferrule-end connection and indicator option support faster installation and safer maintenance, improving uptime and reliability. This fuse integrates with industrial electrical protection strategies and aligns with standard control-panel practices, delivering dependable protection in demanding environments.
Product Information
Extended Description
FRS-R-40ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 40 A, indicating fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-40ID
UPC
051712204620
Product Length/Depth
5.5 in
Product Height
1.6 in
Product Width
1.6 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
40 A
Interrupt rating
20 kAIC at 250 Vdc 200 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 250 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Time-delay, dual-element design delivers extended protection during transient surges while limiting damage from brief overcurrents. This reduces nuisance trips in motors and high-inertia loads, lowering maintenance costs and downtime in industrial panels and machine control applications. The 40 A rating paired with a 200 kAIC interrupt rating at 600 Vac provides robust circuit protection for high-energy lines, enabling safer shutdowns and easier fault isolation in assembly lines and processing equipment. Ferrule-end connections simplify installation with standard wiring practices, boosting installation speed while reducing wiring errors in control cabinets. The optional fuse indicator enhances maintenance efficiency by signaling when replacement is due, which minimizes unscheduled outages and helps technicians plan corrective actions. CE Marking and RK5 class certification support regulatory compliance and selective coordination across multiple zones in complex power distributions. With a compact 5.5 in length and a 1.6 in width, it fits a wide range of industrial panels without redesigns, and its Bussmann-series lineage aligns with existing protection strategies, delivering reliable, predictable protection for automation systems and legacy equipment.
Get a Quick Quote for a Eaton FRS-R-40ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS-R-40ID?
Enquire Now
FAQs
Install as a ferrule-end fuse in standard control panels. The 5.5 in length and 1.6 in width fit common enclosure spaces, and the ferrule-end x ferrule-end connection simplifies wiring while ensuring secure electrical contact.
It is a 40 A time-delay, dual-element, current-limiting fuse with a 200 kAIC interrupt rating at 600 Vac and a rapid 10-second response at 500% overload, suitable for circuits that experience brief surges.
Yes. The device is CE marked, belongs to the RK5 class, and is designed for safe use in industrial panels and power distribution networks while meeting common regulatory requirements.
The FRS-R-40ID is part of the Bussmann RK5 family, offering class RK5 coordination, indicator options, and standard ferrule terminations that align with existing Bussmann-series protection strategies in control cabinets.
The optional fuse indicator speeds fault diagnosis, reducing downtime. Time-delay protection minimizes nuisance trips, improving uptime, machine availability, and total cost of ownership in automated facilities.
