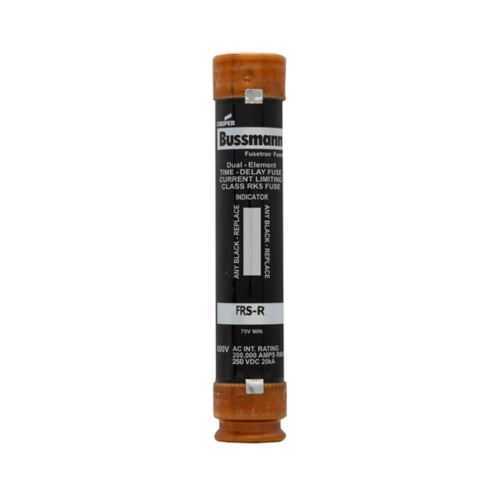

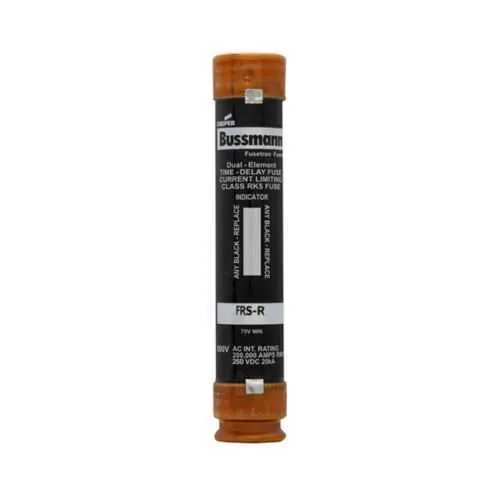

Eaton FRS-R-50ID Fuse - RK5 Class, 50A, 200 kAIC
Part Number: FRS-R-50ID
Quick Summary
Eaton FRS-R-50ID fuse protects electrical distribution circuits in industrial equipment. This time-delay, dual-element device helps manage motor starts and surge events without sacrificing protection. It is CE marked and built to the RK5 class standard, offering a 200 kAIC interrupt rating at 600 Vac. Its ferrule-end connections and compact 5.5 in length simplify panel mounting and serviceability. For engineering teams focused on uptime and regulatory compliance, this fuse delivers reliable protection, straightforward installation, and long-term cost efficiency for control panels and power distribution networks.
Product Information
Extended Description
FRS-R-50ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 50 A, indicating fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-50ID
UPC
051712204651
Product Length/Depth
5.5 in
Product Height
1.6 in
Product Width
1.6 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
50 A
Interrupt rating
20 kAIC at 250 Vdc 200 kAIC at 600 Vac
Response time
10 sec at 500%
Voltage rating
600 Vac, 250 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating With Indicator
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay, dual-element design provides selective protection for motors and power circuits, preventing nuisance trips during startup while maintaining fast fault response when faults occur. Business Impact: Improves equipment uptime and reduces maintenance costs in automated lines and packaging facilities where motors experience startup inrush. Application: Motor control centers and automated systems. Feature: Current-limiting RK5 class protection confines fault energy to downstream devices, enabling easier coordination and longer downstream component life. Business Impact: Extended equipment life and safer fault energy management, reducing downstream damage and maintenance. Application: Industrial power distribution and control panels. Feature: Ferrule-end x ferrule-end connections simplify retrofit and field installation with standard hardware. Business Impact: Faster commissioning and reduced field labor. Application: Panel upgrades and new installations. Feature: 600 Vac / 250 Vdc rating with CE marking ensures broad compatibility and regulatory compliance. Business Impact: Streamlined certification processes and safer, compliant deployments. Application: Heavy-industrial electrical systems and control circuits. Feature: Time-delay response with 10 seconds at 500% overload provides reliable protection without nuisance trips in start-up conditions. Business Impact: Predictable protection and reduced unplanned downtime. Application: Motors, conveyors, and automation equipment.
Get a Quick Quote for a Eaton FRS-R-50ID
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS-R-50ID?
Enquire Now
FAQs
Install the ferrule-end fuse into a compatible fuse block designed for RK5 Class devices. Ensure electrical ratings match your system (600 Vac, 50 A). Align the ferrule ends with the block terminals and secure with standard mounting hardware. Confirm the 5.5 in length fits your enclosure space before replacement.
The FRS-R-50ID has an interrupt rating of 200 kAIC at 600 Vac, providing robust fault current clearing for industrial power distributions and motor circuits.
Yes, it is a time-delay dual-element fuse. This design tolerates motor inrush and startup surges while still providing rapid protection against sustained faults, reducing nuisance trips and improving uptime in automation equipment.
The fuse measures 5.5 inches in length with a width and height of 1.6 inches. It uses ferrule-end connections on both ends for straightforward installation in standard fuse blocks and control panels.
Yes. The FRS-R-50ID is CE marked and conforms to the RK5 Class specification, aligning with common European safety standards and industry practices for industrial protection fuses.
