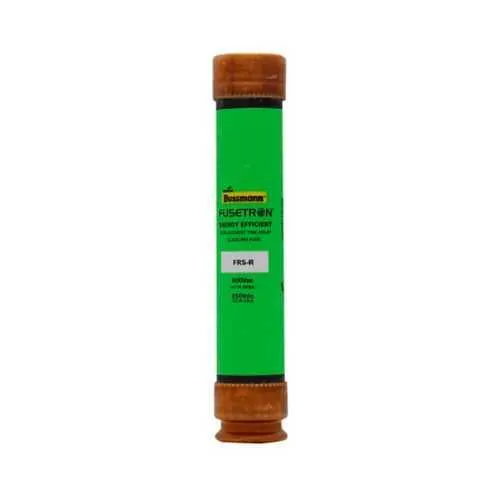

Eaton FRS-R-60 Fuse - Class RK5, 60 A, 200 kAIC
Part Number: FRS-R-60
Quick Summary
Eaton FRS-R-60 fuse is a time-delay, dual-element protection device for control panels and industrial machinery. In fast-paced environments, selecting the wrong fuse leads to nuisance trips, unplanned downtime, and costly rework. This CE-marked Class RK5 fuse offers RoHS-compliant design considerations and a 600 Vac / 250 Vdc rating, supporting diverse power networks. With ferrule-end connections and a non-indicating indicator, it delivers reliable protection while simplifying installation and maintenance in automation and electrical protection applications.
Product Information
Extended Description
FRS-R-60 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 60 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 250 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-60
UPC
051712508391
Product Length/Depth
5.5 in
Product Height
1.6 in
Product Width
1.6 in
Product Weight
0.305 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
60 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 250 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 250 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature → Business Impact → Application: Time-delay, dual-element design provides reliable fault tolerance and selective coordination, reducing nuisance trips and improving uptime on motor loads and drives. This translates to measurable efficiency gains and lower maintenance costs in manufacturing lines and process control systems. Feature → Business Impact → Application: Class RK5 classification with ferrule-end terminations enables fast, secure installations that resist vibration and wiring faults in panel assemblies, boosting installation confidence and repeatability in large-scale automation projects. Feature → Business Impact → Application: 60 A rating with 600 Vac / 250 Vdc capability covers both AC and DC segments common in modern control panels, enabling a single protective device to span mixed loads and reducing part variety. Feature → Business Impact → Application: High interrupt ratings (200 kAIC at 600 Vac; 20 kAIC at 250 Vdc) support fast fault clearance in high-current environments, mitigating arc energy and improving system safety. Feature → Business Impact → Application: Non-indicating fuse design minimizes maintenance interruptions by avoiding visual indicators, while the robust RK5 fuse body supports long service life in industrial environments. Feature → Business Impact → Application: Comprehensive documentation and compatibility with Bussmann series catalogs streamline sourcing, stocking, and cross-reference for procurement teams in electrical protection programs.
Get a Quick Quote for a Eaton FRS-R-60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS-R-60?
Enquire Now
FAQs
Install with ferrule-end terminations in standard fuse holders designed for Class RK5 devices. The 5.5 in length and 1.6 in cross-section fit typical control panel spaces, and the non-indicating design means you should rely on upstream indicators or instrumentation to determine fuse status. Ensure compatible panel cutouts and torque specs are observed to maintain optimal contact integrity.
The FRS-R-60 is rated for 60 A with voltage ratings of 600 Vac and 250 Vdc. It provides an interrupt rating of 200 kAIC at 600 Vac and 20 kAIC at 250 Vdc. Its response time is specified as 10 seconds at 500% overload, making it suitable for slow-blow protection in inrush-heavy circuits.
Yes. The device is CE marked, aligning with European safety requirements. RoHS compliance is supported through Eaton’s RoHS verification tools, ensuring restricted substances are within limits for electronic equipment used in automation environments.
Best suited for control panels, motor protection, and power distribution where controlled inrush and short-circuit protection are needed. The dual-element design and RK5 class enable reliable protection for mixed AC and DC loads in factory automation, process equipment, and packaging machinery.
The non-indicating fuse reduces nuisance status checks, while high interrupt ratings and robust construction support longer service life in demanding environments. The ferrule-end connections simplify field installation and replacement, enabling faster maintenance cycles and improved uptime for critical automation assets.
