Eaton FRS-R-7 Fuse - 200 kAIC at 600 Vac
Part Number: FRS-R-7
Quick Summary
The Eaton Bussmann series FRS-R fuse protects electrical circuits with time-delay, dual-element accuracy for motor drives and control panels. Engineers often battle nuisance trips and inconsistent protection, which drives downtime and maintenance costs. This part offers CE Marked compliance, Class RK5 designation, and voltage ratings of 600 Vac / 300 Vdc with a 200 kAIC interrupt at 600 Vac. Its ferrule-end connections and compact 5 in length simplify installation in standard panels while delivering reliable current limiting. Combined, these attributes reduce downtime, extend component life, and improve return on investment for automation projects. This makes it a practical choice for motor control, power distribution, and control circuits across manufacturing and process environments.
Product Information
Extended Description
FRS-R-7 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 7 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name

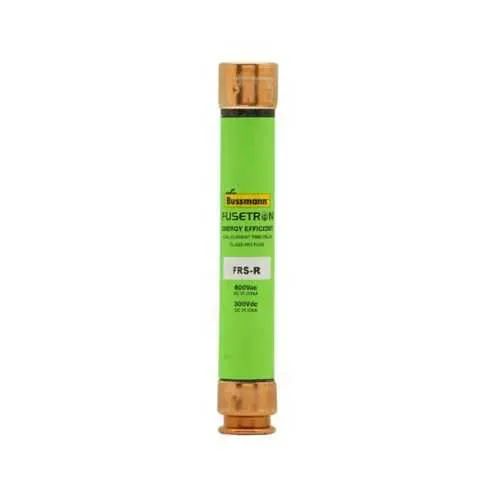

Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-7
UPC
051712508254
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.127 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
7 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay, dual-element design → Business Impact: Reduces nuisance trips during motor startups and protects sensitive circuits without immediate disconnection → Application: Motor control centers and automation panels in manufacturing environments. Feature: High interrupt rating of 200 kAIC at 600 Vac (and 20 kAIC at 300 Vdc) → Business Impact: Withstands severe short-circuit events, minimizing upstream damage and downtime → Application: feeders, power distribution panels, and high-load machinery feeds in process plants. Feature: Class RK5, current-limiting dual-element construction → Business Impact: Provides selective coordination and fast fault current limitation, improving system reliability and safety → Application: control cabinets and machine interfaces requiring robust protection without nuisance outages. Feature: Ferrule-end x ferrule-end connection and 5 in length → Business Impact: Easy, tool-friendly installation with broad compatibility in retrofit and new builds → Application: panel retrofits and compact control enclosures where space is constrained. Feature: CE Marked compliance and non-indicating fuse design → Business Impact: Simplifies regulatory approvals and reduces maintenance costs from indicator misreads → Application: industrial automation projects emphasizing compliance and long-term reliability.
