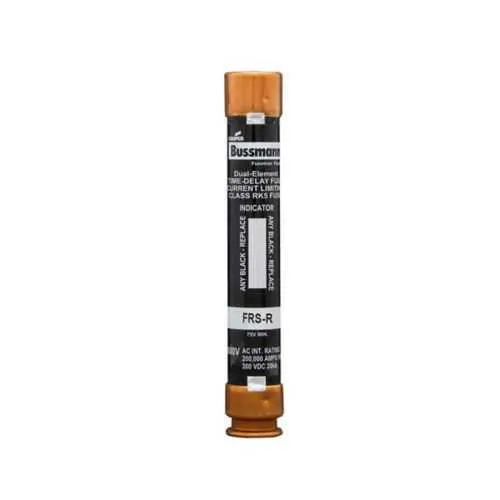

Eaton FRS-R-7-1/2ID Fuse - Class RK5 7.5A 600V
Part Number: FRS-R-7-1/2ID
Quick Summary
The Eaton FRS-R-7-1/2ID fuse provides reliable time-delay protection for motor and control circuits in industrial panels and distribution systems. Designed to withstand inrush and transient faults while isolating faults quickly, it helps reduce nuisance trips and unplanned downtime. This RK5 class fuse features dual-element construction with current limiting action, delivering 7.5 A at up to 600 Vac and fast clearing at fault levels. With a 200 kAIC interrupt rating, it is well-suited for high-energy systems and switchgear. The CE-marked device supports standard electrical protection practices and aligns with common panel build requirements. In practice, selecting this fuse supports compliance, improves safety, and reduces maintenance costs for power protection and energy management initiatives.
Product Information
Extended Description
FRS-R-7-1/2ID Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 7.5 A, indicating fuse, interrupting rating of 200 kA at 600 Vac
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-7-1/2ID
UPC
051712204514
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.1 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
7.5 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Fuse indicator
Non-indicating With Indicator
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay dual-element design provides selective protection for motor starting and transient faults. Benefit: Reduces nuisance trips and extends motor life while maintaining quick fault clearance. Application: Ideal for motor starters and drive circuits where inrush is common, improving uptime and energy efficiency. Feature: 200 kAIC interrupt rating at 600 Vac delivers robust fault clearing for high-energy systems. Benefit: Enhances system safety and protects upstream equipment in switchgear assemblies. Application: Feeder protection and main circuit protection in industrial plants. Feature: 7.5 A amperage rating with 600 Vac/300 Vdc voltage capability. Benefit: Precise protection for mid-range loads and cross-compatibility with mixed AC/DC environments. Application: Control panels and MCCs with mixed voltage supplies. Feature: Class RK5 designation and compact 5 in length, 0.81 in width and height. Benefit: Easy replacement in standard Bussmann RK5 holders, reducing retrofit time. Application: Panel upgrades and spare parts kits. Feature: Fuse indicator option (with indicator) enhances diagnostics. Benefit: Quick fault identification during maintenance, decreasing mean time to repair. Application: Field service and preventative maintenance programs.
