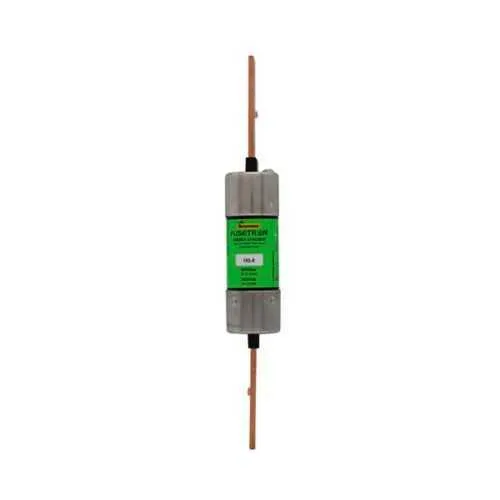

Eaton FRS-R-75 Fuse - Class RK5, 200 kAIC at 600 Vac
Part Number: FRS-R-75
Quick Summary
Eaton Bussmann FRS-R-75 fuse is a time-delay, dual-element protection device for industrial control and motor circuits. In many panels, nuisance trips and slow fault isolation challenge maintenance and uptime, driving cost and risk. It is CE marked and RoHS compliant, aligning with European safety requirements and sustainability initiatives. By delivering reliable protection in a compact RK5 package with a 75 A rating, the FRS-R-75 supports high fault current scenarios while minimizing unplanned downtime. This combination of safety compliance and robust electrical performance translates to lower total cost of ownership and steadier production runs for your facility.
Product Information
Extended Description
FRS-R-75 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 75 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-75
UPC
051712508599
Product Length/Depth
7.88 in
Product Height
1.11 in
Product Width
1.11 in
Product Weight
0.35 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
75 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Blade end x blade end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R 65-600 A fuse data sheet no. 1018
