Eaton FRS-R-9 Fuse - Class RK5, 200 kAIC CE Marked
Part Number: FRS-R-9
Quick Summary
Eaton FRS-R-9 fuse provides time-delay, dual-element overcurrent protection for electrical distributions and motor circuits. Nuisance tripping and slow response on mixed loads often disrupt production and complicate protection coordination. As part of the CE-marked RK5 family, the device aligns with European safety requirements and RoHS considerations, while offering reliable protection in a compact form factor. For panel builders and OEMs, the 5 in length and ferrule-end termination simplify installation and serviceability. With a 9 A rating and high interrupt capabilities, it supports safe, durable operation in industrial control applications.
Product Information
Extended Description

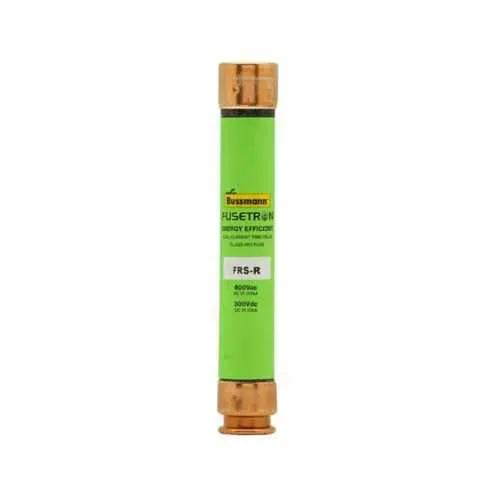

FRS-R-9 Eaton: Eaton Bussmann Series Class RK5 fuse, FRS-R, time-delay, dual-element, current limiting fuse, 9 A, non-indicating fuse, interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc
Product Name
Eaton Bussmann series FRS-R fuse
Catalog Number
FRS-R-9
UPC
051712508278
Product Length/Depth
5 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.15 lb
Warranty
Not Applicable
Compliances
CE Marked
Amperage Rating
9 A
Interrupt rating
200 kAIC at 600 Vac 20 kAIC at 300 Vdc
Response time
10 sec at 500%
Voltage rating
600 Vac, 300 Vdc
Number of elements
Dual
Packaging type
Standard
Class
Class RK5
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Low Voltage Branch Circuit Fuse Chapter
Low Voltage Branch Circuit Fuse Chapter
RoHS Search Tool
Bussmann series Fuseology
Bussmann series FRS-R 600 V Class R up to 60 A fuse data sheet no. 1017
Feature: Time-delay, dual-element, current-limiting design; Business Impact: Allows inrush tolerance and selective fault clearing, reducing outages and protecting conductors during startup surges; Application: motor starters, conveyor drives, and PLC power rails, with keywords like time-delay fuse for motor protection and dual-element current-limiting RK5 usage. Paragraph two highlights Class RK5 compatibility and 9 A rating, enabling broad AC/DC compatibility in control panels and machine feeds, addressing installation lead times. Paragraph three emphasizes an interrupt rating of 200 kAIC at 600 Vac, meaning robust fault handling in high-energy environments and safer shutdown sequences for panel boards. Paragraph four describes ferrule end x ferrule end connections in a compact 5 in package; the non-indicating design simplifies diagnostics in crowded enclosures and speeds field replacement. Paragraph five notes CE marking and RoHS considerations, helping ensure regulatory compliance during procurement and reducing vendor risk in European projects.
