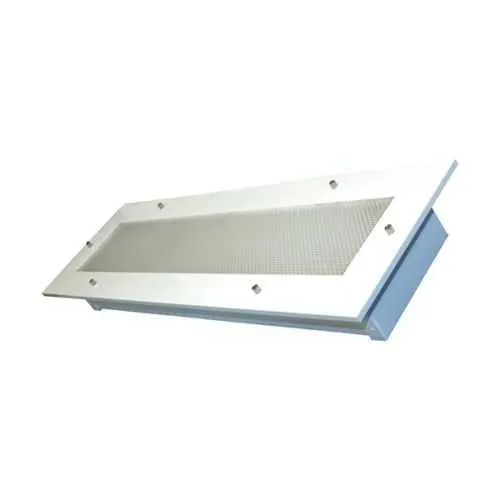

Eaton FRS217J Marine Interior Light - Ordinary/Non-Hazardous Locations
Part Number: FRS217J
Quick Summary
FRS217J marine interior lighting from Eaton provides efficient recessed ceiling illumination for vessels and offshore platforms. Engineers often contend with tight spaces and corrosion exposure on board; this luminaire’s compact profile and aluminum housing help minimize maintenance and downtime. It complies with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, supporting safe, code-compliant operation in most shipboard interiors. With 17 watts across two lamps and a 2‑ft lamp length at 120–277 VAC and 50/60 Hz, the FRS217J delivers reliable light while helping reduce energy use and replacement costs. Its recessed ceiling mount and durable construction also support clean, ship-ready interiors and straightforward retrofit or new-build installation.
Product Information
Extended Description
FRS217J Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRS marine interior, 50/60 Hz, 2 ft, Acrylic lens, T8, Aluminum, Recessed ceiling mount, 2-lamp, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRS marine interior
Catalog Number
FRS217J
UPC
662276397224
Product Length/Depth
29.13 in
Product Height
3.94 in
Product Width
9.13 in
Product Weight
8 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 ft
Light type
T8
Number of lamps
2-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Aluminum
Lens material
Acrylic
Eaton Crouse-Hinds FRS217J 3D drawing
Crouse-Hinds series FRS Marine Interior Recessed Lights catalog page
Eaton Specification Sheet - FRS217J
Feature: 2-lamp, 17W, 2 ft lamp length. Business impact: Energy-efficient illumination that lowers operating costs while maintaining bright, shipboard-grade light. Application: Cabins, corridors, and galleys on vessels where space is at a premium. Feature: Recessed ceiling mounting. Business impact: Low-profile design minimizes silhouette and snag hazards, enabling safer, more aesthetic interior layouts on boats and offshore platforms. Application: Overhead lighting in tight vessel interiors where headroom is limited. Feature: Aluminum housing with acrylic lens. Business impact: Corrosion resistance and impact durability reduce maintenance cycles and replacement costs in harsh marine environments. Application: Marine interior luminaire exposure to salt air and routine vibrations. Feature: Wide voltage range 120–277 VAC and 50/60 Hz. Business impact: Flexible installation across fleets and international builds without separate transformers. Application: Global shipbuilding projects and mixed-power vessels. Feature: Area classification Ordinary/Non-Hazardous Locations and NEC/CEC compliance. Business impact: Regulatory alignment minimizes risk, speeding procurement and commissioning. Application: Standard crew areas and non-hazardous shipboard spaces requiring formal standards conformance. Feature: Compact footprint and lightweight design (29.13 in L × 9.13 in W × 3.94 in H; 8 lb). Business impact: Easier retrofit in retrofit corridors and slim ceilings, reducing installation time and structural adjustments. Application: Vessel interiors where headroom and weight are critical considerations.
Get a Quick Quote for a Eaton FRS217J
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS217J?
Enquire Now
FAQs
FRS217J uses a recessed ceiling mounting method designed to integrate with standard 2 ft T8 luminaire footprints. The overall housing measures 29.13 in long, 9.13 in wide, and 3.94 in high, with an 8 lb weight, enabling a clean, low-profile installation in typical shipboard ceilings. Verify cutout dimensions against the ceiling structure and ensure the chosen location allows for the 120–277 VAC supply and access for service.
FRS217J operates on 120–277 VAC with a 50/60 Hz frequency rating and uses a 2-lamp, 17W T8 configuration. The acrylic lens and aluminum housing are designed for marine interiors, delivering reliable lighting performance across a broad voltage range without requiring special transformers or adaptors.
Yes. The fixture is designed for marine interiors and is classified for Ordinary/Non-Hazardous Locations. It adheres to NEC/CEC standards, making it appropriate for cabins, corridors, and other non-hazardous areas on ships and offshore platforms where durable, code-compliant lighting is required.
FRS217J is certified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. These classifications support safe operation in typical shipboard interior spaces and align with common maritime regulatory expectations, avoiding need for additional hazardous-location adaptations in standard interiors.
The 2-lamp, 17W design provides energy efficiency and potential maintenance savings over higher-wattage fixtures. Aluminum housing and acrylic lens offer durability against marine corrosion, reducing replacement frequency. The recessed mount simplifies installation and minimizes ballast or trim-woss replacements, contributing to lower lifecycle costs on vessel fleets.
