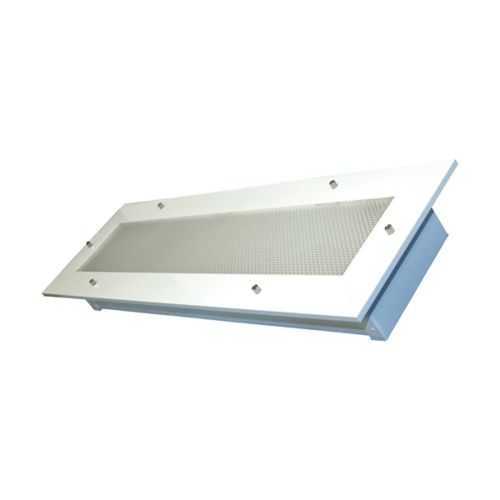

Eaton FRS232J Marine Interior Light - NEC/CEC & 2-lamp
Part Number: FRS232J
Quick Summary
FRS232J is a marine interior lighting fixture designed for recessed ceiling installations on vessels. Engineers often struggle with reliable operation across 120–277 VAC in tight ceiling cavities while meeting harsh maritime standards. This unit complies with NEC/CEC standards and is suitable for ordinary/non-hazardous locations, with an aluminum housing and acrylic lens that resist corrosion. By pairing a 4 ft, two-lamp 32W design with easy installation and common mounting, it supports cost-efficient, scalable fleet lighting and simpler maintenance. Compact, energy-efficient and robust, it helps reduce downtime on shipboard systems and supports compliance during audits.
Product Information
Extended Description
FRS232J Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FRS marine interior, 50/60 Hz, 4 ft, Acrylic lens, T8, Aluminum, Recessed ceiling mount, 2-lamp, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FRS marine interior
Catalog Number
FRS232J
UPC
662276397248
Product Length/Depth
53.13 in
Product Height
3.94 in
Product Width
14.25 in
Product Weight
12 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
4 ft
Light type
T8
Number of lamps
2-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Aluminum
Lens material
Acrylic
Eaton Crouse-Hinds FRS232J 3D drawing
Crouse-Hinds series FRS Marine Interior Recessed Lights catalog page
Eaton Specification Sheet - FRS232J
The aluminum housing and acrylic lens deliver robust corrosion resistance, extending service life in salt-laden marine environments and reducing maintenance costs over time. This translates to fewer replacements, lower downtime, and greater fleet-uptime for critical operations. The 120–277 VAC, 50/60 Hz compatibility provides flexible power integration across international fleets, delivering predictable performance without the need for costly transformers. A 32W total draw across two lamps delivers greater energy efficiency and lower operating costs compared with older 4 ft fixtures. The recessed ceiling mounting offers a clean, low-profile aesthetic that simplifies installation in tight compartment ceilings and distributes light evenly across work areas. Compliance with NEC/CEC standards and Ordinary/Non-Hazardous Location classification minimizes regulatory risk and eases commissioning during audits. The 4 ft, two-lamp configuration supports scalable lighting layouts for large engine rooms or accommodation areas while maintaining consistent illumination quality. Downstream benefits include easy access to data sheets, 3D models, and catalogs for rapid procurement and maintenance planning, reducing lead times and simplifying asset management.
Get a Quick Quote for a Eaton FRS232J
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FRS232J?
Enquire Now
FAQs
The FRS232J supports 120-277 VAC with a 50/60 Hz frequency, allowing flexible installation across international fleets. It draws 32W across its two T8 lamps, delivering a compact yet bright solution for marine interiors. This range ensures compatibility with standard shipboard electrical systems and simplifies integration with existing power infrastructure.
Yes. The FRS232J is designed for recessed ceiling mounting, offering a low-profile installation that fits typical vessel ceilings. Its 53.13 inch product length accommodates long, continuous runs where needed, while the aluminum housing and acrylic lens maintain durability in marine environments. The recessed style also provides improved glare control and a tidy aesthetic for engine rooms and accommodation spaces.
Absolutely. The FRS232J conforms to NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations. This makes it a reliable choice for standard interior spaces on vessels, reducing compliance risk during audits and simplifying the approval process for fleet lighting upgrades.
Key specifications include a 4 ft lamp length, two-lamp configuration, 32W total power, 120-277 VAC operation at 50/60 Hz, aluminum housing, and an acrylic lens. The fixture is designed for recessed ceiling installation and uses a T8 lamp type. Overall dimensions place it at 53.13 in in length, with a weight around 12 lb, suitable for mid to large interior spaces.
Eaton provides a range of resources, including a 3D CAD drawing package, a Crouse-Hinds FRS30 interior catalog page, and an official specification sheet for the FRS232J. Access to these assets aids in accurate mounting planning, part identification, and seamless procurement for shipboard projects.
