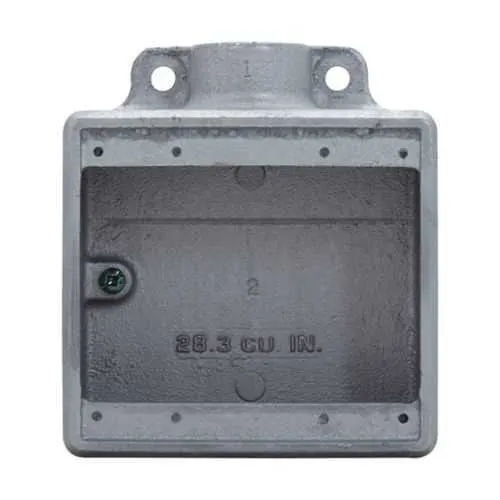

Eaton FS22 Condulet FS Device Box - NEC/CEC
Part Number: FS22
Quick Summary
Eaton FS22 Condulet FS Device Box protects 3/4-inch conduit terminations in two-gang enclosures for industrial control panels. Engineers often face space constraints, corrosion risks, and non-compliant enclosures in harsh environments; this box is designed to mitigate those challenges with a compact profile and durable materials. It is certified for NEC/CEC compliance and suitable for Ordinary/Non-Hazardous Locations, helping projects stay code-compliant. By integrating with the Condulet FS family, it offers installation efficiency, predictable fit, and long-term durability that reduce rework and maintenance costs. For systems needing robust, code-ready terminations, the FS22 delivers both reliability and value.
Product Information
Extended Description
FS22 Eaton: Eaton Crouse-Hinds series Condulet FS device box, Shallow, Feraloy iron alloy, Two-gang, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet FS device box
Catalog Number
FS22
UPC
782274406602
Product Length/Depth
4.19 in
Product Height
5.19 in
Product Width
1.88 in
Product Weight
2.92 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Shallow
Number of gangs
2
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
Eaton Specification Sheet - FS22
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Feraloy iron alloy construction provides superior strength and corrosion resistance in metallic enclosures. Business Impact: Extends service life in demanding environments, lowering replacement costs and downtime. Application: Ideal for two-gang surface-mounted or recessed termination points in control panels. Feature: Two-gang shallow design with 4.19 in depth, 5.19 in height, and 1.88 in width. Business Impact: Maximizes available panel space and simplifies routing of conductors in compact installations. Application: Suitable for tight electrical enclosures in machinery housings and cabinet interiors. Feature: 3/4" trade size and standard Condulet FS compatibility. Business Impact: Streamlines parts selection and reduces install time by using familiar mounting and fittings. Application: Seamless integration with FS family boxes and covers for quick upgrades. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous Location rating. Business Impact: Ensures regulatory adherence and safer installations, minimizing compliance risk and rework. Application: Ideal for commercial and light-industrial applications where non-hazardous environments apply. Feature: Weight 2.92 lb and robust mounting compatibility. Business Impact: Improves on-site handling and reduces field adjustments, driving faster commissioning. Application: Efficient for field service teams installing multiple FS boxes across a control panel array. Insight: Leveraging Eaton’s Condulet FS lineage supports standardized installation practices across projects, reducing training time for technicians and improving overall project predictability.
Get a Quick Quote for a Eaton FS22
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FS22?
Enquire Now
FAQs
The FS22 is a two-gang, shallow Condulet FS device box designed for 3/4" trade size terminations. It uses a Feraloy iron alloy body, offering robust durability in ordinary/non-hazardous locations. Plan for compatible FS family covers and fittings, ensure proper mounting within the enclosure, and verify that the panel layout accommodates the box dimensions (4.19 in depth, 5.19 in height, 1.88 in width). Consider NEC/CEC requirements during assembly and grounding to maintain compliance and reliability in your control panel assembly.
FS22 is certified for Ordinary/Non-Hazardous Locations, aligning with NEC/CEC standards. This makes it suitable for typical industrial control environments where there is no special hazardous location rating. The feraloy iron alloy construction provides durability against incidental impacts and moisture exposure common in general manufacturing settings, helping to minimize maintenance and downtime while preserving enclosure integrity.
FS22 carries NEC/CEC standards compliance and is rated for Ordinary/Non-Hazardous Locations. This ensures the device box meets typical electrical codes for commercial and light-industrial installations, supporting safe terminations and proper enclosure protection within standard control panels.
Yes. FS22 is part of Eaton’s Crouse-Hinds Condulet FS family and is designed to be used with FS/F D series boxes and corresponding covers. This compatibility streamlines installation, reduces mis-matches, and enables consistent mounting patterns across the Condulet FS ecosystem, delivering faster project execution and easier spares management.
The FS22 reduces field rework by providing a durable, code-compliant housing that fits standard 3/4" terminations. Its robust ferraloy iron alloy construction lowers the risk of corrosion and physical damage, cutting replacement and maintenance costs over time. Compatibility with existing FS components speeds up installation, shortening project timelines and delivering lower total cost of ownership for panel builds.
