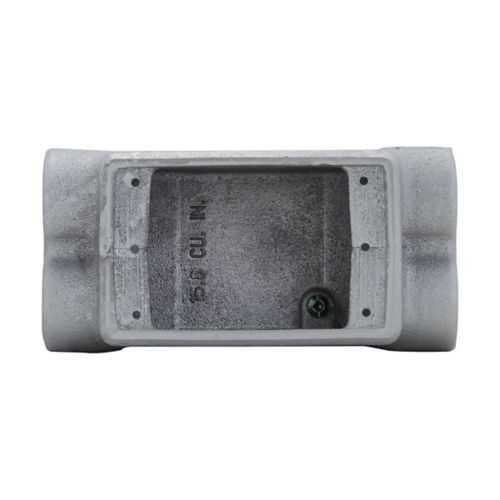

Eaton FSCD2 Condulet FSC Device Box - NEC/CEC
Part Number: FSCD2
Quick Summary
Eaton FSCD2 Condulet FSC device box provides rugged, single-gang conduit junctions for control panels. When space is at a premium, this shallow, D-shaped box keeps wiring close to the panel while meeting code. Key certifications include NEC/CEC compliance, CSA certification for Canada, and UL certification for metallic boxes—supporting safe, compliant installations. Designed for ordinary locations and 3/4" trade-size conductors, it supports efficient procurement and installation with durable materials. Constructed from Feraloy iron alloy, the FSC box offers corrosion resistance and strength in harsh plant environments. The box measures 6.03" long, 2.75" high, and 1.88" wide, with a 2.6 lb weight and 3/4" trade size, delivering a compact, reliable enclosure for robust electrical layouts.
Product Information
Extended Description
FSCD2 Eaton: Eaton Crouse-Hinds series Condulet FSC device box, Shallow, Feraloy iron alloy, Single-gang, D shape, 3/4"
Product Name
Eaton Crouse-Hinds series Condulet FSC device box
Catalog Number
FSCD2
UPC
782274414805
Product Length/Depth
6.03 in
Product Height
2.75 in
Product Width
1.88 in
Product Weight
2.6 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Shallow
Number of gangs
1
Shape
D
Trade size
3/4"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian CSA certification
FS and FD Device Boxes and Covers Canadian CSA certification
FS and FD Device Boxes and Covers Canadian CSA certification
Eaton Specification Sheet - FSCD2
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature → The FSC device box is shallow and single-gang with a D-shaped profile, designed for compact control panels. Business Impact → Maximizes panel real estate and simplifies conduit routing, reducing installation time and potential errors in tight spaces. Application → Ideal for machine controls and junctions in limited-depth electrical installations. Feature → Feraloy iron alloy construction delivers robust strength and excellent corrosion resistance. Business Impact → Extends service life in demanding environments, lowering maintenance costs. Application → Suitable for harsh industrial plants and outdoor-adjacent equipment. Feature → 3/4 in trade size with precise dimensions (6.03 in L × 2.75 in H × 1.88 in W). Business Impact → Simplifies wiring layouts and standard conduit connections, improving workflow. Application → Works well in control panels with standard conduit fittings. Feature → NEC/CEC compliance plus CSA and UL certifications. Business Impact → Reduces project risk by meeting regulatory expectations across North America. Application → Supports compliant installations in both US and Canadian facilities. Feature → FS/FD family compatibility and accessible documentation. Business Impact → Streamlines sourcing and stocking, with clear guidance from Eaton’s specification resources. Application → Accelerates project timelines for panel builders. Feature → Compact footprint with clear bend-radius guidance. Business Impact → Lowers installation costs and minimizes field rework. Application → Fits into dense panel interiors and minimizes enclosure crowding.
Get a Quick Quote for a Eaton FSCD2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSCD2?
Enquire Now
FAQs
FSCD2 is a compact, 1-gang device box with a shallow depth designed for tight panel spaces. It mounts using standard junction-box hardware and accepts 3/4 in conduit fittings. Plan for typical clearance around the enclosure face and ensure access to the interior for wiring and cover installation. The DoC and catalog page provide mounting recommendations for common panel configurations.
Yes. FSCD2 complies with NEC/CEC standards for metallic device boxes. It carries CSA certification for Canada and UL certification for metallic outlet boxes, with an area classification of Ordinary/Non-Hazardous Locations. These certifications support code-compliant deployments in both the United States and Canada, reducing compliance risk in multi-site projects.
FSCD2 is ideal for control panels and junction boxes in machines, conveyors, and process equipment where space is at a premium. Its shallow depth, 3/4 in trade size, and D-shaped, single-gang footprint suit compact wiring runs and organized conduit routing in non-hazardous locations, minimizing panel depth while maintaining accessibility for maintenance.
Feraloy iron alloy provides superior strength and corrosion resistance, which translates to longer service life in harsh industrial environments. This material choice helps withstand frequent handling, vibration, and exposure to contaminants, reducing maintenance and replacement costs over the enclosure’s lifecycle.
Refer to Eaton’s Crouse-Hinds catalog and the FSCD2 specification sheet for installation guidelines, bend-radius data, and compatible covers. Accessory compatibility with the FS/FD family simplifies parts availability, while the catalog page consolidates best practices for mounting, conduit entries, and cover options across projects.
