Eaton FSM1 Condulet FS Device Box - NEC/CEC
Part Number: FSM1
Quick Summary
The Eaton FSM1 Condulet FS device box protects field wiring terminations in industrial enclosures for dry, ordinary locations. In practice, installers often struggle with fitting compact, rugged terminations into tight panels while maintaining code compliance and reliable access. This FS series box carries NEC/CEC standards certification and is suitable for ordinary/non-hazardous locations, featuring a shallow profile that helps maximize panel space. Designed to support a 1/2 inch conduit in a single-gang footprint, it offers a straightforward, scalable solution that aligns with project timelines and procurement workflows. By pairing solid construction with familiar FS compatibility, it delivers tangible business value through faster installations and predictable performance in control panels and junction boxes.
Product Information
Extended Description

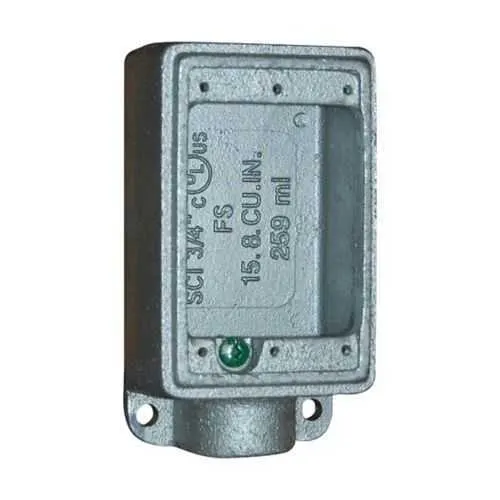

FSM1 Eaton: Eaton Crouse-Hinds series Condulet FS device box, Shallow, Malleable iron, Single-gang, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet FS device box
Catalog Number
FSM1
UPC
662277026512
Product Length/Depth
5.3 in
Product Height
2.87 in
Product Width
2.13 in
Product Weight
2.22 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Shallow
Number of gangs
1
Trade size
1/2"
Material
Malleable iron
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
Eaton Specification Sheet - FSM1
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Shallow, single-gang Condulet FS device box. Benefit: Reduces panel intrusion and simplifies routing in compact enclosures, enabling faster, cleaner installations in control panels. Application: Ideal for 1/2 inch conduit terminations in spaces with limited depth. Feature: Malleable iron construction. Benefit: Delivers robust protection against impact and mechanical stress, lowering field-maintenance costs. Application: Suitable for industrial environments that demand durable enclosures for field terminations. Feature: Precise 1/2 inch trade size and 5.3 in length with 2.87 in height and 2.13 in width. Benefit: Predictable fit with standard FS components and covers, reducing design iterations and BOM changes. Application: Seamless integration into existing FS equipment stacks. Feature: Weight around 2.22 lb. Benefit: Manageable handling during installation and service, minimizing worker strain and installation time. Application: On-site mounting and panel assembly where weight balance matters. Feature: NEC/CEC certification and Ordinary/Non-Hazardous Location classification. Benefit: Ensures regulatory compliance and simplifies approvals for electrical installations. Application: Use in non-hazardous industrial settings, aligning with code requirements. Feature: Catalog and datasheet availability (FSM1). Benefit: Facilitates quick procurement decisions and informed design choices. Application: Engineers can reference Eaton’s FSM1 datasheet for specific mounting and accessory selections. Feature: FS family compatibility. Benefit: Streamlines procurement by staying within a familiar ecosystem, reducing part variation. Application: Panels and junction boxes configured with other FS series components.
Get a Quick Quote for a Eaton FSM1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSM1?
Enquire Now
FAQs
To install FSM1, align the box with the wall or panel opening, mount using compatible fasteners, and insert 1/2 inch conduits into the appropriate knockouts. Secure the cover and ensure a proper gasket seal if used. This design supports straightforward mounting with other FS series components, enabling quick termination routing and clean cable management in non-hazardous environments.
FSM1 is a shallow, single-gang box made from malleable iron, sized for 1/2 inch trade-size conduits. It measures 5.3 inches in length, 2.87 inches in height, and 2.13 inches in width, with an approximate weight of 2.22 pounds. These specifications support robust terminations in ordinary locations while fitting within compact panel layouts.
FSM1 is designed for ordinary/non-hazardous locations and is not intended for hazardous or highly corrosive environments. Its malleable iron construction provides rugged protection for general industrial terminations, but for hazardous locations or extreme conditions you should consider FS variants rated for those specifications and potential additional enclosures or seals.
FSM1 complies with NEC/CEC standards and is specified for ordinary/non-hazardous locations. This alignment with mainstream electrical codes helps ensure regulatory acceptance in commercial and light-industrial installations, reducing design risk and expediting approval processes in typical panel-build projects.
Choosing FSM1 leverages the established FS family, simplifying procurement with consistent parts and accessories. The durable malleable-iron construction reduces replacement costs, while the availability of official Eaton datasheets and catalogs speeds design decisions and installation planning, yielding lower total cost of ownership over the device box lifecycle.
