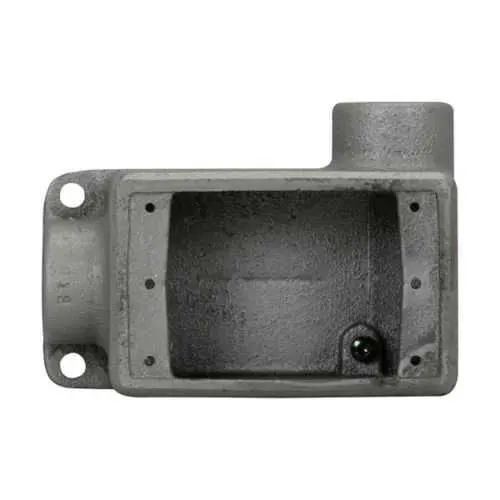

Eaton FSR1 Condulet FS Device Box - NEC/CEC
Part Number: FSR1
Quick Summary
Eaton FSR1 Condulet FS Device Box is a shallow, single-gang enclosure designed for 1/2" trade-size wiring in ordinary locations. For engineers facing tight panel spaces, this compact box minimizes depth without compromising protection. It is NEC/CEC compliant and carries UL Canada and CSA Group certifications, streamlining audits and field approvals. This device box integrates smoothly with the Eaton FS family, enabling scalable, compliant control solutions while delivering reliable protection for wiring terminations in industrial environments.
Product Information
Extended Description
FSR1 Eaton: Eaton Crouse-Hinds series Condulet FS device box, Shallow, Feraloy iron alloy, Single-gang, R shape, 1/2"
Product Name
Eaton Crouse-Hinds series Condulet FS device box
Catalog Number
FSR1
UPC
782274418407
Product Length/Depth
5.16 in
Product Height
3.63 in
Product Width
1.88 in
Product Weight
2.53 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Depth
Shallow
Number of gangs
1
Shape
R
Trade size
1/2"
Material
Feraloy iron alloy
Crouse-Hinds series FS, FD, Single, Multi, Blank Device Boxes and Covers catalog page
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
FS and FD Device Boxes and Covers Canadian certification
Eaton Specification Sheet - FSR1
Industrial Fittings Bend Radius and Cubic Capacity Chart
Feature: Shallow, single-gang R-shaped Condulet FS device box with 1/2" trade size and Feraloy iron alloy body. Benefit: Reduces installation depth and protects critical terminations, lowering retrofit costs and enabling denser panels in control cabinets. Application: Ideal for compact control panels and junctions in ordinary locations where space is at a premium. Feature: Precise dimensions and weight (5.16 in length, 3.63 in height, 1.88 in width, 2.53 lb). Benefit: Predictable fit in tight enclosures and easier handling during wiring and mounting, improving installer efficiency by minutes per box. Application: Used in new builds and retrofits with standard FS conduit runs. Feature: NEC/CEC compliance with area classification Ordinary/Non-Hazardous. Benefit: Simplifies compliance documentation and reduces risk during inspections, enabling faster project sign-off. Application: Suitable for non-hazardous industrial sites and routine electrical installations. Feature: 1/2" trade size, R-shaped geometry and compatibility with the Condulet FS family. Benefit: Streamlines conduit connections and supports modular enclosure schemes, saving design time. Application: Controls wiring terminations in compact assemblies. Feature: Cataloged with multiple certification references (UL Canada, CSA Group). Benefit: Ensures regulatory conformity across borders, reducing supplier risk. Application: Ideal for multinational facilities and compliant sourcing. Feature: Material: Feraloy iron alloy. Benefit: Enhanced durability and corrosion resistance for longer service life in demanding environments. Application: Outdoor or semi-exposed panels in ordinary locations.
Get a Quick Quote for a Eaton FSR1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSR1?
Enquire Now
FAQs
The FSR1 is a shallow, single-gang Condulet FS device box designed for 1/2" trade-size wiring. It fits within compact panel spaces and aligns with the Condulet FS family for straightforward mounting alongside FD or other FS boxes. Its dimensions (5.16 in L, 3.63 in H, 1.88 in W) help determine fit in tight enclosures.
The FSR1 uses Feraloy iron alloy for robust durability and corrosion resistance. It carries NEC/CEC compliance, and is certified for Ordinary/Non-Hazardous Locations. Additional certifications include UL Canada and CSA Group listings, supporting cross-border use and simplifying regulatory audits.
Yes. The FSR1 is explicitly designed for Ordinary/Non-Hazardous Locations, making it suitable for control panels, junctions, and field terminations in non-hazardous industrial environments. Its compact form factor and material performance support reliable operation in typical factory settings.
FSR1 complies with NEC/CEC standards and has UL Canada certification as well as CSA Group listing. These certifications help ensure regulatory alignment for North American installations and facilitate multi-site procurement without compromising compliance.
The shallow depth and 1/2" trade-size capability streamline conduit connections and reduce panel footprint, lowering installation time and labor costs. The durable Feraloy iron alloy extends service life in ordinary locations, reducing maintenance costs and replacement intervals over the life of the installation.
