Eaton FSS220 Linear Fluorescent Light Fixture - IP66
Part Number: FSS220
Quick Summary

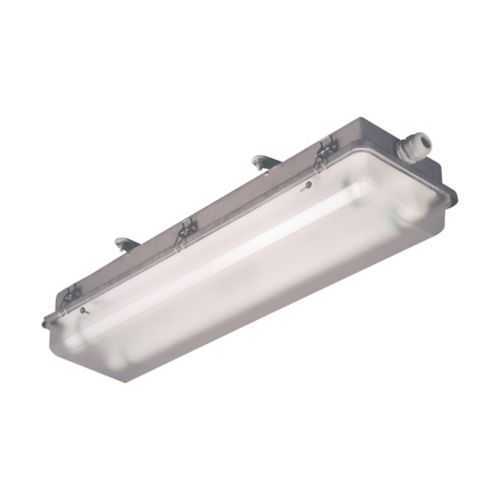

Eaton FSS220 linear fluorescent light fixture provides rugged illumination for demanding industrial spaces. Maintenance downtime and corrosion-prone environments challenge plant lighting, making reliable fixtures essential. It carries NEC/CEC compliance, IP66 ingress protection, and NEMA 4X ruggedness for washdown and harsh locations, ensuring safety and reliability. Designed for through-feed installations with a stainless steel body and matte polycarbonate lens, it supports long service life and predictable maintenance costs. This solution aligns with Pauluhn Intrepid industrial lighting families, delivering consistent illumination and total cost-of-ownership optimization for facilities managers and engineers alike.
Product Information
Extended Description
FSS220 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,60 Hz,2 ft,Fluorescent,Matte polycarbonate lens,T12 bi-pin,304 stainless steel,2-lamp,Through feed,120 Vac,20W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture
Catalog Number
FSS220
UPC
662276397514
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
23.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Number of lamps
2-lamp
Lamp length
2 ft
Light type
T12 bi-pin
Wattage
20W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FSS220 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FSS220
The FSS220 provides two 20W fluorescent lamps in a 28.8 inch long housing, delivering compact, energy-efficient lighting that reduces operating costs while maintaining high visibility in production lines. The 304 stainless steel construction offers exceptional corrosion resistance, extending service life in humid or washdown environments and lowering replacement frequency. A matte polycarbonate lens protects the lamp array from impacts and contaminants, improving uptime in rugged facilities. Through-feed installation with one non-metallic cable gland and one end plugged simplifies wiring and commissioning, reducing installation time and field errors. The 7.625 inch wide by 5 inch tall profile fits over conveyors and workstations without compromising access or clearance. Compliance with IP66 and NEMA 4X guarantees protection against dust, water, and harsh cleaning regimes while meeting NEC/CEC requirements for ordinary locations.
Get a Quick Quote for a Eaton FSS220
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSS220?
Enquire Now
FAQs
The FSS220 is designed for through-feed installation with one non-metallic cable gland and one end plugged. Start by mounting the housing on a suitable support, route the feed via the gland, connect the 120V supply to the lamp ballast, and secure the end plug. The two-lamp, 28.8 in length minimizes field wiring while delivering reliable illumination with minimal downtime.
This fixture carries NEMA 4X protection and IP66 ingress protection, suitable for ordinary/ non-hazardous locations and washdown environments. It complies with NEC/CEC standards, ensuring electrical safety and reliability in industrial facilities. Its stainless steel housing further supports corrosion resistance in challenging plant conditions.
Yes. The combination of IP66 sealing and NEMA 4X rating makes the FSS220 suitable for washdown areas, damp plants, and other harsh environments typical in manufacturing and processing facilities. Its 304 stainless steel body and polycarbonate lens combine durability with easy maintenance in these settings.
The fixture uses fluorescence with two 20W lamps, operating at 120 VAC and 60 Hz. It employs a T12 bi-pin lamp type and a matte polycarbonate lens. The unit supports a through-feed configuration and includes a single non-metallic gland plus end plug for straightforward wiring and secure mounting.
Expected ROI comes from reduced maintenance downtime, longer service life due to corrosion-resistant 304 stainless steel, and energy-efficient 20W lamps. The IP66/NEMA 4X protection minimizes replacement costs in washdown areas, while compatibility with the Pauluhn Intrepid line helps standardize maintenance and spare parts across facilities.
