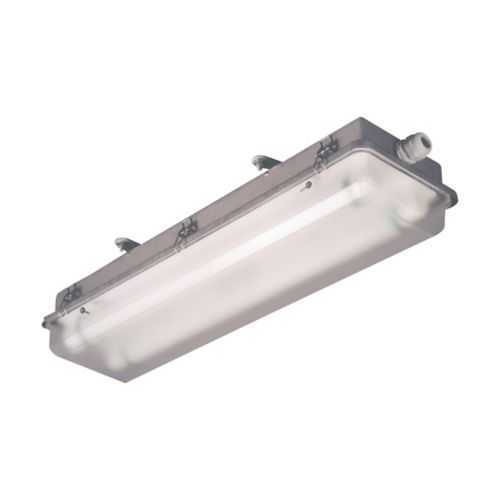

Eaton FSS220L Linear Fluorescent Light Fixture - IP66
Part Number: FSS220L
Quick Summary
The Eaton FSS220L linear fluorescent light fixture provides reliable, high-efficiency illumination for industrial facilities such as manufacturing floors and washdown areas. It tackles common pain points like bulb failures, corrosion, and difficult installations by combining a rugged 304 stainless steel housing with a through-feed wiring design. With IP66 protection and NEMA 4X durability, plus NEC/CEC compliance for ordinary/non-hazardous locations, it meets strict regulatory and environmental requirements. Maintenance teams value the lamps-included design, 2-foot footprint, and straightforward retrofit potential within Pauluhn Intrepid installations. By delivering robust service life at 120 V and 60 Hz, it minimizes downtime and lifecycle costs, while compatible with through-feed wiring and the matte polycarbonate lens.
Product Information
Extended Description
FSS220L Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent,One non-metallic cable gland and one end plugged,60 Hz,2 ft,Matte polycarb lens,T12 bi-pin,304 SS,2-lamp,Lamps included,Through feed,120 Vac,20W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture
Catalog Number
FSS220L
UPC
662276397538
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
23.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Number of lamps
2-lamp
Lamp length
2 ft
Light type
T12 bi-pin
Wattage
20W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Special features
Lamps included
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FSS220L
Feature → Business Impact → Application: Rugged 304 stainless steel housing provides excellent corrosion resistance, reducing maintenance costs in wet or dusty environments and extending fixture life in washdown areas across industrial plants. Application: Food processing, chemical plants, and outdoor walkways where exposure to moisture and contaminants is high. Feature → Business Impact → Application: IP66 protection and NEMA 4X rating deliver reliable performance in harsh environments, lowering the risk of water ingress and corrosion-related failures. Application: Marine terminals, offshore facilities, and exposed industrial spaces requiring durable lighting. Feature → Business Impact → Application: Through-feed wiring with one non-metallic cable gland and one end plugged simplifies installation, speeds retrofits, and reduces field labor time. Application: Retrofit projects within existing Pauluhn Intrepid Intrepid configurations or new builds needing fast, secure wiring. Feature → Business Impact → Application: 2-lamp, 2 ft length with 20W lamps and 120 Vac operation delivers balanced lumen output with energy efficiency, lowering operating costs. Application: General manufacturing floors and assembly lines seeking cost-effective, reliable illumination. Feature → Business Impact → Application: Matte polycarbonate lens combines impact resistance with uniform light distribution, minimizing maintenance calls for lens replacements. Application: Environments with physical handling or accidental impact risk. Feature → Business Impact → Application: Lamps included option eliminates wait times for replacements, improving uptime in critical production zones. Application: High-demand production lines where downtime directly impacts throughput.
Get a Quick Quote for a Eaton FSS220L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSS220L?
Enquire Now
FAQs
The FSS220L is designed for through-feed installation with one non-metallic cable gland and one end plugged, making it compatible with existing Pauluhn Intrepid systems. It accommodates a 2 ft, 28.8 in length footprint and uses 120 Vac, 60 Hz power, supporting 2-lamp T12 bi-pin lamps. This setup simplifies retrofits and minimizes wiring effort during new installations.
Key specs include a 2-lamp configuration at 20W total, 120 Vac, 60 Hz operation, and a 2 ft lamp length. The unit uses a matte polycarbonate lens within a 304 stainless steel housing, delivering IP66 ingress protection and NEMA 4X durability suitable for Ordinary/Non-Hazardous Locations.
Yes. The FSS220L is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. It also features IP66 ingress protection and NEMA 4X enclosure, ensuring reliable operation in harsh industrial environments.
Installation benefits include through-feed wiring with a single non-metallic gland and end plug, reducing field connections. Lamps are included, lowering downtime for startup and replacements, while the 2-foot length and 304 stainless steel housing simplify mounting in Pauluhn Intrepid frames.
The FSS220L combines durable stainless steel housing, IP66/NEMA 4X protection, and included lamps to minimize maintenance cycles. Its robust construction and straightforward installation reduce downtime, extend service life, and lower lifecycle costs for facilities with demanding washdown and exposure conditions.
