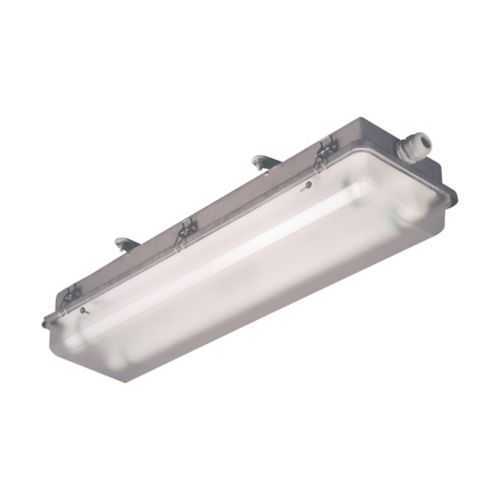

Eaton FSS232 Linear Fluorescent Light Fixture - IP66
Part Number: FSS232
Quick Summary
The Eaton FSS232 linear fluorescent light fixture delivers reliable illumination for industrial environments such as warehouses and production floors. When downtime and inconsistent lighting erode productivity, you need a rugged solution that can run in demanding locations. This model carries IP66 protection, a NEMA 4X enclosure, and NEC/CEC compliance, ensuring performance in damp, washdown-ready spaces. Built with 304 stainless steel and a matte polycarbonate lens, it resists corrosion while delivering clear, uniform light. The through-feed design and universal 120-277Vac operation simplify installation across facilities, helping minimize spare parts and deployment time while supporting long-term maintenance planning and energy efficiency.
Product Information
Extended Description
FSS232 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,4 ft,Matte polycarbonate lens,T8 bi-pin,304 stainless steel,2-lamp,Through feed,120-277 Vac,32W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture
Catalog Number
FSS232
UPC
662276397552
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
25.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T8 bi-pin
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FSS232 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FSS232
304 stainless steel housing provides corrosion resistance against moisture and minor chemical exposure, reducing replacement cycles and maintenance costs in washdown areas. This translates to longer service intervals and lower lifecycle cost for warehouses, manufacturing facilities, and automotive environments where exposure to humidity and cleaning agents is common. The IP66 and NEMA 4X rated enclosure protect against dust and water ingress, enabling reliable operation in damp or washdown-ready spaces and reducing downtime. With a 2-lamp, 32W configuration across a 4 ft length, the fixture delivers uniform illumination for long runs, improving visibility and workflow on production lines and in cross-aisle aisles. Through-feed entry (one non-metallic gland and one end plugged) simplifies wiring and supports fast retrofits or new installations, minimizing on-site labor. The matte polycarbonate lens provides durable light diffusion and impact resistance, lowering maintenance needs while enhancing glare control. Universal 120-277Vac input and 50/60 Hz compatibility reduce spare parts and inventory, allowing the same fixture to serve multiple sites. This combination of rugged housing, blower-free design considerations, and standard T8 Bi-pin lamps addresses common objections around durability, installation complexity, and lifecycle cost in demanding industrial settings.
Get a Quick Quote for a Eaton FSS232
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSS232?
Enquire Now
FAQs
For retrofit installations, rely on the through-feed design with one non-metallic cable gland and one end plug. This simplifies field wiring, reduces install time, and minimizes disassembly of existing systems. Ensure wall or ceiling mounting hardware aligns with the 52.8 in body length and use compatible mounting brackets rated for through-feed configurations. The 120-277Vac supply remains universal across site power architectures.
Yes. The FSS232 features IP66 ingress protection and a NEMA 4X enclosure, delivering excellent dust and water jet resistance. This makes it suitable for damp warehouses, washdown areas, and other ordinary locations where moisture or dust exposure is present, while maintaining lighting reliability and minimizing maintenance.
The fixture operates at 120-277Vac, 50/60 Hz, with a 32W, 2-lamp, 4 ft configuration using T8 bi-pin lamps. This universal voltage and two-lamp arrangement provides efficient illumination along long runs and across broad workspaces, reducing the number of fixtures needed for typical aisles and workstations.
Industries such as warehousing, manufacturing, automotive, and process facilities with ordinary/non-hazardous locations gain from the FSS232’s robust corrosion resistance and rugged enclosure. Its through-feed wiring and universal voltage simplify multi-site deployments, while the 304 stainless steel housing and matte lens support long life in environments with humidity, cleaning regimes, and routine maintenance.
The combination of IP66/NEMA 4X protection, corrosion-resistant 304 stainless steel, and a durable matte polycarbonate lens lowers maintenance frequency and replacement costs. Universal voltage reduces inventory complexity, and the through-feed installation speeds up deployment. Together, these factors translate to reduced downtime, predictable lifecycle costs, and improved facility uptime for steady production and logistics operations.
