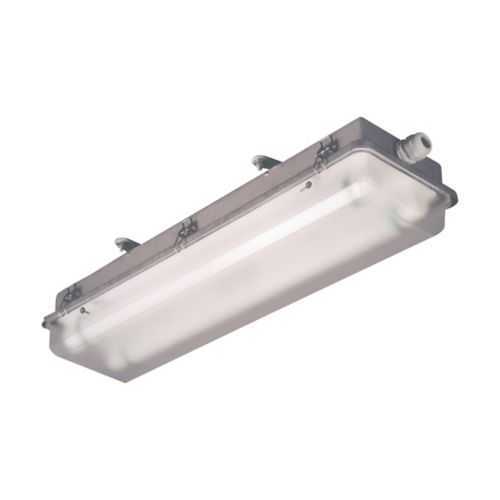

Eaton FSS235 Fluorescent Light - IP66
Part Number: FSS235
Quick Summary
The Eaton FSS235 Fluorescent Light is a rugged through-feed fixture designed for industrial spaces. In challenging environments like manufacturing floors or assembly lines, reliable illumination is essential to safety and productivity. It meets NEC/CEC standards, provides IP66 protection, and carries a NEMA 4X rating for durability in demanding settings. The 52.8 in long, 2-lamp, 4 ft lamp configuration paired with a 120 VAC, 60 Hz supply offers efficient, consistent lighting while keeping installation straightforward. With a 304 stainless steel body and matte polycarbonate lens, this fixture blends business value with long-term lifecycle performance for facilities managers and procurement teams seeking durable, code-compliant lighting solutions.
Product Information
Extended Description
FSS235 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,60 Hz,4 ft lamp,Fluorescent,Matte polycarbonate lens,304 stainless steel,2-lamp,Through feed,120 Vac,35W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture
Catalog Number
FSS235
UPC
662276397613
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
25.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Number of lamps
2-lamp
Lamp length
4 ft
Wattage
2 x 30W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FSS235 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FSS235
Feature → Business Impact → Application: The 304 stainless steel housing delivers superior corrosion resistance, which translates to lower maintenance costs and extended fixture life in washdown or chemical exposure environments, ideal for food processing or chemical plants. Application: use in harsh industrial zones where cleanliness and durability matter. Feature → Business Impact → Application: Through-feed design with one non-metallic cable gland and one end plugged simplifies wiring and field modifications, reducing install time and labor costs. Application: line-side installations and retrofit projects where quick connectivity is a priority. Feature → Business Impact → Application: Matte polycarbonate lens minimizes glare while resisting impact and chemical exposure, improving worker comfort and visibility in busy facilities. Application: warehouses and production lines with high forklift traffic. Feature → Business Impact → Application: 2-lamp, 4 ft lamp length at 60 Hz/120 VAC delivers wide-area illumination with a modest energy draw (2 x 30 W), supporting energy management programs and cost-conscious budgeting. Application: facility-wide retrofit programs and new builds. Feature → Business Impact → Application: Compliance with NEC/CEC, IP66, and NEMA 4X provides regulatory peace of mind and reduces risk audits, enabling use in ordinary locations and select non-hazardous environments. Application: facilities subject to rigorous safety and environmental standards. Feature → Business Impact → Application: Availability of installation resources like CAD drawings, brochures, and instruction sheets accelerates design reviews and procurement cycles. Application: engineering design reviews and fast-track commissioning.
Get a Quick Quote for a Eaton FSS235
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSS235?
Enquire Now
FAQs
The FSS235 features a through-feed design with one non-metallic cable gland and one end plugged, simplifying wiring routes and reducing field modifications. Its dimensions (52.8 in length, 7.625 in width, 5 in height) and 2-lamp configuration align with standard 4 ft layouts, enabling straightforward retrofit into existing enclosures or new installations.
FSS235 operates at 120 Vac, 60 Hz, with two 30 W lamps (60 W total). It is rated IP66 and NEMA 4X, with a 304 stainless steel housing and matte polycarbonate lens. These specs support reliable operation in ordinary locations and harsher washdown or dust-prone settings, meeting NEC/CEC requirements.
Yes. The 304 stainless steel body and IP66/NEMA 4X protection provide corrosion resistance and environmental sealing suitable for washdown and non-hazardous industrial locations. However, verify specific washdown protocols and ensure installation practices comply with site safety standards and local codes.
The FSS235 meets NEC/CEC standards and carries IP66 and NEMA 4X ratings. This combination supports compliance for ordinary/non-hazardous locations while delivering robust enclosure protection against dust, water ingress, and corrosion—crucial for audits and long-term facility safety.
Resources include an Eaton 3D CAD drawing, installation instructions (IF LBL1370), brochures, and catalog pages. Access to these materials accelerates design reviews, speeds procurement, and supports faster commissioning—reducing project risk and improving maintenance planning and total cost of ownership.
