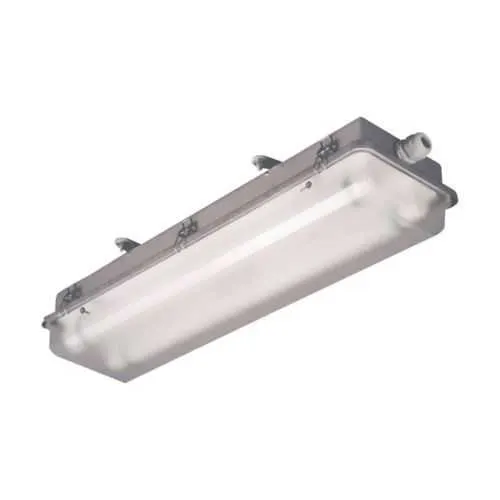

Eaton FSS254 Linear Fluorescent Light Fixture - IP66
Part Number: FSS254
Quick Summary
Eaton FSS254 linear fluorescent light fixture delivers rugged illumination for industrial environments. In harsh facilities, dust, moisture, and vibration quickly degrade standard luminaires, driving frequent replacements and downtime. This model meets IP66 protection and NEMA 4X enclosure with NEC/CEC compliance to keep installations safe and code-conforming. Through-feed, 2-lamp, 54W configuration delivers reliable lighting with a 120–277 VAC input, while a matte polycarbonate lens and 304 stainless steel body withstand washdowns and impacts. Designed for warehouses, processing plants, and manufacturing lines, it offers long service life and reduced maintenance, supporting energy efficiency and predictable operation in challenging settings.
Product Information
Extended Description
FSS254 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,4 ft,Matte polycarbonate lens,T5HO mini bi-pin,304 stainless steel,2-lamp,Through feed,120-277 Vac,54W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture
Catalog Number
FSS254
UPC
662276397668
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
25.1 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Number of lamps
2-lamp
Lamp length
4 ft
Light type
T5HO mini bi-pin
Wattage
54W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FSS254 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FSS254
Durable enclosure and corrosion-resistant body deliver long service life in washdown environments, minimizing maintenance cycles and downtime—ideal for food processing facilities and chemical plants where moisture and splashes are common. The IP66/NEMA 4X rating translates to reliable ingress protection and rugged performance, boosting uptime and reducing total cost of ownership. With 54W power across a 4 ft, 2-lamp configuration, the fixture delivers efficient illumination for assembly lines and rack-aligned work zones while keeping energy costs in check. The matte polycarbonate lens offers impact resistance and clear light distribution, supporting safe operation in high-traffic areas. Through-feed wiring plus one non-metallic cable gland and one end plug simplify installation, accelerating commissioning and reducing labor hours. NEC/CEC compliance ensures code-conforming installation across industrial sites, providing peace of mind for procurement and safety teams.
Get a Quick Quote for a Eaton FSS254
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSS254?
Enquire Now
FAQs
The FSS254 supports through-feed installation and ships with one non-metallic cable gland plus one end plug, simplifying in-line wiring along runs. This configuration reduces installation time, minimizes field termination, and helps maintain a clean, protected wiring path in demanding environments. Ensure power is de-energized before routing through interconnected fixtures.
The FSS254 uses a 54W, 2-lamp configuration with T5HO mini bi-pin lamps. It operates over a universal 120-277 VAC range and supports 50/60 Hz, enabling reliable operation across diverse European and North American facilities. This combination delivers efficient illumination for long-running production lines while maintaining compatible voltage flexibility.
Yes. The FSS254 is designed for Ordinary/Non-Hazardous locations with IP66 ingress protection and a NEMA 4X enclosure, providing robust resistance to dust, moisture, and corrosion. This makes it well-suited for washdown-intensive facilities such as food processing, beverage, and chemical plants, while meeting NEC/CEC safety standards.
The FSS254 carries NEC/CEC standards compliance and a NEMA 4X enclosure rating with IP66 protection. These certifications ensure safe electrical installations in non-hazardous environments, enable compliance with building codes, and support state and local regulatory requirements for industrial lighting installations.
The combination of a 304 stainless steel body, durable lens, and rugged enclosure reduces the frequency of replacements and service calls, driving lower maintenance costs. The energy-efficient 54W two-lamp design provides solid lumen output with low energy consumption, improving throughput uptime and contributing to a favorable return on investment over the fixture’s operational life.
