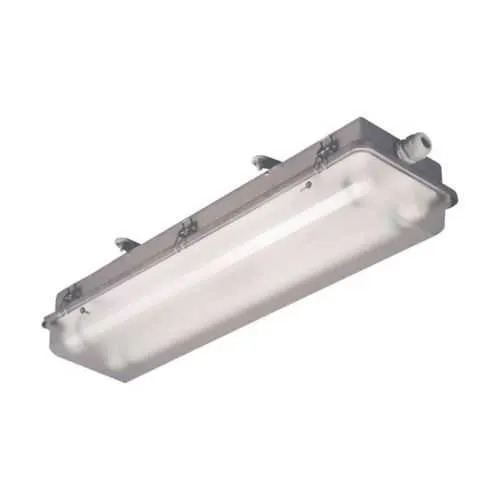

Eaton FSS320 Linear Fluorescent Light Fixture - IP66
Part Number: FSS320
Quick Summary
The Eaton FSS320 linear fluorescent light fixture delivers dependable industrial lighting for harsh environments. It addresses the common challenge of maintaining consistent illumination in dusty, washdown-prone facilities where equipment downtime is costly. This model carries NEC/CEC standards with robust IP66 ingress protection and a NEMA 4X rating, ensuring corrosion resistance and reliability in non-hazardous locations. Engineered for through-feed installation with a 2 ft lamp length, 3-lamp configuration, and 60 Hz operation, it also aligns with Pauluhn Intrepid system architectures. The combination of these certifications and rugged materials supports safer, more efficient operations while reducing maintenance cycles and lifecycle costs in industrial settings.
Product Information
Extended Description
FSS320 Eaton: Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture, One non-metallic cable gland and one end plugged,60 Hz,2 ft,Fluorescent,Matte polycarbonate lens,T12 bi-pin,304 stainless steel,3-lamp,Through feed,120 Vac,20W
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FSS linear fluorescent light fixture
Catalog Number
FSS320
UPC
662276397712
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
23.2 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
Fluorescent
Material
304 stainless steel
Number of lamps
3-lamp
Lamp length
2 ft
Light type
T12 bi-pin
Wattage
20W
Voltage rating
120 Vac
Frequency rating
60 Hz
Style
Through feed
Entry type
One non-metallic cable gland and one end plugged
Lens material
Matte polycarbonate
Eaton Crouse-Hinds FSS320 3D drawing
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent brochure
Crouse-Hinds series Pauluhn Intrepid Industrial Linear Fluorescent catalog page
IF LBL1370 - Pauluhn Intrepid Industrial Linear Fluorescent
Eaton Specification Sheet - FSS320
Feature → Business Impact → Application: 3-lamp, 2 ft fluorescent configuration delivers higher usable lumens with balanced longevity, reducing replacement frequency and labor costs in production lines and warehouses. Application: manufacturing and distribution centers needing consistent lighting with minimal maintenance. Feature → Business Impact → Application: IP66 rating and NEMA 4X housing provide water, dust, and corrosion resistance, lowering failure risk in washdown and dusty environments. Application: processing facilities, cement plants, and chemical environments where cleanliness and containment matter. Feature → Business Impact → Application: 304 stainless steel enclosure resists corrosion in harsh environments, extending fixture life and lowering total cost of ownership. Application: offshore or coastal facilities and outdoor-adjacent industrial zones. Feature → Business Impact → Application: matte polycarbonate lens combines impact resistance with clear illumination, reducing lens replacement and downtime. Application: high-traffic production floors and assembly lines. Feature → Business Impact → Application: through-feed entry with one non-metallic gland and one end plugged simplifies field wiring and retrofit projects, accelerating installation. Application: retrofits and new builds in existing Pauluhn Intrepid systems. Feature → Business Impact → Application: 120 VAC, 60 Hz operation minimizes wiring complexity and compatibility with standard plant power, enabling quick commissioning. Application: typical plant electrical infrastructure with standard receptacles.
Get a Quick Quote for a Eaton FSS320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FSS320?
Enquire Now
FAQs
FSS320 is designed for through-feed wiring, featuring one non-metallic cable gland and one end plug. It supports straightforward field wiring at 120 VAC and 60 Hz, simplifying retrofits and new installations within Pauluhn Intrepid systems.
The fixture uses fluorescent lamps with a 2 ft length in a 3-lamp configuration at 20W per lamp, totaling 60W. It operates at 120 VAC and 60 Hz, making it compatible with standard industrial power distribution.
Yes. It is certified for Ordinary/Non-Hazardous Locations with IP66 ingress protection and a NEMA 4X enclosure, offering robust resistance to dust, water, and corrosion in typical industrial facilities.
The FSS320 complies with NEC/CEC standards, carries IP66 ingress protection, and a NEMA 4X rating, with a 304 stainless steel housing and a matte polycarbonate lens for durability in harsh environments.
With a corrosion-resistant 304 stainless steel housing, robust lens, and a long-lasting fluorescent setup, the FSS320 reduces replacement cycles and downtime, delivering lower lifecycle costs and predictable maintenance in industrial facilities.
