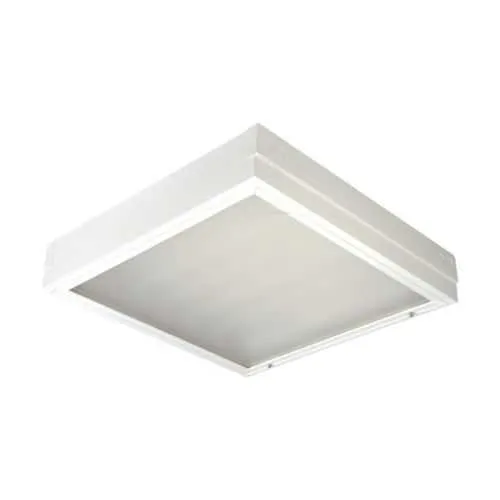

Eaton FT232BV Marine Interior Light - NEC/CEC Certified
Part Number: FT232BV
Quick Summary
The Eaton FT232BV is a marine interior fluorescent luminaire designed for crew areas and cargo spaces. Engineers often wrestle with corrosion, maintenance downtime, and limited mounting options in tight vessel interiors. It carries NEC/CEC standards and is certified for Ordinary/Non-Hazardous locations, easing regulatory compliance on ships. Its 120-277 VAC operation at 50/60 Hz and a 2-lamp, 2x4 ft configuration deliver dependable lighting where it matters most. This combination translates to lower maintenance costs, faster inspections, and consistent light levels, supporting efficient crew workflows while reducing lifecycle costs in demanding marine environments.
Product Information
Extended Description
FT232BV Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 50/60 Hz, 2 ft x 4 ft, Acrylic lens, T8, Copper-free aluminum, Recessed ceiling mount, 2-lamp, Blue filter tube (all lamps), 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT232BV
UPC
662276701137
Product Length/Depth
48.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
20 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 4 ft
Light type
T8
Number of lamps
2-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Blue filter tube (all lamps)
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1486 - FT, CE Fluorescent Luminaires
IF LBL1486 - FT, CE Fluorescent Luminaires
Eaton Specification Sheet - FT232BV
Feature: 2-lamp 2x4 ft fluorescent fixture with 32W T8 lamps and a 120-277 VAC, 50/60 Hz input. Business impact: Delivers efficient, dependable illumination with broad compatibility to existing shipboard electrical systems, reducing retrofit complexity and energy usage. Application: Corridor lighting, crew quarters, and galleys where space is constrained and reliability is paramount. Feature: Copper-free aluminum housing and acrylic lens with recessed ceiling mount. Business impact: Enhanced corrosion resistance in marine environments, lowering maintenance frequency and prolonging fixture life. Application: Overhead installations in damp or humid interiors, where flush mounting improves safety and aesthetics. Feature: Blue filter tube (all lamps) for improved crew comfort. Business impact: Reduces glare and improves visual comfort during night shifts or low-light operations, potentially reducing fatigue and human error. Application: Bridge, control rooms, and cabins requiring focused, glare-reduced illumination. Feature: NEC/CEC compliance and Ordinary/Non-Hazardous location rating. Business impact: Streamlines regulatory approvals and reduces risk during inspections, enabling quicker commissioning. Application: Shipboard interior environments governed by NEC/CEC and non-hazardous location requirements. Feature: Recessed ceiling mounting with 48.13 in length, 23.88 in width, and 5.19 in height; 20 lb weight. Business impact: Easy integration into standard ceiling grids and structured spaces without protruding fixtures, minimizing installation time and material costs. Application: Bulkhead-to-bulkhead corridors and cabins where a low-profile fit is essential.
Get a Quick Quote for a Eaton FT232BV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT232BV?
Enquire Now
FAQs
The FT232BV is designed for universal 120-277 VAC operation at 50/60 Hz, featuring a two-lamp T8 configuration. This broad voltage window simplifies integration with existing maritime electrical systems and minimizes the need for transformers or extra equipment, reducing installation time and potential points of failure on vessels.
The fixture measures 48.13 inches in length, 23.88 inches in width, and 5.19 inches in height, with a product weight of 20 pounds. These dimensions enable straightforward integration into standard shipboard ceiling grids and ensure compatibility with common overhead clearances in cabins and corridors.
The FT232BV carries NEC/CEC standards and is rated for Ordinary/Non-Hazardous locations. This combination supports regulatory compliance for typical marine interior spaces such as crew areas and nonhazardous compartments, simplifying documentation and inspection processes during vessel certifications.
Recessed mounting provides a flush, low-profile installation that minimizes snag hazards and preserves cabin aesthetics. It also eases integration with standard ceiling grids and reduces the risk of accidental damage in busy shipboard environments, while supporting efficient air circulation and maintenance access from above the ceiling line.
The combination of copper-free aluminum housing, acrylic lens, and 2-lamp T8 lamps offers durable performance with improved corrosion resistance and extended service life in harsh marine conditions. This translates to lower maintenance intervals, predictable energy use, and favorable total cost of ownership for vessel operators over the product’s lifecycle.
