Eaton FT332EMT2PAR Lighting & Emergency ballast
Part Number: FT332EMT2PAR
Quick Summary

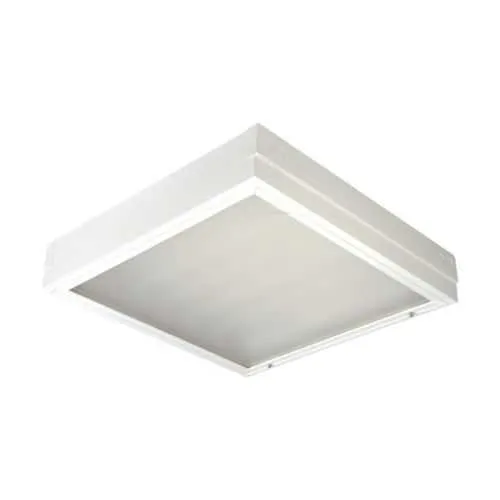

The Eaton FT332EMT2PAR is a marine interior lighting and emergency luminaire designed for 2x4ft ceilings in harsh maritime environments. Engineered to simplify life-safety in tight spaces, it combines illumination and emergency battery backup in one unit, reducing installation complexity and potential points of failure. Key compliance and certifications include NEC/CEC standards, and suitability for Ordinary/Non-Hazardous Locations on shipboard interiors. This solution also supports 120-277 Vac operation and 50/60 Hz service, delivering reliable performance across varied vessel power networks. By pairing efficient 32W T8 lighting with a copper-free aluminum housing and acrylic lens, it delivers maintenance-friendly, future-ready shipboard lighting while streamlining procurement and long-term operating costs.
Product Information
Extended Description
FT332EMT2PAR Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 50/60 Hz, 2 ft x 4 ft, Acrylic lens, T8, Copper-free alum, Recessed ceil mt, 3-lamp, Emergency battery, 1 lamp, 277V max., test switch, silver parabolic louver, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT332EMT2PAR
UPC
662276521414
Product Length/Depth
48.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
23.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 4 ft
Light type
T8
Number of lamps
3-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch, silver parabolic louver
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1486 - FT, CE Fluorescent Luminaires
Eaton Specification Sheet - FT332EMT2PAR
Integrated lighting plus emergency ballast is a single, compact unit that reduces install time, minimizes parts, and lowers total cost of ownership for shipboard projects. This integration means fewer components to manage and simpler commissioning, providing predictable performance when power is interrupted. In marine interior applications, the 2x4 ft footprint and recessed ceiling mount fit standard grid systems, enabling quick retrofits without costly structural changes. The 32W three-lamp T8 configuration delivers reliable lumen output with energy efficiency that helps meet fleet-wide energy targets while maintaining comfortable work environments. Wide voltage compatibility of 120-277 Vac and 50/60 Hz support minimizes electrical rework across vessels with mixed power networks, reducing downtime during upgrades. Copper-free aluminum housing and acrylic lens resist corrosion in salt-air environments, lowering upkeep costs and extending fixture life. The emergency battery backup ballast and test switch provide immediate reliability during outages and straightforward commissioning. NEC/CEC compliance and ordinary/non-hazardous area classification simplify regulatory approval and procurement for common shipboard interiors.
Get a Quick Quote for a Eaton FT332EMT2PAR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT332EMT2PAR?
Enquire Now
FAQs
Yes. The FT332EMT2PAR uses a recessed ceiling mount in a standard 2x4 ft footprint and is compatible with typical shipboard ceiling grids. It features a copper-free aluminum housing with an acrylic lens and a silver parabolic louver, and it includes a 3-lamp T8, 32W configuration with an integrated emergency ballast for straightforward installation.
Key specs include 120-277 Vac input, 50/60 Hz operation, 32W lamp power across a 3-lamp T8 array, a 2x4 ft length, and a 277V maximum for the emergency circuit. The fixture is designed for ordinary/non-hazardous locations and uses recessed mounting, making it suitable for standard shipboard power systems.
Yes. It’s designed for marine interiors with NEC/CEC compliance and an area classification of Ordinary/Non-Hazardous Locations. The fixture supports 120-277 Vac and 50/60 Hz, providing reliable operation across vessel power networks while delivering built-in emergency backup functionality for life-safety requirements.
Maintenance involves periodic testing via the built-in test switch and routine inspection of the battery backup ballast. The integrated design minimizes failure points and simplifies stocking. Replacement intervals depend on usage and conditions, but the single-unit configuration reduces maintenance complexity compared with separate emergency kits on ships.
The integrated lighting and emergency backup reduces cabling, inventory, and commissioning time, yielding lower labor costs. The 32W output with a 2x4 ft footprint optimizes space and energy use while NEC/CEC compliance minimizes regulatory risk. In harsh marine environments, the copper-free aluminum housing lowers corrosion maintenance and extends fixture life.
