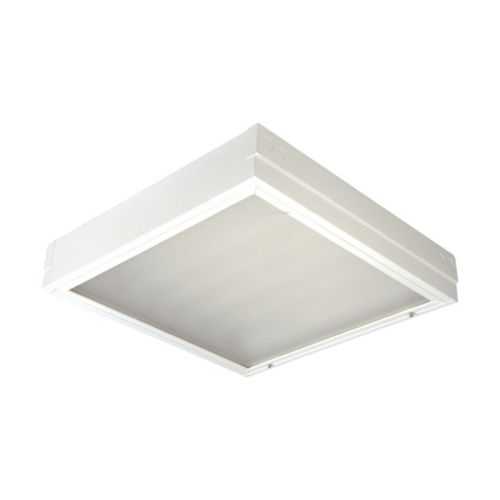

Eaton FT335 Marine Interior Lighting - NEC/CEC
Part Number: FT335
Quick Summary
Eaton FT335 Marine Interior Lighting provides reliable 2x2 ft fluorescent illumination for shipboard interiors. In marine projects, even small fixture failures can cause costly downtime and frequent maintenance. This fixture is NEC/CEC compliant and classified for Ordinary/Non-Hazardous Locations, helping you meet regulatory demands without over-specifying. It features a copper-free aluminum housing and acrylic lens designed for salt spray, with a recessed ceiling mount that simplifies installation in tight spaces. By integrating with the Pauluhn Meridian family, the FT335 supports fleet-wide standardization, easier spare-part stocking, and predictable maintenance cycles. The 60 Hz, 120 VAC, 3-lamp configuration delivers consistent brightness across cargo holds and crew spaces.
Product Information
Extended Description
FT335 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 60 Hz, 2 ft x 2 ft, Acrylic lens, T12HO, Copper-free aluminum, Recessed ceiling mount, 3-lamp, 120 Vac, 35W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT335
UPC
662276397989
Product Length/Depth
24.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
29.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 2 ft
Light type
T12HO
Number of lamps
3-lamp
Wattage
2 x 30W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Eaton Crouse-Hinds FT335 3D drawing
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1486 - FT, CE Fluorescent Luminaires
IF LBL1486 - FT, CE Fluorescent Luminaires
Eaton Specification Sheet - FT335
Feature: 2x2 ft, 3-lamp configuration with T12HO lamps provides high-visibility, even illumination across interior spaces. Business impact: consistent lighting reduces maintenance calls and supports safer work and living environments aboard vessels. Application: ideal for cabins, corridors, and galley areas that require reliable performance at 60 Hz and 120 VAC. Feature: Copper-free aluminum housing offers superior corrosion resistance in salt spray and humid marine atmospheres. Business impact: extended service life lowers replacement costs and downtime, improving total cost of ownership. Application: suitable for engine rooms, holds, and crew spaces where exposure to seawater is routine. Feature: Acrylic lens delivers clear illumination with impact resistance and easy cleaning. Business impact: minimizes lens damage risk and maintenance downtime, preserving light output. Application: overhead ceilings and recessed installations in high-traffic areas. Feature: Recessed ceiling mounting simplifies installation in tight or low-clearance spaces. Business impact: reduces installation time and hidden hardware improves safety and aesthetics. Application: overhead corridors, passageways, and shared spaces. Feature: 120 VAC, 60 Hz operation with a 2x30W configuration and 3-lamp setup aligns with standard building provisions. Business impact: leverages common electrical infrastructure, enabling quicker retrofits and predictable energy use. Application: shipboard electrical systems in ordinary locations with NEC/CEC compliance. Feature: Includes access to Eaton’s installation resources, including catalogs and 3D CAD drawings for planning and procurement efficiency. Business impact: accelerates project timelines, reduces design errors, and standardizes fleet lighting across vessels. Application: new builds and retrofits seeking consistent Pauluhn Meridian interiors.
Get a Quick Quote for a Eaton FT335
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT335?
Enquire Now
FAQs
FT335 uses a recessed ceiling mounting method, designed to install flush with the ceiling plane for a clean, low-profile look. This makes it highly compatible with standard shipboard ceilings where clearance is limited. The recessed mounting also reduces glare for crew spaces and simplifies alignment with adjacent fixtures, improving overall cabin aesthetics and safety during maintenance.
FT335 employs a 3-lamp configuration with T12HO lamps rated for 120 VAC at 60 Hz. The listed wattage is 2 x 30W per the specifications, totaling 60W for the fixture. This combination provides balanced, long-term brightness while keeping dynamic energy usage predictable for marine electrical systems and power budgeting.
Yes. The FT335 is classified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards, making it suitable for typical shipboard interiors like cabins, corridors, and crew spaces. Its copper-free aluminum housing and acrylic lens are designed to withstand marine environments, balancing durability with ease of maintenance and regulatory alignment.
FT335 is NEC/CEC compliant and classified for Ordinary/Non-Hazardous Locations, ensuring it meets common marine electrical and safety requirements. This combination supports regulatory approval for standard vessel interiors and simplifies procurement and commissioning within fleets that follow these codes.
The copper-free aluminum housing resists corrosion, extending fixture life in salt-prone environments and reducing replacement cycles. Acrylic lenses withstand impact and are easier to clean, lowering downtime. Standardization with the Pauluhn Meridian family simplifies spares stocking and procurement, delivering predictable maintenance and lower total cost of ownership across new builds and retrofits.
