Eaton FT417EMT2 Marine Interior Light - NEC/CEC
Part Number: FT417EMT2
Quick Summary

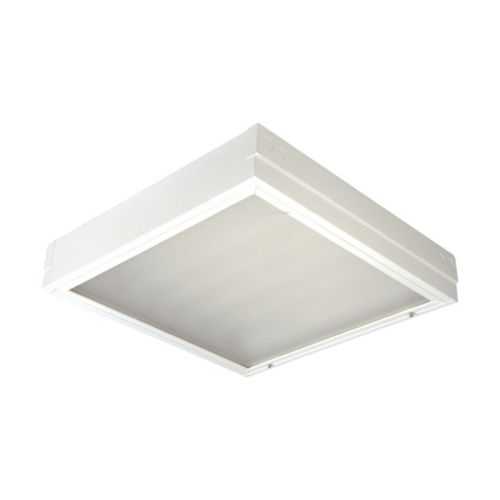

FT417EMT2 is an Eaton marine interior fluorescent luminaire for shipboard ceilings. Engineers often struggle with corrosion, tight spaces, and maintenance downtime in harsh marine interiors. This fixture uses copper-free aluminum, an acrylic lens, and a recessed ceiling mount to resist salt air and simplify installation, while NEC/CEC compliance supports safe, code-controlled operation aboard vessels. With 120–277 Vac compatibility and a 50/60 Hz input, it adapts to diverse fleets and retrofit projects, delivering consistent lighting and reduced energy waste. As part of the Pauluhn Meridian FT family, it combines durability with ease of service, helping maintenance teams improve uptime and lower life-cycle costs in demanding maritime environments.
Product Information
Extended Description
FT417EMT2 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 50/60 Hz, 2 ft x 2 ft, Acrylic lens, T8, Copper-free alum, Recessed ceiling mount, 4-lamp, Emergency battery back-up ballast, one lamp, 277V max., test switch, 120-277 Vac, 17W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT417EMT2
UPC
662276398047
Product Length/Depth
24.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
14 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 2 ft
Light type
T8
Number of lamps
4-lamp
Wattage
17W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1521 - FT Fluorescent Luminaires
IF LBL1521 - FT Fluorescent Luminaires
Eaton Specification Sheet - FT417EMT2
Copper-free aluminum housing and an acrylic lens deliver excellent corrosion resistance in salt-air marine environments, extending fixture life and reducing maintenance cycles. This translates to lower total cost of ownership for fleets operating in challenging shipboard conditions, with reliable illumination in cabins, passageways, and work areas. The 2x2 ft footprint with a recessed ceiling mount provides a low-profile installation that minimizes headroom conflicts and simplifies retrofits across aging vessels. Four-lamp configuration at 17W per lamp delivers steady lumen output while preserving energy efficiency, supporting compliance with fleet energy goals and reducing operating costs. The emergency battery back-up ballast with a test switch enhances safety during power interruptions, ensuring essential lighting remains available in corridors and safety zones. The fixture supports 120–277 Vac operation at 50/60 Hz, enabling flexible integration into mixed electrical infrastructure without costly rewiring. At 14 lb, the unit remains manageable for marine technicians during installation and routine servicing, and its dimensions (24.13 in L x 23.88 in W x 5.19 in H) fit standard overhead spaces. NEC/CEC compliance and Ordinary/Non-Hazardous Location classification further reassure operators about regulatory alignment and safe performance in everyday shipboard environments.
Get a Quick Quote for a Eaton FT417EMT2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT417EMT2?
Enquire Now
FAQs
Install FT417EMT2 as a recessed ceiling luminaire using standard mounting methods for 2x2 ft fixtures. Ensure electrical connections meet 120–277 Vac, 50/60 Hz, and follow the included installation instructions for proper ballast integration and lamp alignment. The low-profile design helps fit limited overhead spaces common in shipboard interiors.
FT417EMT2 operates between 120 and 277 Vac with a 50/60 Hz input and uses a 4-lamp, 17W per lamp T8 configuration. It includes an emergency battery back-up ballast and supports 2x2 ft dimensions with an acrylic lens and copper-free aluminum housing, suitable for ordinary/non-hazardous locations.
Yes. The fixture is classified for Ordinary/Non-Hazardous Locations and carries NEC/CEC compliance, making it appropriate for general crew areas, corridors, and cabins where corrosive marine environments are a concern but hazardous classifications do not apply.
FT417EMT2 complies with NEC/CEC standards for electrical safety and operation in ordinary/non-hazardous locations. Its copper-free aluminum construction and robust housing are designed for marine environments, delivering reliable performance under salt-air conditions.
The copper-free aluminum housing and acrylic lens reduce corrosion-related maintenance, while the emergency ballast enhances safety during power outages, potentially lowering downtime. The 4-lamp, 17W-per-lamp configuration provides efficient lighting with predictable life-cycle costs for fleets and retrofit programs.
