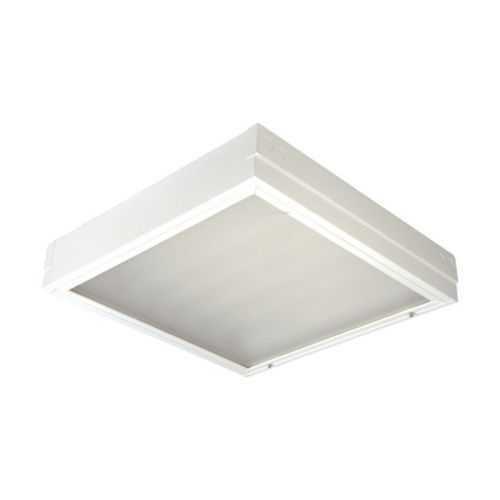

Eaton FT432EMT2 Lighting Fixture - NEC/CEC Compliance
Part Number: FT432EMT2
Quick Summary
Eaton FT432EMT2 lighting fixture delivers reliable marine interior illumination for 2x4 ft spaces. Engineers often struggle with fitting ample light in tight, corrosive shipboard environments while staying compliant and reducing downtime. This fixture aligns with NEC/CEC standards and area classifications for Ordinary/Non-Hazardous Locations, providing a robust balance of performance and safety. With recessed ceiling mounting, copper-free aluminum construction, and an acrylic lens, it integrates cleanly into confined interiors. The 32W, 50/60 Hz, and 120-277 VAC compatibility enable flexible power distribution across fleets, supporting cost-effective maintenance and consistent lighting quality for crew comfort and safety in demanding maritime applications.
Product Information
Extended Description
FT432EMT2 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 50/60 Hz, 2 ft x 4 ft, Acrylic lens, T8, Copper-free alum, Recessed ceiling mount, 4-lamp, Emergency battery back-up ballast, one lamp, 277V max., test switch, 120-277 Vac, 32W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT432EMT2
UPC
662276398092
Product Length/Depth
48.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
22.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 4 ft
Light type
T8
Number of lamps
4-lamp
Wattage
32W
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Special features
Emergency battery back-up ballast, one lamp, 277V max., test switch
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1486 - FT, CE Fluorescent Luminaires
IF LBL1486 - FT, CE Fluorescent Luminaires
Eaton Specification Sheet - FT432EMT2
Feature → Business Impact → Application: The FT432EMT2 uses four 2x4 ft lamp channels with a 32W total wattage to deliver wide-area coverage while minimizing energy use, reducing total cost of ownership over time and supporting energy efficiency programs aboard vessels. This translates to lower operating costs and improved ballast life in busy marine environments, with consistent brightness across decks and compartments. Feature → Business Impact → Application: Copper-free aluminum construction and an acrylic lens offer excellent corrosion resistance in maritime atmospheres, extending service life and reducing replacement cycles, which lowers maintenance time and inventory needs for shipyards and fleets. Feature → Business Impact → Application: Recessed ceiling mounting enables a sleek, low-profile install that minimizes headroom obstruction and simplifies retrofits in crowded engine rooms or cabin ceilings, accelerating installation schedules on new builds or retrofit projects. Feature → Business Impact → Application: Emergency battery back-up ballast, one lamp, and a test switch provide reliable egress illumination during power loss, enhancing safety compliance and regulatory readiness for crewed vessels. Feature → Business Impact → Application: Variable voltage support of 120-277 Vac and 50/60 Hz operation offers cross-regional compatibility, reducing stocking complexity and enabling standardized lighting across international fleets. Feature → Business Impact → Application: Standards alignment with NEC/CEC and Ordinary/Non-Hazardous Locations classification gives confidence in compliance, simplifies procurement paperwork, and supports audits for marine facilities and offshore operations.
Get a Quick Quote for a Eaton FT432EMT2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT432EMT2?
Enquire Now
FAQs
The FT432EMT2 is a recessed ceiling luminaire designed for 2x4 ft layouts with four lamps. Installation requires mounting in a compatible ceiling cavity, connecting to 120-277 VAC power, and confirming 50/60 Hz operation. Refer to Eaton installation sheets (LBL1486/LBL1521) for step-by-step guidance and to ensure proper alignment with NEC/CEC requirements.
FT432EMT2 operates at 120-277 VAC with a 50/60 Hz frequency rating and a total wattage of 32W. It uses a 4-lamp, T8 configuration with a 2x4 ft light-emitting area and a copper-free aluminum housing. The unit includes an emergency battery back-up ballast and a test switch for safety compliance.
Yes. FT432EMT2 is specified for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. Its marine interior design, coupled with a recessed ceiling mount and corrosion-resistant copper-free aluminum, makes it suitable for general interior spaces on vessels where hazardous classifications are not present.
FT432EMT2 carries NEC/CEC standards compliance and is recommended for Ordinary/Non-Hazardous Locations. It is part of Eaton's Crouse-Hinds Pauluhn Meridian line, optimized for marine interior use with features like an emergency ballast and a test switch to support regulatory audits and ongoing safety programs.
The four-lamp, 32W design reduces energy consumption while delivering reliable lighting. The emergency backup ballast provides essential egress lighting during outages, lowering downtime and potential safety penalties. Recessed installation and copper-free aluminum construction minimize corrosion-related maintenance on ships, translating to lower lifecycle costs and higher asset availability.
