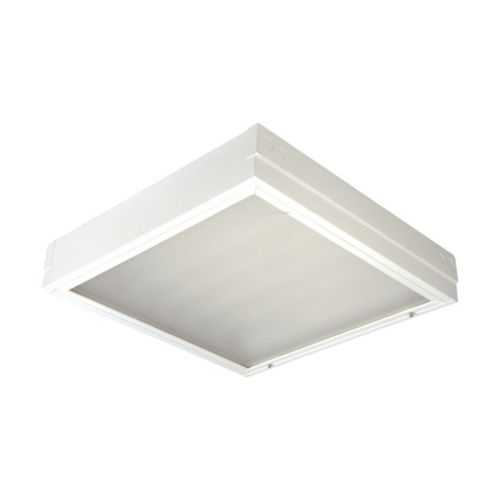

Eaton FT435 Lighting - 4-Lamp Marine Interior NEC/CEC
Part Number: FT435
Quick Summary
The Eaton FT435 is a 4-lamp marine interior fluorescent ceiling light designed for rugged industrial vessels. Engine rooms and crew cabins demand reliable, easy-to-install lighting that withstands vibration, moisture, and long service life. Key certifications include NEC/CEC compliance and an Ordinary/Non-Hazardous Location rating, supporting safe operation in marine interiors. With copper-free aluminum housing, acrylic lens, and recessed mounting, this fixture reduces maintenance while improving energy efficiency. In demanding fleets, FT435 delivers reliable, code-compliant lighting that supports safety, productivity, and total cost of ownership.
Product Information
Extended Description
FT435 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 60 Hz, 2 ft x 2 ft, Acrylic lens, T12HO, Copper-free aluminum, Recessed ceiling mount, 4-lamp, 120 Vac, 35W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT435
UPC
662276398115
Product Length/Depth
24.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
26.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 2 ft
Light type
T12HO
Number of lamps
4-lamp
Wattage
2 x 30W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Eaton Crouse-Hinds FT435 3D drawing
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1486 - FT, CE Fluorescent Luminaires
IF LBL1486 - FT, CE Fluorescent Luminaires
Eaton Specification Sheet - FT435
Feature: Four-lamp T12HO configuration provides high illumination across a 2x2 ft panel. Business Impact: Enhances work scope visibility while maintaining consistent lighting, reducing the need for frequent re-lamping. Application: Ideal for cargo holds and crew spaces in ships where clear visibility improves safety and workflow. Feature: Copper-free aluminum housing offers improved corrosion resistance in salt spray environments. Business Impact: Extends service life and lowers lifecycle maintenance costs, reducing downtime during voyages. Application: Suitable for engine rooms and weather-exposed deck areas aboard fleet vessels. Feature: Acrylic lens provides impact resistance and long-term clarity. Business Impact: Maintains light output and reduces replacement cycles, lowering operational costs. Application: Crew quarters and interior cabins where reliability matters most. Feature: Recessed ceiling mounting delivers a clean, snag-free profile. Business Impact: Simplifies installation and protects fixtures from damage in tight spaces, saving labor time. Application: Standard 2x2 ft openings in marine interiors. Feature: NEC/CEC compliance with Ordinary/Non-Hazardous Location rating. Business Impact: Ensures code conformance and smoother commissioning, minimizing inspection delay. Application: Regulatory-ready lighting for commercial marine environments.
Get a Quick Quote for a Eaton FT435
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT435?
Enquire Now
FAQs
Yes. FT435 uses a 24.13 in by 23.88 in footprint with a 5.19 in height and a recessed ceiling mount, fitting standard 2x2 ft openings. The fixture weighs 26.5 lb and operates at 120 Vac 60 Hz with four T12HO lamps, making retrofit straightforward in Pauluhn Meridian FT marine interiors.
FT435 is a 4-lamp unit configured as 2x30W per lamp, delivering 120W total. It operates on 120 Vac at 60 Hz and uses T12HO lamps with an acrylic lens. The fixture is copper-free aluminum and designed for recessed ceiling mounting, providing reliable illumination across a 2x2 ft panel.
FT435 is intended for ordinary/non-hazardous marine locations, offering reliable interior lighting for crew cabins, galleys, engine rooms, and cargo holds. Its durable copper-free housing and marine interior design make it suitable for environments where corrosion resistance and consistent light quality are essential for safety and productivity.
FT435 provides NEC/CEC compliance and is rated for Ordinary/Non-Hazardous Locations, aligning with typical marine electrical codes. This combination supports code conformance during inspections and ensures safety in standard shipboard interior applications, including recessed ceiling installations.
The copper-free aluminum housing, acrylic lens, and robust 4-lamp configuration minimize corrosion risk and maintenance needs while delivering long service life. Recessed mounting reduces physical damage and simplifies cleaning, contributing to lower lifecycle costs and higher uptime on fleets and offshore facilities.
