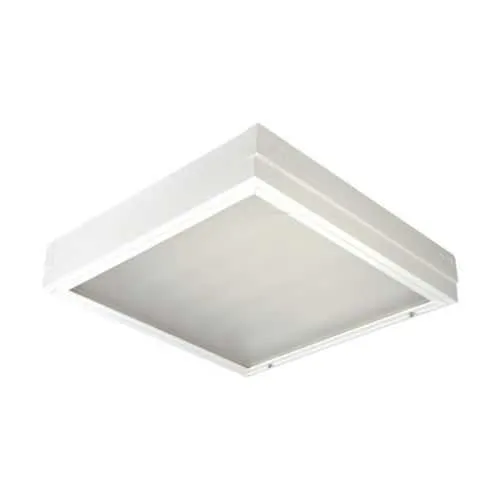

Eaton FT460 Marine Interior Lighting - NEC/CEC
Part Number: FT460
Quick Summary
The Eaton FT460 marine interior lighting delivers reliable four-lamp ceiling illumination for shipboard interiors. Crew spaces demand rugged, corrosion‑resistant fixtures that stay bright with minimal maintenance in harsh marine environments. It meets NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, ensuring compliance for common shipboard applications. By combining proven marine design with energy-conscious 60 Hz operation, this recessed ceiling luminaire supports reliable operations, reduces maintenance downtime, and enables straightforward retrofits in cabins, galleys, and engine rooms. With a 48.13 inch length, 23.88 inch width, and 5.19 inch height, FT460 is designed for recessed ceiling mounting in standard marine interior grids, and it uses a copper-free aluminum housing with an acrylic lens to resist corrosion and UV exposure.
Product Information
Extended Description
FT460 Eaton: Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior, 60 Hz, 2 ft x 4 ft, Acrylic lens, T12HO, Copper-free aluminum, Recessed ceiling mount, 4-lamp, 120 Vac, 60W
Product Name
Eaton Crouse-Hinds series Pauluhn Meridian FT marine interior
Catalog Number
FT460
UPC
662276398139
Product Length/Depth
48.13 in
Product Height
5.19 in
Product Width
23.88 in
Product Weight
33.5 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Lamp length
2 x 4 ft
Light type
T12HO
Number of lamps
4-lamp
Wattage
2 x 18.4W
Voltage rating
120 Vac
Frequency rating
60 Hz
Mounting Method
Recessed ceiling
Material
Copper-free aluminum
Lens material
Acrylic
Eaton Crouse-Hinds FT460 3D drawing
Crouse-Hinds series Pauluhn FT Marine Interior Low Profile Surface Lights catalog page
IF LBL1521 - FT Fluorescent Luminaires
IF LBL1521 - FT Fluorescent Luminaires
Eaton Specification Sheet - FT460
Feature: Four-lamp 2x4 ft fluorescent configuration. Business Impact: Delivers high lumen output with uniform distribution, enabling clearer work and safer navigation in confined vessel spaces. Application: Cabins, crew areas, and galleys where steady brightness improves task performance. Feature: Copper-free aluminum housing with acrylic lens. Business Impact: Enhanced corrosion resistance against salt spray and UV exposure, reducing maintenance cycles and replacement cost. Application: Exterior-adjacent interiors and engine rooms prone to humidity. Feature: Recessed ceiling mounting. Business Impact: Keeps headroom clear in tight decks and complies with standard marine interior grid layouts, simplifying retrofit projects. Application: Overhead lighting in compact spaces. Feature: 120 VAC, 60 Hz electrical compatibility. Business Impact: Seamless integration with standard shipboard electrical systems, minimizing wiring changes and downtime. Application: Vessel-wide retrofits and new-builds. Feature: Energy-conscious design (2 x 18.4W per lamp). Business Impact: Lower total energy consumption and cooler operation, reducing HVAC load and operating costs. Application: Continuous operation in crew areas. Feature: Comprehensive installation resources. Business Impact: Accelerates procurement and on-site setup with CAD drawings, catalogs, and instruction sheets, supporting faster project timelines. Application: Engineering and procurement phases for marine interiors.
Get a Quick Quote for a Eaton FT460
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT460?
Enquire Now
FAQs
FT460 is designed for recessed ceiling mounting, fitting standard marine interior grids. The fixture measures 48.13 in by 23.88 in with a height of 5.19 in and weighs about 33.5 lb, providing a low-profile, maintenance-friendly ceiling solution suitable for cabins, galleys, and crew areas. Installation requires compatible ceiling cutouts and secure mounting to maintain marine-grade integrity.
FT460 uses four T12HO lamps in a 2x4 ft footprint, powered from 120 VAC at 60 Hz. Each lamp contributes to a total low-power load of approximately 36.8 W (2 x 18.4 W per lamp), delivering ample brightness while keeping energy use manageable for vessel electrical systems.
Yes. FT460 is rated for Ordinary/Non-Hazardous Locations under NEC/CEC standards, making it appropriate for typical shipboard interiors such as cabins, corridors, and crew areas where hazardous area classifications do not apply.
FT460 adheres to NEC/CEC standards and is classified for Ordinary/Non-Hazardous Locations, ensuring regulatory compliance for marine interior lighting installations and reducing the risk of non-compliant equipment in shipboard environments.
A full package is available, including 3D CAD drawings, the Crouse-Hinds FT catalog page, installation instructions, and the Eaton specification sheet. These resources help with accurate part identification, proper mounting, and compliant integration into existing shipboard electrical schemas.
