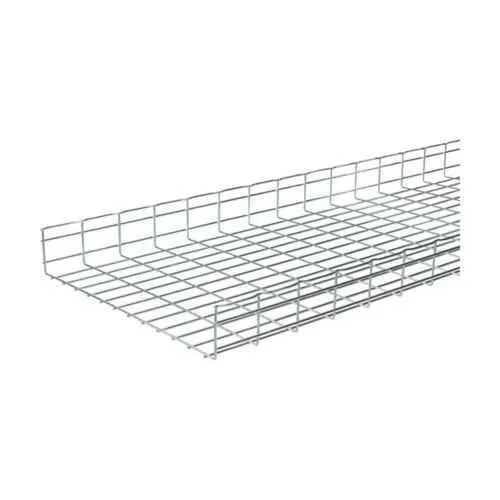

Eaton FT4X18X10ELG Flextray - CSA UL Classified
Part Number: FT4X18X10ELG
Quick Summary
FT4X18X10ELG Flextray is a 4 in deep straight section designed for reliable cable routing in industrial enclosures. Engineers often contend with crowded backplanes, limited mounting space, and the need to maintain airflow; this section helps keep wires organized without sacrificing enclosure space. Certified CSA and UL Classified, and built from electro-plated steel, it delivers dependable performance in demanding environments. Designed for the B-Line Flextray family, it integrates quickly with existing components, supporting scalable layouts and predictable installation times.
Product Information
Extended Description
FT4X18X10ELG Eaton: Eaton B-Line series Flextray 4" deep straight section, Electroplated zinc galvanized, Steel, 71.5" actual area inside tray, 4"deep flex tray
Product Name
Eaton B-Line series Flextray 4" deep straight section
Catalog Number
FT4X18X10ELG
UPC
662516337539
Product Length/Depth
118.312 in
Product Height
4.38 in
Product Width
18 in
Product Weight
21.99 lb
Certifications
CSA UL Classified
Material
Steel
Special features
71.5" area inside tray
Type
4" deep flextray
Finish
Electro-plated
Application
Controlled interior recommended application
Cable Tray Manual - 2014 Version
Cable Tray Manual - 2014 Version
Flextray installation guide
Eaton Specification Sheet - FT4X18X10ELG
Eaton Specification Sheet - FT4X18X10ELG
The 4 in deep straight section provides a generous 71.5 in area inside the tray, enabling dense cable routing while keeping wires organized. This directly reduces congestion, speeds wiring during initial installs, and minimizes future rework as systems expand. Ideal for controlled interior applications in control rooms, switchgear, and equipment housings, it pairs with other Flextray components for scalable layouts. The steel construction with electro-plated finish delivers corrosion resistance and long service life, lowering maintenance costs and supporting compliance with industry standards. With an 18 in width and 118.312 in length, the section aligns with standard rack footprints, simplifying integration with existing B-Line Flextray systems and reducing field adjustments. CSA and UL Classified certifications ensure safe, compliant installations, and installation guides are readily available to verify specifications. The Flextray family compatibility enables mixing straight sections with elbows, fittings, and covers for tailored layouts, with fasteners and spacing guidance from Eaton resources to improve project timelines.
Get a Quick Quote for a Eaton FT4X18X10ELG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT4X18X10ELG?
Enquire Now
FAQs
FT4X18X10ELG is designed to snap into Eaton’s B-Line Flextray ecosystem, matching standard mounting patterns and connector interfaces. It installs with common fasteners and compatible fittings, enabling quick chain-builds of straight sections with elbows and covers. Review the Flextray installation guide for step-by-step mounting heights, support spacings, and recommended fastening hardware to ensure a compliant, repeatable setup.
Key specs include a 4 in depth, 18 in width, and 118.312 in overall length, with a 71.5 in area inside the tray. It is constructed from electro-plated steel and carries CSA and UL Classified certifications. The 4.38 in height and 21.99 lb weight contribute to a sturdy, manageable tray suitable for controlled interior environments.
This straight-section Flextray excels in controlled interior spaces such as control panels, electrical rooms, and switchgear enclosures where organized cables, airflow, and serviceability are priorities. Its corrosion-resistant finish and compatibility with the B-Line family support scalable layouts for growing systems and frequent maintenance cycles.
The FT4X18X10ELG carries CSA and UL Classified certifications, confirming adherence to electrical safety and performance requirements. This reduces red tags in audits, simplifies procurement for regulated facilities, and supports faster approval processes in regulated environments.
Eaton provides installation guides and datasheets for FT4X18X10ELG, including Flextray installation instructions. Using these resources accelerates commissioning, reduces field rework, and extends service life through a durable electro-plated steel finish and easy future expansions within the Flextray system.
