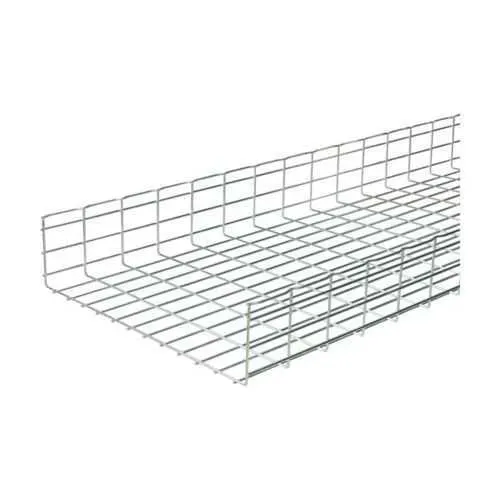

Eaton FT6X18X10ELG Flextray 6" Deep Section - UL Classified
Part Number: FT6X18X10ELG
Quick Summary
Eaton FT6X18X10ELG Flextray is a 6-inch deep straight cable tray section for clean panel cabling. Engineers often contend with tangled wires, limited space, and maintenance bottlenecks in control enclosures. CSA and UL Classified certifications support regulatory compliance for industrial installations. Its electroplated steel and generous 107.3 square inches inside area improve wire routing, while installation remains straightforward, reducing project risk. Partners and installers benefit from proven compatibility with B-Line Series accessories and flexible mounting options. By enabling organized cable management, it supports faster panel assembly, easier future expansions, and improved thermal performance in harsh environments. This makes the FT6X18X10ELG a reliable foundation for high-density wiring in automation and electrical distribution projects.
Product Information
Extended Description
FT6X18X10ELG Eaton: Eaton B-Line series Flextray 6" deep straight section, Electroplated zinc galvanized, Steel, 107.3" actual area inside tray, 6"deep flex tray
Product Name
Eaton B-Line series Flextray 6" deep straight section
Catalog Number
FT6X18X10ELG
UPC
662516337850
Product Length/Depth
118.312 in
Product Height
6.38 in
Product Width
18 in
Product Weight
25.06 lb
Certifications
CSA UL Classified
Material
Steel
Special features
107.3" area inside tray
Type
6" deep flex tray
Finish
Electro-plated
Application
Controlled interior recommended application
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - FT6X18X10ELG
Eaton Specification Sheet - FT6X18X10ELG
Feature: Durable electroplated steel construction provides robust mechanical protection and corrosion resistance. Business impact: Extends service life in harsh environments while minimizing replacement costs. Application: Ideal for automation cabinets, switchgear enclosures, and industrial racks. Feature: 107.3 square inches of usable tray area inside a 6-inch-deep section. Business impact: Increases wire count capacity and routes dense harnesses more efficiently. Application: High-density wiring in control panels and distribution cabinets. Feature: 18-inch width and 118.312-inch length offer flexible run lengths and alignment with standard mounting patterns. Business impact: Reduces on-site cutting, speeds installation, and improves inventory planning. Application: Long runs in manufacturing lines and panel boards. Feature: CSA and UL Classified certifications support compliance with safety and regulatory requirements. Business impact: Enables easier approvals for regulated facilities and reduces project risk. Application: Environments requiring formal certification such as chemical plants, energy facilities, and data centers. Feature: Electro-plated finish and compatibility with Flextray components for quick integration. Business impact: Faster mounting and scalable configurations across projects. Application: Systems utilizing Flextray wire baskets and cable trays. Feature: Availability of installation guides and specification sheets to streamline setup. Business impact: Clear instructions improve install accuracy and reduce fault calls post-deployment. Application: All new installations and upgrades using FT6X18X10ELG.
Get a Quick Quote for a Eaton FT6X18X10ELG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT6X18X10ELG?
Enquire Now
FAQs
Begin by verifying mounting footprint and securing supports compatible with an 18 inch wide tray. Fasten the straight section to rails or brackets, align with adjacent Flextray components, and ensure the 6" depth provides sufficient internal room for your harness. Refer to the Flextray installation guide for step-by-step mounting, cable routing tips, and anchoring instructions to minimize rework.
Key specs include catalog number FT6X18X10ELG, steel construction with an electroplated finish, 18 in width, 6 in depth, 118.312 in length, 25.06 lb weight, and 107.3 in² interior area. Certifications are CSA and UL Classified, with a 6" deep Flextray design suitable for high-density panel wiring.
Yes. The tray provides 107.3 in² of interior area in a 6" deep section, supporting dense cable routing in control panels and automation racks. Its steel, electroplated finish resists corrosion, while the compatibility with Flextray accessories enables scalable configurations for growing installations.
FT6X18X10ELG is CSA and UL Classified, meeting recognized safety and regulatory standards for industrial applications. These certifications facilitate compliance approvals, reduce project risk, and support use in regulated facilities such as manufacturing plants and energy installations.
The electroplated steel finish delivers durable protection against corrosion, lowering maintenance and replacement costs. Combined with clear installation guides and compatibility with Flextray components, it enables faster deployment, predictable maintenance, and a lower total cost of ownership over the panel’s lifetime.
