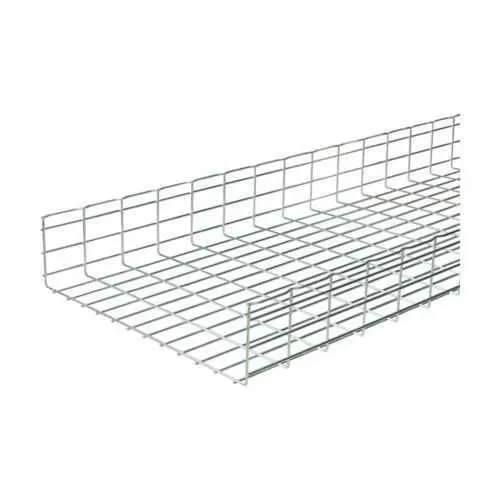

Eaton FT6X18X10HD Flextray - CSA UL Classified
Part Number: FT6X18X10HD
Quick Summary
FT6X18X10HD is an Eaton B-Line flextray section designed for durable cable management in industrial enclosures and outdoor installations. Installers often struggle with corrosion, fitment gaps, and mounting constraints that slow projects. CSA and UL Classified certifications support electrical safety and compliance, while the hot-dip galvanized steel construction delivers exterior durability in harsh environments. This 6in deep tray section addresses exterior and corrosive environments, delivering reliability and cost efficiency while maintaining compatibility with standard Flextray systems. Using this tray simplifies procurement and field assembly, helping projects stay on schedule and reduce maintenance costs. For engineers and buyers, it translates to predictable performance and a clearer parts plan.
Product Information
Extended Description
FT6X18X10HD Eaton: Eaton B-Line series Flextray 6" deep straight section, Hot-dip galvanized, Steel, 107.3" actual area inside tray, 6"deep flex tray
Product Name
Eaton B-Line series Flextray 6" deep straight section
Catalog Number
FT6X18X10HD
UPC
782051643565
Product Length/Depth
118.312 in
Product Height
6.38 in
Product Width
18 in
Product Weight
25.06 lb
Certifications
CSA UL Classified
Material
Steel
Special features
107.3" area inside tray
Type
6" deep flex tray
Finish
Hot-dipped galvanized
Application
Recommended for exterior and corrosive applications
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - FT6X18X10HD
Eaton Specification Sheet - FT6X18X10HD
Feature: The FT6X18X10HD provides a 6in deep straight section with an 18in width and a total length of 118.312in, yielding 107.3 in² of usable interior area. Business impact: The generous interior volume increases cable density while simplifying routing, reducing junctions and field labor. Application: Ideal for large-diameter tray runs in outdoor enclosures, plant houses, and exposed electrical installations where space and access are critical. Feature: Constructed from steel with a hot-dip galvanized finish. Business impact: The durable coating delivers robust corrosion resistance, extending service life in harsh environments and lowering maintenance costs. Application: Suitable for exterior and corrosive applications, including industrial facilities, chemical plants, and outdoor substations. Feature: CSA and UL Classified certifications. Business impact: These approvals support regulatory compliance, safety documentation, and smoother specification reviews. Application: Essential for facilities governed by electrical safety standards and procurement programs that require recognized certifications. Feature: Exterior-ready design and compatibility with standard Flextray systems. Business impact: Ensures quick integration with existing wiring infrastructure, reducing install time and training needs. Application: Use in retrofit projects or new builds where Eaton Flextray components are already in service. Feature: Access to multiple support resources. Business impact: Downloads such as installation guides and specification sheets enable accurate field assembly and verified configurations. Application: Helpful for installers and procurement teams looking to validate parts lists before ordering. Feature: Installation efficiency and lifecycle value. Business impact: The combination of size, finish, and certifications supports faster trenching, fewer spare parts, and longer intervals between maintenance. Application: Delivers predictable performance for mission-critical power and data cabling in demanding environments.
Get a Quick Quote for a Eaton FT6X18X10HD
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FT6X18X10HD?
Enquire Now
FAQs
FT6X18X10HD is designed as a straight section within the Eaton B-Line Flextray family, compatible with standard connectors, fittings, and accessories used across Flextray installations. Its 6in depth, 18in width, and 118.312in length align with common module spacing, enabling seamless field assembly alongside other flex tray components. This reduces the need for custom adapters and accelerates project timelines while ensuring consistent mechanical and electrical performance across the tray network.
The FT6X18X10HD measures 18 inches wide, 6 inches deep, and 118.312 inches long, with an interior area of 107.3 square inches. It is constructed from steel and weighs approximately 25.06 pounds. The catalog number is FT6X18X10HD, and it carries CSA and UL Classified certifications, supporting compliant, durable outdoor cable management.
Yes. The tray is hot-dip galvanized steel, specifically designed for exterior and corrosive environments. This finish provides exceptional corrosion resistance, reducing maintenance needs and extending service life. CSA UL Classified certifications further reinforce safety and compliance for outdoor electrical infrastructure and harsh industrial settings.
Eaton provides comprehensive installation and reference materials, including the Flextray installation guide, cable tray catalog sections, and the specification sheet for FT6X18X10HD. Downloadable PDFs are available to guide field assembly, verify compatibility, and confirm exact part lists before ordering, supporting accurate and efficient project execution.
The 6in deep straight section increases cable density in a single tray, reducing the number of fittings and labor during installation. The hot-dip galvanized finish delivers long-term durability in outdoor or corrosive environments, lowering maintenance costs. With CSA UL Classified certifications, projects meet regulatory requirements, supporting safer, more reliable power and data cabling and a stronger total cost of ownership.
