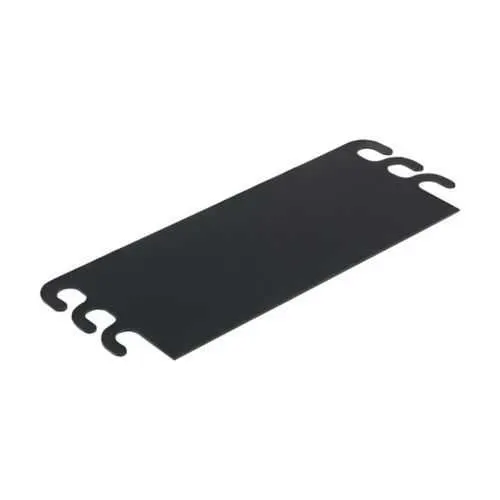

Eaton FTA4RS Flextray Radius Shield - UL Classified
Part Number: FTA4RS
Quick Summary
FTA4RS Flextray radius shield provides rugged cable management protection for industrial racks and cable trays. In crowded equipment rooms, debris, over-bending, and misrouting risk insulation damage and downtime. CSA compliance and UL Classified certification provide confidence in performance and safety across North American electrical projects. The FTA4RS adds durable steel protection and precise dimensions to simplify retrofits and new installs, while preserving Flextray compatibility. This makes the FTA4RS a dependable choice for ongoing compliance and uptime. Engineers also value its compatibility with the Eaton Flextray catalog and official data sheets for quick referencing.
Product Information
Extended Description
FTA4RS Eaton: Eaton B-Line series Flextray radius shield, Steel, Radius shield
Product Name
Eaton B-Line series Flextray radius shield
Catalog Number
FTA4RS
UPC
782051549225
Product Length/Depth
11 in
Product Height
4.3 in
Product Width
4 in
Product Weight
0.7 lb
Compliances
CSA
Certifications
UL Classified
Material
Steel
Type
Radius shield
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - FTA4RS
Eaton Specification Sheet - FTA4RS
Feature: Steel radius shield construction provides rugged protection for cables and trays in demanding environments. Business Impact: The steel build resists impact, maintains cable integrity, and reduces replacement and maintenance costs over the life of the installation. Application: Ideal for Eaton B-Line Flextray systems in data centers, manufacturing floors, and industrial enclosures. Feature: Precise dimensions and compact form factor. Business Impact: The 11 in length, 4 in width, and 4.3 in height align with standard Flextray radius sections, enabling predictable planning and faster installs. Application: Retrofit projects and new builds where space is constrained. Feature: Radius shield geometry for cable protection. Business Impact: Shield maintains routing integrity, reduces abrasion, and simplifies inspection—a key factor in compliance audits. Application: Use around bends and radius sections of cable trays in control rooms and on equipment. Feature: Certifications and compliance. Business Impact: UL Classified certification paired with CSA compliance delivers regulatory assurance, supplier qualification, and risk mitigation for North American projects. Application: Suitable for electrical installations requiring recognized standards. Feature: Compatibility and installation support. Business Impact: Direct compatibility with Flextray components and access to installation guides and datasheets reduces engineering time and avoids part-number errors. Application: Use with Flextray wire basket sections; reference the Eaton Flextray catalog and installation guide when planning the rack. Feature: Lightweight yet sturdy. Business Impact: The 0.7 lb weight supports efficient handling during field installs, lowering labor costs and accelerating project schedules. Application: Any on-site application where speed and safety matter.
Get a Quick Quote for a Eaton FTA4RS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FTA4RS?
Enquire Now
FAQs
Start by identifying the radius section of your Flextray run and align the FTA4RS with the tray bend. Attach using the manufacturer’s recommended fasteners from the Flextray installation guide, ensuring the shield sits flush to the tray surface. Verify fitment and clearance before routing cables and testing for compliant spacing.
The FTA4RS is designed for Eaton B-Line Flextray systems and fits standard radius sections within the Flextray wire basket catalog. With its 11 in length, 4 in width, and 4.3 in height, it complements existing trays and supports consistent cable routing, reducing rework when retrofitting in established layouts. This reduces install time and guards against misalignment.
The radius shield delivers durable protection for cables at bends, minimizing abrasion and protecting insulation in demanding environments. It contributes to safer, cleaner routing, easier inspections, and longer tray life. Operators benefit from fewer maintenance cycles and more reliable system performance in data centers, manufacturing floors, and control-room installations across critical infrastructure.
Yes. The FTA4RS carries UL Classified certification and CSA compliance, reflecting adherence to recognized North American safety standards. This helps manufacturers meet regulatory requirements, simplifies supplier qualification, and provides assurance during audits. When used with the Eaton Flextray catalog and installation guides, installation remains consistent with documented safety practices for critical industrial projects.
Investing in the FTA4RS radius shield yields tangible returns through reduced downtime, fewer cable damage events at bends, and lower field labor over time. Its durable steel construction and certified safety features support longer service intervals, easier inspections, and faster upgrades for growing facilities, translating into predictable operating costs and improved uptime.
