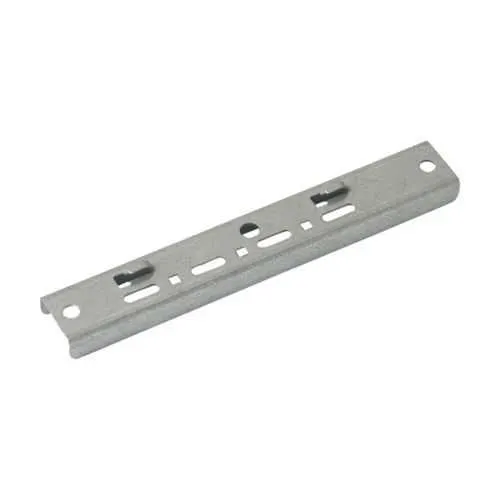

Eaton FTB18CTHDG Flextray trapeze hanger - cULus Listed
Part Number: FTB18CTHDG
Quick Summary
FTB18CTHDG is a Flextray conduit trapeze hanger for secure cable tray support in industrial facilities. Many teams struggle with corrosion resistance, alignment, and maintenance when expanding cable management systems. cULus Listed certification ensures electrical safety compliance, while hot-dipped galvanized steel offers durable outdoor and damp-environment performance. This combination supports faster installation, reduces maintenance costs, and aligns with Eaton B-Line Flextray ecosystems for scalable cable management. Engineers value the precise dimensions and the center trapeze mounting pattern for predictable spacing and reliable load distribution. Designed for compatibility with SB301-1/2 X 8 threaded rod protector, it streamlines installation and reduces field adjustments on site.
Product Information
Extended Description
FTB18CTHDG Eaton: Eaton B-Line series Flextray conduit trapeze hanger, Used with (SB301-1/2 X 8), Hot dip galvanized, Steel, 18"center trapeze hanger
Product Name
Eaton B-Line series Flextray conduit trapeze hanger
Catalog Number
FTB18CTHDG
UPC
782051668278
Product Length/Depth
18.63 in
Product Height
1.77 in
Product Width
0.78 in
Product Weight
0.61 lb
Certifications
cULus Listed
Material
Steel
Type
Center trapeze hanger
Finish
Hot-dipped galvanized
Application
Used with (SB301-1/2 X 8) threaded rod protector
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - FTB18CTHDG
Eaton Specification Sheet - FTB18CTHDG
Feature: Steel construction with hot-dipped galvanized finish. Business Impact: Maximum corrosion resistance in wet or outdoor environments reduces maintenance frequency and extends service life. Application: Ideal for Flextray conduit runs in industrial facilities where moisture exposure is a concern and long-term performance is required. Feature: Center trapeze hanger design. Business Impact: Simplifies alignment and load distribution, speeding up installation and ensuring code-compliant support spacing. Application: Works seamlessly with standard Flextray installations to maintain consistent tray elevation across runs. Feature: 18.63 in product length with compact width and height. Business Impact: Optimized footprint supports dense cable management layouts without sacrificing strength. Application: Fits tight data center or manufacturing floor spaces while maintaining robust support. Feature: 0.61 lb weight and steel composition. Business Impact: Lightweight, easy handling during installation reduces labor time and handling injury risk. Application: Suitable for rapid retrofits or additions to existing Flextray systems without heavy equipment. Feature: cULus Listed and hot-dipped galvanized finish. Business Impact: Compliance with electrical safety standards and superior corrosion resistance lowers risk and lifecycle costs. Application: Essential for installations requiring safety certifications and durable finishes in variable environments. Feature: Compatibility with SB301-1/2 X 8 threaded rod protector. Business Impact: Streamlines procurement and reduces compatibility issues, enabling faster project turnover. Application: Integrates directly into Eaton Flextray configurations for scalable cable management.
Get a Quick Quote for a Eaton FTB18CTHDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FTB18CTHDG?
Enquire Now
FAQs
To install, position the center trapeze hanger at the desired spacing along the Flextray run, align with the SB301-1/2 X 8 threaded rod protector, and secure using standard fasteners appropriate for hot-dipped galvanized steel. Verify alignment and load distribution, then tighten to specification to maintain tray stability and safety compliance. This process minimizes field adjustments and speeds up commissioning on complex cable management runs.
FTB18CTHDG combines hot-dipped galvanized steel with cULus safety certification, delivering durable protection against corrosion and electrical safety compliance. The 18.63 in length and center trapeze design ensure reliable support in outdoor or damp environments, while maintaining clean alignment with Flextray components for ongoing system integrity and low maintenance over time.
Yes. The FTB18CTHDG is designed specifically for Eaton Flextray installations, functioning as a center trapeze hanger that pairs with SB301-1/2 X 8 threaded rod protectors. This compatibility supports scalable cable management, reduces inventory variety, and ensures consistent mounting geometry across new and retrofit Flextray runs.
FTB18CTHDG carries the cULus Listed certification, indicating compliance with applicable electrical safety standards. The product’s hot-dipped galvanized steel construction further supports long-term durability in demanding environments, which is a critical consideration for industrial installations seeking reliable, code-compliant hardware for cable management.
Key specifications include a product length/depth of 18.63 in, height of 1.77 in, width of 0.78 in, and weight of 0.61 lb. Made from steel with a hot-dipped galvanized finish, the FTB18CTHDG provides a compact yet sturdy center trapeze hanger suitable for dense Flextray layouts and precise mounting.
