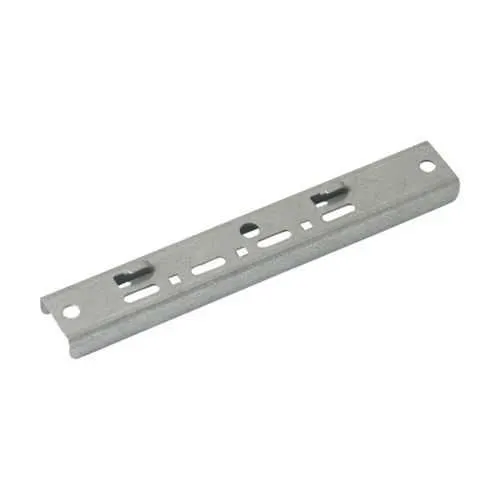

Eaton FTB20CT Conduit Trapeze Hanger - cULus Listed
Part Number: FTB20CT
Quick Summary
Eaton FTB20CT Conduit Trapeze Hanger provides secure support for Flextray systems in industrial cable management. Installers often contend with alignment, vibration, and corrosion risks that slow commissioning. The product is cULus Listed, and its pre-galvanized steel body supports long service life in demanding environments. Designed to pair with SB301-1/2 x 8 threaded rod protectors, it promotes fast, compliant installation and scalable cable management in demanding environments. By supporting a 23.56 in length with a compact 1.77 in height, it reduces footprint while maintaining strength. Its 0.78 in width and 1.96 lb weight offer predictable handling during installation and ongoing maintenance, making it a reliable choice for industrial electrical installs.
Product Information
Extended Description
FTB20CT Eaton: Eaton B-Line series Flextray conduit trapeze hanger, Used with (SB301-1/2 X 8) threaded rod protector, Pregalvanized zinc finish, Steel, 20"center trapeze hanger
Product Name
Eaton B-Line series Flextray conduit trapeze hanger
Catalog Number
FTB20CT
UPC
782051562538
Product Length/Depth
23.56 in
Product Height
1.77 in
Product Width
0.78 in
Product Weight
1.96 lb
Certifications
cULus Listed
Material
Steel
Type
Center trapeze hanger
Finish
Pre-galvanized
Application
(SB301-1/2 x 8) threaded rod protector
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - FTB20CT
Eaton Specification Sheet - FTB20CT
Feature: Center trapeze hanger design with 20 inches center spacing and compatibility with SB301-1/2 x 8 threaded rod protectors. Business Impact: Simplifies alignment and reduces installation time, lowering labor costs while ensuring code-compliant spacing in Flextray installations. Application: Ideal for industrial cable tray runs in manufacturing and data centers, supporting fast wiring alongside accessories. Feature: Steel construction with a pre-galvanized finish. Business Impact: Delivers robust durability and corrosion resistance, extending service life in harsh environments and reducing maintenance cycles. Application: Suitable for wet or dusty production floors and outdoor-rated interior spaces within electrical rooms. Feature: Accurate dimensional footprint (23.56 in length, 1.77 in height, 0.78 in width) and 1.96 lb weight. Business Impact: Predictable handling during rack installs and easy budgeting for material requirements. Application: Enables precise planning for tray routes and overhead supports. Feature: cULus Listed certification. Business Impact: Provides North American safety compliance, streamlining procurement and reducing risk for quality audits. Application: Fits standard electrical safety programs and inspection regimes for cable management. Feature: Compatibility with Flextray wire management systems. Business Impact: Ensures seamless integration with Eaton’s Flextray ecosystem, improving reliability and reducing compatibility concerns. Application: Supports scalable system design across plant floors and modular expansion strategies.
Get a Quick Quote for a Eaton FTB20CT
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FTB20CT?
Enquire Now
FAQs
Begin by verifying SB301-1/2 x 8 threaded rod protectors are securely anchored. Attach the FTB20CT center trapeze hanger to the protector, aligning with the Flextray run. Space the hangers at approximately 20 inches center to maintain stability. Tighten fasteners to spec, then route Flextray channels accordingly. The pre-galvanized steel construction simplifies alignment and reduces rework, while cULus Listed certification supports compliance during audits.
Key specs include steel construction with a 23.56 inch length, 1.77 inch height, 0.78 inch width, and a 1.96 pound weight per hanger. These dimensions provide a predictable footprint for overhead runs, enabling accurate load planning and reducing sag risk in longer cable tray spans. The center trapeze design concentrates load at the center, improving stability for conduit and Flextray configurations.
Yes. The FTB20CT uses steel with a pre-galvanized finish, offering enhanced corrosion resistance and durability suitable for harsh factory floors and potentially damp spaces. Its compatibility with SB301-1/2 x 8 protectors and native cULus Listing further supports reliable operation in demanding electrical installations, including high-vibration environments commonly found in manufacturing and processing facilities.
cULus Listed indicates compliance with UL safety standards and North American electrical code requirements, validated by UL certification. This reduces regulatory risk, simplifies spec approval, and supports consistent performance in electrical installations. For the FTB20CT, cULus Listing confirms the hanger’s suitability for conduit and cable tray support within industrial facilities.
The FTB20CT’s durable steel, pre-galvanized finish, and standardized dimensions minimize replacement frequency and maintenance downtime. Its compatibility with common rod protectors speeds installation and future reconfigurations, reducing labor costs during upgrades. Over the system life, fewer maintenance interruptions and longer service intervals translate to improved uptime and return on investment.
