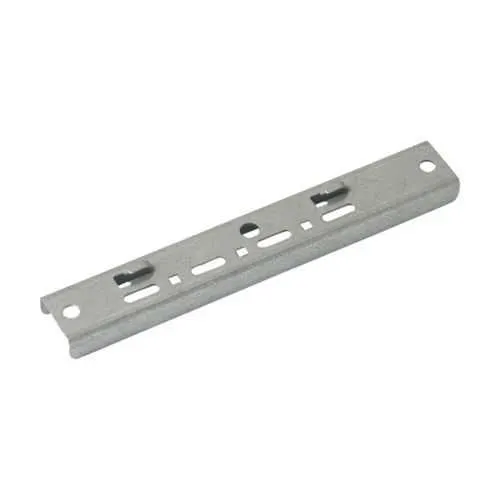

Eaton FTB24CTHDG Conduit Trapeze Hanger - cULus Listed
Part Number: FTB24CTHDG
Quick Summary
Eaton FTB24CTHDG conduit trapeze hanger is designed to support Flextray cable trays in industrial enclosures. Its center-trapeze mounting simplifies installation in tight spaces and minimizes field adjustments. Certified cULus Listed and UL-compliant, it meets essential electrical safety standards, while the hot-dipped galvanized steel resists corrosion in harsh environments. Compatible with SB301-1/2 x 8 threaded rod protectors and standard Flextray systems, it helps engineers streamline procurement, inventory management, and installation workflows. This combination of robustness and compatibility supports reliable, code-compliant cable routing across manufacturing floors, data centers, and automation facilities seeking long service life and predictable maintenance costs.
Product Information
Extended Description
FTB24CTHDG Eaton: Eaton B-Line series Flextray conduit trapeze hanger, Used with (SB301-1/2 X 8) threaded rod protector, Hot dip galvanized, Steel, Center trapeze hanger
Product Name
Eaton B-Line series Flextray conduit trapeze hanger
Catalog Number
FTB24CTHDG
UPC
782051697827
Product Length/Depth
27.5 in
Product Height
1.77 in
Product Width
0.78 in
Product Weight
2.25 lb
Certifications
cULus Listed
Material
Steel
Type
Center trapeze hanger
Finish
Hot-dipped galvanized
Application
(SB301-1/2 x 8) threaded rod protector
Flextray wire basket section of cable tray catalog
Flextray wire basket section of cable tray catalog
Flextray installation guide
Eaton Specification Sheet - FTB24CTHDG
Eaton Specification Sheet - FTB24CTHDG
Feature: Hot-dipped galvanized steel construction offers superior corrosion resistance, which translates to longer service life in demanding environments. Benefit: Reduces maintenance frequency and total cost of ownership for cable management systems. Application: Ideal for harsh factory floors and outdoor-rated Flextray installations where moisture and chemicals are present. Feature: Center trapeze hanger design minimizes hardware footprint and simplifies alignment, lowering installation time and reducing field adjustments. Benefit: Accelerates project timelines and improves installation accuracy. Application: Works with SB301-1/2 x 8 threaded rod protectors to secure runs without compromising accessibility. Feature: Precise dimensions—27.5 in length, 0.78 in width, 1.77 in height—and a 2.25 lb weight enable accurate layout planning and load calculations. Benefit: Predictable mounting locations and easier inventory management. Application: Supports modular cable routing in conveyor, automation, and control panel areas. Feature: Catalog number FTB24CTHDG ensures procurement consistency and traceability. Benefit: Streamlines purchasing, reduces part misidentification, and speeds reordering. Application: Fits standard Eaton Flextray sections with minimal custom fabrication. Feature: Certifications include cULus Listed, reinforcing compliance with electrical safety standards. Benefit: Enables safer installations and smoother approvals in regulated facilities. Application: Essential for electrical installations in industrial automation environments requiring verified safety credentials.
Get a Quick Quote for a Eaton FTB24CTHDG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FTB24CTHDG?
Enquire Now
FAQs
The FTB24CTHDG is designed to work with SB301-1/2 x 8 threaded rod protectors and standard Flextray components. Plan for a center-hanger configuration to align with existing support rods, ensure secure mounting using compatible hardware, and verify clearance for cable routing. The hot-dipped galvanized finish provides corrosion resistance in typical plant environments, reducing rework due to weather or chemical exposure.
Yes. The center trapeze hanger is manufactured from hot-dipped galvanized steel, which offers superior corrosion resistance for challenging environments found in manufacturing plants, warehouses, or exposed outdoor installations. While not rated for all weather extremes, its finish extends service life in damp, oily, or mildly corrosive settings typical of industrial automation facilities.
Key specs include a length of 27.5 inches, width of 0.78 inches, height of 1.77 inches, and a weight of 2.25 pounds. The component is made of steel, finished in hot-dipped galvanized coating, with a catalog number of FTB24CTHDG. It is intended for use as a center trapeze hanger in Eaton Flextray cable tray systems and is cULus Listed.
The FTB24CTHDG is cULus Listed, indicating compliance with recognized electrical safety standards for components used in wiring systems. This certification supports regulatory approvals, helps ensure safe operation within electrical cabinets and industrial enclosures, and reduces risk during audits or inspections, which is critical for high-stakes automation and energy management projects.
Choosing Eaton FTB24CTHDG provides standardized, readily available hardware that aligns with existing Flextray systems, improving procurement efficiency and inventory control. The corrosion-resistant finish lowers maintenance costs, while the precise dimensions and compatibility with SB301-1/2 x 8 protectors shorten installation time and minimize field alterations, delivering faster project completion and more predictable lifecycle costs.
