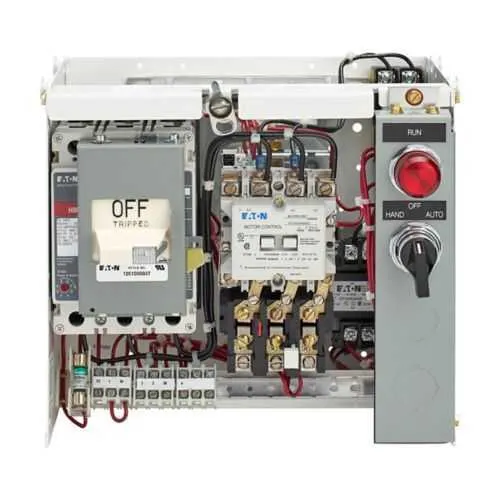

Eaton FTF1A12 Motor Control Center - UL Listed
Part Number: FTF1A12
Quick Summary
Eaton FTF1A12 motor control center is a compact MCC solution designed for single-feeder panels in automation and manufacturing environments. Engineers often contend with tight space, wiring complexity, and downtime when upgrading motor control components. UL Listed certification reinforces safety, while Eaton's warranty policy provides long-term reliability during installation or shipment windows. This MCC also aligns with industry standards for panel safety and performance, offering a dependable, scalable solution. By combining a 12 in unit size with a 15 A trip rating and slider-access operation, it delivers tangible business value for machine builders and panel shops seeking efficient, compliant control solutions.
Product Information
Extended Description
FTF1A12 Eaton: Eaton type W motor control center, Type W Single feeder Motor Control Center 15A trip rating, HFD circuit breaker, Single feeder, Slider handle mechanism, 12-inch unit size
Product Name
Eaton type W motor control center
Catalog Number
FTF1A12
UPC
786685434810
Product Length/Depth
22 in
Product Height
16 in
Product Width
25 in
Product Weight
27 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Circuit breaker type
HFD
Feed type
Single feeder
Operation
Slider handle
Size
12 in
Trip rating
15 A
Feature → Business Impact → Application: The FTF1A12 uses a Type W motor control center design with a single feeder and HFD circuit breaker, enabling precise current protection for compact automation enclosures. This translates to reduced risk of nuisance trips and improved uptime on production lines, ideal for machine control panels in food & beverage, packaging, and general manufacturing. Feature → Business Impact → Application: The 12 in unit size, combined with a 22 in depth, 16 in height, and 25 in width footprint, maximizes panel density while preserving accessibility for maintenance technicians, reducing wiring clutter and simplifying retrofits. Feature → Business Impact → Application: Slider handle operation enhances safe, quick access during commissioning and maintenance, supporting faster start-ups and safer routine checks in industrial automation environments. Feature → Business Impact → Application: UL Listed certification and 15 A trip rating on an HFD breaker deliver compliance assurance for controlled equipment and motors, helping ensure code-conforming installations in panel shops and OEMs. Feature → Business Impact → Application: Compatibility with Eaton Type W MCC ecosystems minimizes integration risk and accelerates procurement for panel builders, contributing to lower total cost of ownership and streamlined spare-part strategy. Feature → Business Impact → Application: Warranty coverage and Eaton’s literature, including the specification sheet, provide confidence during procurement and long-term support, reducing risk in capital projects and maintenance budgeting.
Get a Quick Quote for a Eaton FTF1A12
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FTF1A12?
Enquire Now
FAQs
FTF1A12 is designed as a Type W motor control center with a single feeder configuration, slider handle operation, and a 12 in unit size. For best results, reference Eaton's specification sheet (FTF1A12) and ensure panel cutouts and mounting standards align with the 22 in depth, 16 in height, and 25 in width footprint to maintain clearance and wiring access.
The MCC uses an HFD circuit breaker with a 15 A trip rating and is configured for a single feeder. The product name, catalog number FTF1A12, UPC 786685434810, and UL Listed certification support safe, compliant operation in standard industrial loads.
Yes. The FTF1A12 is intended for factory automation and general machine control applications, offering a compact footprint, 12 in size, and a single feeder arrangement that aligns with typical automation panel architectures and maintenance workflows.
UL Listed is the primary certification noted for this product, ensuring compliance with recognized safety standards for electrical equipment installed in motor control centers and related enclosures.
Eaton’s warranty policy 25-000 covers this product with one year from installation or eighteen months from shipment, whichever occurs first, complemented by Eaton’s specification sheet and support resources for installation guidance and spare-part planning.
