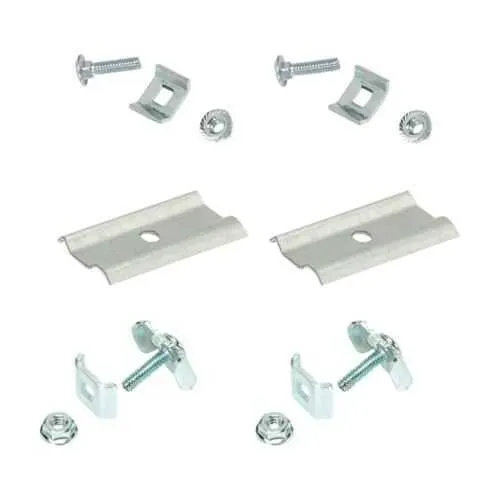

Eaton FTS22SKBLE Splice Kit - UL Classified
Part Number: FTS22SKBLE
Quick Summary
The Eaton FTS22SKBLE splice kit enables quick, secure joining of Flextray systems in commercial electrical installations. Installers often struggle with misalignment and downtime when splicing large trays, and this kit simplifies setup, reduces waste, and speeds maintenance. CSA compliance and UL Classified certification provide critical safety and regulatory assurances for data centers and manufacturing facilities. With compatibility across 12, 18, 20 and 24 inch system widths and a durable steel, flat black powder coat, it delivers reliable cable management while lowering total project costs. This solution also helps technicians standardize installs, improving procurement and field support. In practice, teams report faster quad-rail splices and fewer callbacks.
Product Information
Extended Description
FTS22SKBLE Eaton: Eaton B-Line series Flextray splice and splice kit, Used with 12",18", 20"and 24"system widths, Steel, Black powdercoat, Splice plate kits for 2"deep flextray
Product Name
Eaton B-Line series Flextray splice and splice kit
Catalog Number
FTS22SKBLE
UPC
782051641752
Product Length/Depth
1 in
Product Height
1 in
Product Width
2 in
Product Weight
0.0425 lb
Compliances
CSA
Certifications
UL Classified
Material
Steel
Special features
Used with 12",18", 20" & 24" system widths
Type
Splice plate kits for 2" deep flextray
Finish
Flat black powder coat
Cable Tray Manual - 2014 Version
Cable Tray Manual - 2014 Version
Flextray installation guide
Eaton Specification Sheet - FTS22SKBLE
Eaton Specification Sheet - FTS22SKBLE
Compatibility across 12", 18", 20" and 24" Flextray system widths means a single splice kit can cover most projects, reducing SKU variance and simplifying procurement. This standardization translates to fewer vendor touchpoints, simpler stocking, and faster turnarounds on site. In field conditions, installers benefit from consistent alignment points and uniform hardware interfaces, enabling repeatable joins and predictable performance across facilities from data centers to manufacturing floors. The splice plate kit is engineered for 2" deep Flextray, delivering a precise fit and even load transfer across joined sections. By aligning with the tray flanges and maintaining a clean seam, it minimizes vibration and potential cabling damage. On retrofit jobs, the kit reduces cutting errors and rework, helping commissioning teams meet tight commissioning windows. Constructed from steel with a flat black powder coat, the kit offers robust corrosion resistance and durable appearance in demanding environments. The flat finish resists fingerprints and helps conceal minor scuffs, while the underlying steel delivers long-term structural integrity under heavy cables and heat. This combination lowers maintenance frequency and extends service life in harsh facilities. Compact dimensions—1 inch in depth, 1 inch in height, and 2 inches in width—coupled with a light 0.0425-pound weight, enable easy handling in confined spaces. The small footprint minimizes space penalties within crowded cable trays and reduces installation time, especially when multiple splices are required in dense electrical rooms. CSA compliance and UL Classified certification provide essential safety and regulatory assurances for critical environments such as data centers and manufacturing floors. By using Eaton’s FTS22SKBLE, install teams maintain consistent quality, simplify inspections, and reduce risk during audits. The kit’s compatibility with the B-Line Flextray family ensures a standardized approach to cable management across projects.
Get a Quick Quote for a Eaton FTS22SKBLE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FTS22SKBLE?
Enquire Now
FAQs
The FTS22SKBLE supports 12", 18", 20" and 24" Flextray system widths, allowing a single splice kit to cover most projects. This compatibility reduces SKU variety, simplifies procurement, and enables field teams to reuse hardware across diverse installations, improving scheduling and reducing lead times.
Key considerations include ensuring alignment with 2" deep Flextray sections, using compatible splice plates for secure joins, and following the Flextray installation guidance. The kit’s compact dimensions help in tight cable runs, while its flat black powder coat finish aids durability and service life in harsh environments.
The FTS22SKBLE carries CSA compliance and UL Classified certification. These certifications provide regulatory validation and safety assurance, which is critical for audits in data centers and industrial facilities and helps ensure the splice assemblies meet industry standards for cable management.
Yes. The standardized, 2" deep splice plates simplify alignment and reduce rework, which shortens installation windows. By enabling quick joins across multiple width configurations, the kit minimizes field adjustments and callbacks, delivering measurable uptime improvements on busy construction and retrofit projects.
The steel construction with a flat black powder coat provides corrosion resistance and long-term durability. Regular inspection of joints for security and wear is advised, but the kit’s robust finish helps maintain appearance and integrity over time, reducing the frequency of replacement or refurbishment in demanding plant environments.
