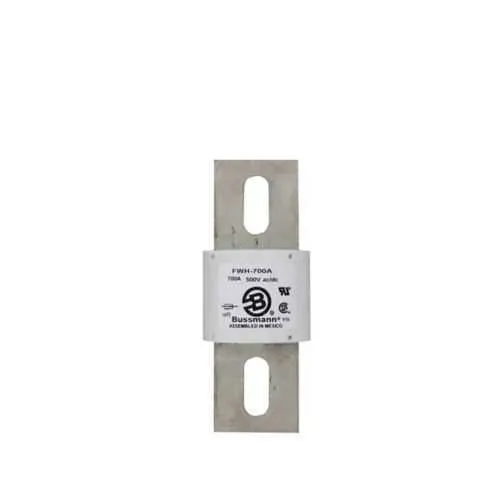

Eaton FWH-700A high speed fuse - CSA Certified
Part Number: FWH-700A
Quick Summary
Eaton FWH-700A high speed fuse protects industrial power circuits in control panels and motor drives. Engineers often struggle with nuisance trips and downtime when fuses fail to clear faults promptly. With a 700 A RMS rating and 200 kAIC interrupt at 1000 Vac (and 50 kAIC at 500 Vdc), it handles high transients while protecting downstream equipment. This device is CSA Certified and UL Recognized, CE marked, and RoHS compliant, aligning with global safety and sustainability standards. For panel builders and OEMs, it delivers reliable protection with straightforward installation, reducing spare parts inventories and maintenance costs while supporting durable operation in demanding environments.
Product Information
Extended Description
FWH-700A Eaton: Eaton Bussmann series FWH high speed fuse, 700A RMS, 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud
Product Name
Eaton Bussmann series FWH high speed fuse
Catalog Number
FWH-700A
UPC
051712150231
Product Length/Depth
6.5 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
1.895 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified UL Recognized
Amperage Rating
700A RMS
Interrupt rating
200 kAIC at 1000 Vac 50 kAIC at 500 Vdc
Watt losses
120 W
Packaging type
Standard
Connection
Blade end x blade end
Fuse indicator
Non Indicating
Mounting method
Stud
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FWH-700A
FWH-700A~BUSS HIGH SPEED FUSE
FWH-700A~BUSS HIGH SPEED FUSE
Datasheet - FNQ-30
Feature: 700 A RMS amperage rating provides protection for high-load industrial circuits. Business Impact: Enables selective coordination with downstream fuses and circuit breakers, reducing the risk of unnecessary outages. Application: Ideal for switchgear, motor drives, and heavy automation loads. This enables improved uptime and safer fault isolation in high-power environments, while leveraging Bussmann series compatibility for streamlined procurement and stocking. Long-tail keywords addressed include high current fuse, 700A RMS protection, and industrial control panel protection. Feature: 200 kAIC at 1000 Vac and 50 kAIC at 500 Vdc. Business Impact: Supports large fault currents without compromising selectivity, lowering the chance of cascading trips and equipment damage. Application: Power distribution, feeders, and servo drive protection in manufacturing lines. The result is reduced downtime and enhanced equipment longevity. Feature: Connection and mounting options — blade end x blade end and stud mounting. Business Impact: Installation flexibility simplifies retrofits and OEM panel builds, accelerating project timelines and improving maintainability in field conditions. Application: OEM assemblies, switchgear upgrades, and retrofit projects. Feature: Compliance and certifications — CE, RoHS, CSA Certified, UL Recognized. Business Impact: Regulatory alignment minimizes compliance risk, speeds customer approvals, and supports international markets. Application: Global deployments across automotive, packaging, and process industries. Feature: Watt losses and physical specs — 120 W, 6.5 in length, 2.5 in height and width, weight 1.895 lb. Business Impact: Predictable thermal performance and compact footprint enable efficient panel layouts and reduced enclosure heat load. Application: Enclosed control panels and compact power distribution units. Feature: Non Indicating fuse, Standard packaging. Business Impact: Simple replacement in life-cycle maintenance without indication-related false positives; standard packaging reduces procurement complexity. Application: Routine service and stock management in maintenance contracts and service centers.
Get a Quick Quote for a Eaton FWH-700A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FWH-700A?
Enquire Now
FAQs
The FWH-700A uses blade end x blade end connections and is designed for stud mounting as well. For panel installs, align the blade terminals with the bus bars, tighten lugs to manufacturer torque specs, and ensure proper clearance for heat. Always follow the Eaton datasheet and your panel’s engineering instructions to maintain safe, reliable operation.
The device is rated for 700 A RMS with an interrupt rating of 200 kAIC at 1000 Vac and 50 kAIC at 500 Vdc. These ratings support quick fault interruption in high-current systems, reducing arc fault exposure and improving protection coordination in power distribution and motor-drive applications.
Yes. The FWH-700A is CSA Certified and UL Recognized, CE Marked, and RoHS compliant, which helps streamline regulatory approvals for global deployments. This makes it suitable for industrial panels, OEM assemblies, and field retrofits where strict safety and environmental requirements apply.
This fuse supports blade end x blade end connections and stud mounting, offering installation flexibility. When retrofitting, verify spare spacing, bus-bar compatibility, and mounting clearance. Use the standard packaging and follow the datasheet for torque and lead management to ensure reliable electrical and mechanical performance.
The FWH-700A provides fast fault clearance, reducing downtime and maintenance costs. Its regulatory compliance and robust interrupt capabilities improve protection coordination, lowering the risk of cascading trips. Although a higher upfront cost may be noted, the total cost of ownership decreases through fewer outages, simpler stocking, and longer equipment life.
