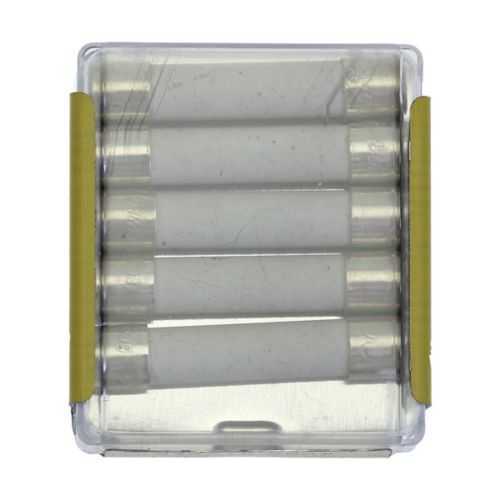

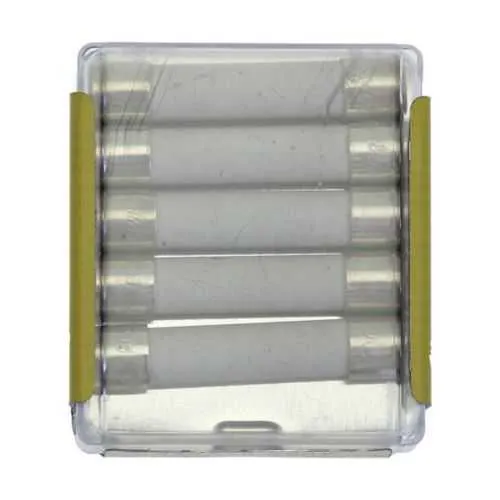

Eaton FWH5-010A6F High Speed Fuse - 50 kAIC CSA Certified
Part Number: FWH5-010A6F
Quick Summary
Eaton FWH5-010A6F high speed fuse protects DC and AC circuits in industrial control panels and machinery. In fast-moving production environments, selecting a fuse that responds quickly yet avoids nuisance tripping is essential to maintain uptime and reduce costly unplanned downtime. This component is CE marked, RoHS compliant, and CSA certified, helping you meet global safety and environmental requirements with confidence. For engineers and procurement teams, reliable protection translates to lower maintenance costs and tighter control over electrical noise and arc flash risk. By combining a compact form factor with proven performance, this fuse supports efficient panel design, easy installation, and scalable protection across applications.
Product Information
Extended Description
FWH5-010A6F Eaton: Eaton Bussmann series FWH high speed fuse, Electric engineering, 500V, 10A, 50 kAIC, Non Indicating, High speed fuse - FWH5-010A6F
Product Name
Eaton Bussmann series FWH high speed fuse
Catalog Number
FWH5-010A6F
UPC
051712532426
Product Length/Depth
1.25 in
Product Height
0.25 in
Product Width
0.25 in
Product Weight
0.022 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified
Amperage Rating
10 A
Interrupt rating
50 kAIC
Voltage rating
500 V
Packaging type
Standard
Fuse indicator
Non Indicating
Special features
Electric engineering
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FWH5-010A6F
Feature: High speed clearing capability. Business impact: Faster fault interruption minimizes damage to downstream components and reduces downtime. Application: Motor drives, power supplies, and control circuits in automated lines. Feature: 500 V rating with 10 A current rating and 50 kAIC interrupt capacity. Business impact: Robust protection for medium-voltage control systems and short-circuit scenarios without nuisance trips. Application: Industrial automation panels and equipment fed from 480–500 V systems. Feature: Compact form factor (1.25 in length, 0.25 in width/height). Business impact: Easier panel layouts, reduced space requirements, and simplified replacement in crowded enclosures. Application: Retrofit and new builds in compact switchgear and control panels. Feature: Non-indicating design. Business impact: Lower cost and maintenance in environments where visual indicators are not required or can be integrated remotely. Application: Sealed or cluttered control cabinets where indicators may cause false positives. Feature: Certifications and compliance (CE, RoHS, CSA). Business impact: Streamlined regulatory audits and cross-border deployments. Application: Global manufacturing facilities with strict safety and environmental standards.
Get a Quick Quote for a Eaton FWH5-010A6F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FWH5-010A6F?
Enquire Now
FAQs
Install the FWH5-010A6F in standard Bussmann series fuse holders or compatible circuit protection panels. Ensure correct footprint and clearances in compact enclosures, and verify the mounting orientation does not impede heat dissipation. Replace only with the same catalog number to maintain electrical ratings and protective characteristics.
The 500 V rating defines the maximum operating voltage the fuse can interrupt safely, while the 50 kAIC interrupt rating indicates the maximum fault current the fuse can interrupt without damage. Together, they ensure protection for medium-voltage control circuits and fast short-circuit events in industrial environments.
Yes. The 10 A current rating with 50 kAIC interrupt capability suits many motor control circuits and supply rails in automation panels, providing rapid fault clearing to protect drives and upstream electronics while minimizing nuisance trips under normal inrush conditions.
This fuse is CE marked, RoHS compliant, and CSA certified, supporting regulatory compliance in Europe, North America, and other regions. These certifications ease audits and simplify cross-border procurement for OEMs and integrators.
The non-indicating design reduces maintenance complexity in dense cabinets, while its compact size and reliable performance minimize downtime and replacement costs. The combination of high interrupt rating and global certifications also lowers risk and enhances long-term return on investment for automation projects.
