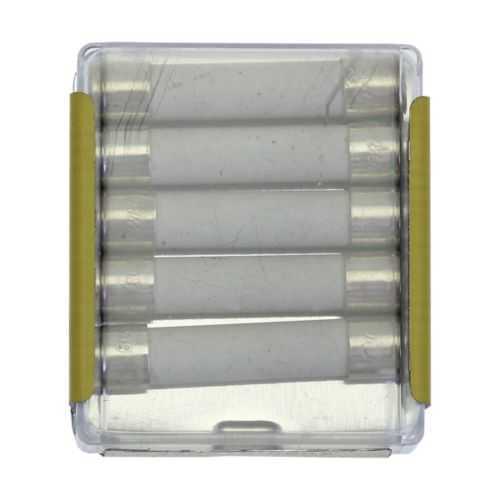

Eaton FWH5-016A6F High Speed Fuse - 50 kAIC CSA Certified
Part Number: FWH5-016A6F
Quick Summary
The Eaton FWH5-016A6F high speed fuse protects electrical systems by interrupting overcurrent quickly, supporting reliable protection in industrial controls. Engineers often confront nuisance outages and panel downtime from faults, so a compact, non-indicating fuse helps minimize losses without adding indicator clutter. This device carries CE Marked and RoHS compliant certifications, plus CSA certification, ensuring global regulatory alignment. With a 16 A rating, 500 V rating, and a 50 kAIC interrupt capacity, it delivers protection without overdesign. Coupled with standard Bussmann series compatibility, it streamlines procurement and installation while supporting uptime and cost control in demanding electrical protection and circuit control applications.
Product Information
Extended Description
FWH5-016A6F Eaton: Eaton Bussmann series FWH high speed fuse, Electric engineering, 500V, 16A, 50 kAIC, Non Indicating, High speed fuse - FWH5-016A6F
Product Name
Eaton Bussmann series FWH high speed fuse
Catalog Number
FWH5-016A6F
UPC
051712531962
Product Length/Depth
1.25 in
Product Height
0.25 in
Product Width
0.25 in
Product Weight
0.005 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified
Amperage Rating
16 A
Interrupt rating
50 kAIC
Voltage rating
500 V
Packaging type
Standard
Fuse indicator
Non Indicating
Special features
Electric engineering
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FWH5-016A6F
Feature: Fast interruption with 16 A, 500 V rating and 50 kAIC interrupt capability → Business Impact: Rapid fault clearance minimizes collateral damage and downtime, protecting drives, power supplies, and control electronics in high-energy industrial environments → Application: Ideal for motor drives, servo systems, and power conversion circuits requiring tight overcurrent protection. Feature: Compact 1.25 in length and standard packaging → Business Impact: Saves panel space and enables denser assemblies, reducing enclosure costs and simplifying retrofits → Application: Control panels and distributed I/O enclosures where space is at a premium. Feature: Non-indicating design → Business Impact: Reduces panel clutter and tamper-resistance, lowering maintenance overhead; for status visibility, pair with indicators if required → Application: High-density control panels and safety-critical installations. Feature: Certifications including CE Marked, RoHS Compliant, and CSA Certified → Business Impact: Enables global deployment and faster procurement cycles, improving time-to-value across regions → Application: Global factory rollouts and multi-site projects. Feature: Compatibility with Bussmann series fuses and standard fuse holders → Business Impact: Seamless integration with existing protection schemes minimizes change management and stock keeping → Application: Upgrades and replacements in mature electrical protection architectures.
Get a Quick Quote for a Eaton FWH5-016A6F
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FWH5-016A6F?
Enquire Now
FAQs
The FWH5-016A6F is designed for compatibility with standard Bussmann series fuse holders and blocks. Its 1.25 inch length and standard packaging facilitate straightforward replacements in control panels, power supplies, and motor drive assemblies.
The fuse is rated for 16 A, 500 V, with an interrupt rating of 50 kAIC. It is non-indicating, standard-packaged, and intended for high-speed protection in industrial electrical circuits.
Best applications include electrical protection and circuit control in industrial automation, especially in motor drives, power supplies, and control panels where fast fault interruption and compact form factor are critical.
The FWH5-016A6F carries CE Marked, RoHS compliant, and CSA Certified designations, supporting global compliance and cross-border procurement for diverse manufacturing environments.
With a non-indicating design and a compact footprint, it reduces panel clutter and maintenance overhead while delivering reliable protection. Its high interrupt rating helps minimize costly downtime from faults, contributing to lower total cost of ownership.
