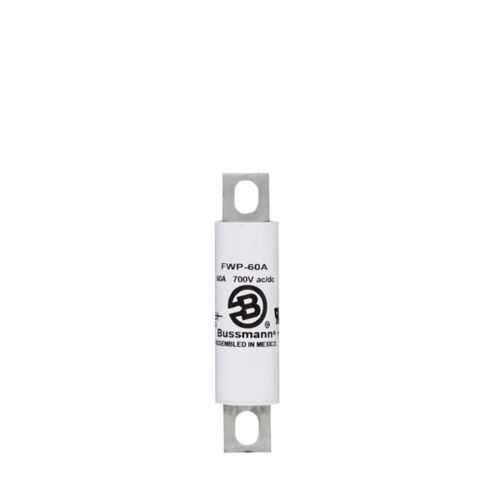

Eaton FWP-60A High Speed Fuse - RoHS Compliant
Part Number: FWP-60A
Quick Summary
The Eaton Bussmann FWP-60A high-speed fuse provides fast overcurrent protection for DC bus systems and drives. In DC power architectures, nuisance opens and delayed interruption can drive downtime and costly repairs. RoHS compliant and rated for 250 Vac/dc at 60 A, this Bussmann series device delivers reliable protection for DC drives, power converters, and rectifiers. Its stud mounting and compact 4.6 in length simplify panel integration, while standard packaging and a non-indicating fuse indicator minimize field adjustments. For procurement and maintenance teams, the FWP-60A offers predictable performance, easier stocking, and longer equipment life in demanding industrial environments.
Product Information
Extended Description
FWP-60A Eaton: Eaton Bussmann series FWP high speed fuse, DC common bus, DC drives, power converters/rectifiers, reduced voltage starters, 250 Vac/dc, 60A, Standard
Product Name
Eaton Bussmann series FWP high speed fuse
Catalog Number
FWP-60A
UPC
051712150316
EAN
5027590254755
Product Length/Depth
4.6 in
Product Height
1.12 in
Product Width
1.8 in
Product Weight
0.24 lb
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
60 A
Voltage rating
250 Vac/dc
Packaging type
Standard
Fuse indicator
Non Indicating
Mounting method
Stud
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FWP-60A
Bussmann series FWP series 5-1200A fuse data sheet no. 720012
Datasheet - FNQ-30
Feature: High-speed fuse design. Benefit: Rapid interruption limits arc and collateral damage, reducing downtime in critical DC power stages. Application: DC common bus protection for DC drives and power converters where fast fault clearance matters. Long-tail keywords: high-speed DC fuse, fast-acting fuse for drives, protective device for DC bus. Feature: 60 A, 250 Vac/dc rating. Benefit: Compatible with both AC and DC rails, safeguarding motors and power electronics while enabling standard electrical protection schemes. Application: DC drives, rectifiers, and motor controllers in industrial panels. Long-tail keywords: 60 amp fuse, 250 VAC/DC fuse. Feature: Stud mounting and compact size. Benefit: Simplified installation, secure connection to bus bars, and minimal panel space impact. Application: OEM control panels and retrofit projects. Long-tail keywords: stud-mounted fuse, compact electrical protection. Feature: RoHS compliant. Benefit: Regulatory compliance and safer material composition, reducing supply-chain risk. Application: industries with strict material standards. Long-tail keywords: RoHS compliant fuse, regulatory compliant fuse. Feature: Non-indicating indicator and standard packaging. Benefit: Low-cost maintenance with straightforward replacement and consistent stocking in warehouses. Application: field service and preventive maintenance. Long-tail keywords: non-indicating fuse, standard packaging fuse. Feature: Physical dimensions and weight. Benefit: Predictable integration into crowded panels and compatibility with existing mounting footprints. Application: panel layout optimization in DC power networks. Long-tail keywords: fuse dimensions 4.6 in x 1.8 in x 1.12 in, weight 0.24 lb.
Get a Quick Quote for a Eaton FWP-60A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FWP-60A?
Enquire Now
FAQs
The FWP-60A uses a stud mounting method, so plan for a secure, flush connection to DC bus bars. Verify stud size and tightening torque per your panel design to ensure reliable electrical contact. The compact 4.6 in length helps fit in tight enclosures, while the non-indicating feature reduces sensor wiring but requires routine visual checks during maintenance.
With a 60 A rating and 250 Vac/dc voltage capability, the FWP-60A provides fast overcurrent interruption essential for protecting DC drives, rectifiers, and power converters. Its high-speed fuse operation minimizes arc exposure during faults, preserving downstream electronics and reducing downtime in motor control applications.
Yes, the FWP-60A is RoHS compliant, aligning with material safety and regulatory requirements in many regions. The data does not list additional certifications; always verify with local authorities having jurisdiction for CE, UL, or other certifications relevant to your deployment.
The fuse measures 4.6 inches in length, 1.8 inches in width, and 1.12 inches in height, and it uses stud mounting. This combination supports straightforward installation in standard electrical panels and backplanes, with a compact footprint suitable for space-constrained DC power assemblies.
By delivering fast fault interruption, the FWP-60A reduces equipment damage and unplanned downtime, contributing to higher line uptime and lower maintenance costs. Its RoHS compliance and standard packaging streamline procurement and stocking, improving parts availability and minimizing long-term ownership costs in industrial environments.
