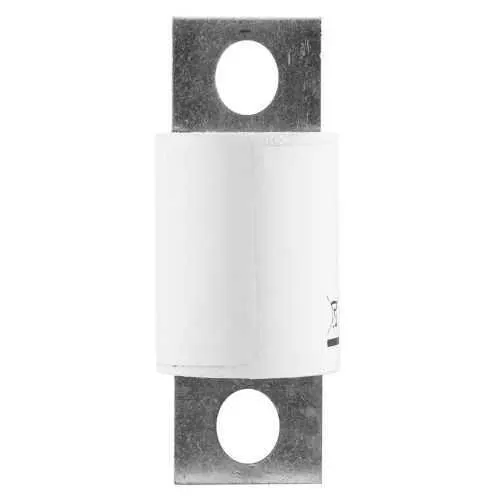

Eaton FWX-150A High Speed Fuse - 200 kAIC Vac
Part Number: FWX-150A
Quick Summary
The FWX-150A high speed fuse protects electrical systems by interrupting fault currents quickly in industrial drives and switchgear. Choosing a fuse with insufficient interrupt rating can lead to nuisance trips, equipment damage, and costly downtime during faults. This FWX-150A is CE marked and RoHS compliant, with CSA certification and UL Recognized, ensuring regulatory alignment. Designed for blade end x blade end connections and stud mounting, it supports compact protection schemes while delivering measurable business value through lower maintenance costs and faster service.
Product Information
Extended Description
FWX-150A Eaton: Eaton Bussmann series FWX high speed fuse, 150A RMS, 200 kAIC Vac, 50 kAIC at 250 Vdc, Non Indicating, High speed fuse, Blade end X blade end, Stud
Product Name
Eaton Bussmann series FWX high speed fuse
Catalog Number
FWX-150A
UPC
051712150651
Product Length/Depth
3.11 in
Product Height
3.11 in
Product Width
1.23 in
Product Weight
0.3 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Certifications
CSA Certified UL Recognized
Amperage Rating
150A RMS
Interrupt rating
200 kAIC Vac 50 kAIC at 250 Vdc
Watt losses
15.7 W
Packaging type
Standard
Connection
Blade end x blade end
Fuse indicator
Non Indicating
Mounting method
Stud
Bussmann series complete full line catalog no. 1007
Eaton Specification Sheet - FWX-150A
FWX-150A~BUSS HIGH SPEED FUSE
FWX-150A~BUSS HIGH SPEED FUSE
Datasheet - FNQ-30
Feature: 150A RMS protection with a 200 kAIC Vac interrupt rating and 50 kAIC at 250 Vdc. Business Impact: Enables fast fault interruption to protect motors, drives, and feeders, reducing arc flash risk and downtime; Application: motor drive panels and switchgear where high-energy faults may occur. The FWX-150A also delivers predictable performance across industrial environments, supporting lifecycle cost reduction and regulatory compliance. Feature: Non-indicating fuse indicator with blade end x blade end connections and stud mounting. Business Impact: Simplifies installation in compact control panels and allows quick replacement without sacrificing reliability; Application: retrofit projects and new builds with tight space constraints. Feature: 3.11 in length, 3.11 in height, 1.23 in width with a weight of 0.3 lb. Business Impact: Minimal footprint eases panel layout and reduces overall panel weight; Application: space-limited applications in industrial automation. Feature: 15.7 W watt losses offer predictable thermal performance for steady operation. Business Impact: Improves thermal management planning and reduces cooling costs in dense enclosures; Application: compact protection zones in control cabinets. Feature: Compliance and certifications (CE Marked, RoHS, CSA Certified, UL Recognized) provide broad regulatory assurance. Business Impact: Streamlines procurement and supplier qualification while meeting global safety standards; Application: multinational facilities and regulated industries. Feature: Data-ready with downloadable catalogs and datasheets for engineering validation. Business Impact: Accelerates specification and sourcing processes, reducing design cycles; Application: engineering BOMs and maintenance planning.
Get a Quick Quote for a Eaton FWX-150A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton FWX-150A?
Enquire Now
FAQs
The FWX-150A supports blade end x blade end connections and stud mounting, offering flexibility for both plug-in style panelboards and screw-in mounting in control cabinets. This combination simplifies retrofits and new installations while preserving compact enclosure footprints. It is important to verify enclosure clearance and connector availability during design reviews to avoid space conflicts.
FWX-150A is rated for 150A RMS with an interrupt rating of 200 kAIC at VAC conditions and 50 kAIC at 250 VDC. It dissipates approximately 15.7 W during operation. These ratings make the FWX-150A suitable for protecting motor feeders and power distribution in industrial environments, while meeting performance requirements for high-energy faults.
Yes. The FWX-150A high speed fuse is designed for fast fault interruption in motor drive circuits and related protection schemes. Its high interrupt rating helps isolate faults quickly, limiting damage to drives and wiring. When selecting for motor protection, ensure the fuse current rating matches the system’s run and fault current profiles and consider the DC-link requirements where applicable.
FWX-150A carries CE Marking and RoHS compliance, along with CSA Certification and UL Recognized status. These certifications confirm compliance with European and North American safety and environmental standards, easing procurement for regulated facilities and reducing compliance risk across global sites where equipment must meet strict industrial guidelines.
Official documentation is available from Eaton. Key resources include the Bussmann series catalog no. 1007, the Eaton Specification Sheet for FWX-150A, and the FWX high speed fuse data sheets. These documents provide installation guidelines, electrical ratings, dimension data, and wiring recommendations to support accurate specification and compliance checks.
