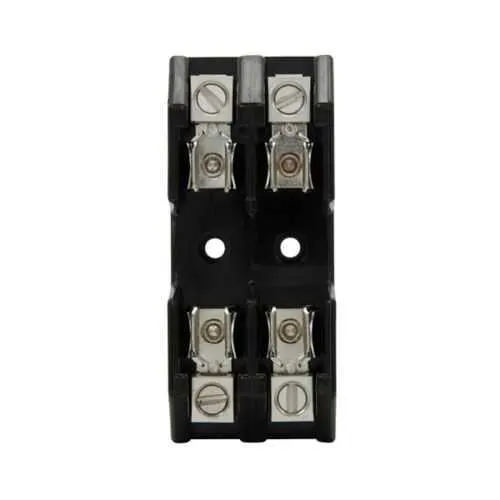

Eaton G30060-1CR Open Fuse Block for SC Fuse - UL Listed
Part Number: G30060-2CR
Quick Summary
The Eaton G30060-1CR Open Fuse Block provides safe, compact protection for SC fuse-equipped electrical panels in industrial automation environments. In tight control cabinets, space constraints and wiring mistakes can lead to longer downtime and higher maintenance costs. This configuration is UL Listed, CSA Certified, and RoHS Compliant, ensuring broad regulatory acceptance and reduced compliance risk for North American installations. Designed for 35-60 A at 480 V with a single-pole configuration and phenolic construction, it accepts box lug/retaining clip terminations and supports #8-2 AWG aluminum or #14-2 AWG copper conductors. By standardizing on a Bussmann series G fuse block, teams gain faster installation, improved reliability, and easier future upgrades.
Product Information
Extended Description
G30060-2CR Eaton: Eaton Bussmann series G open fuse block, CR, 35-60 A, Two-pole, Class G, Box lug/retaining clip, Phenolic, 480 V, For use with SC fuse, #8-2 AWG Al, #14-2 AWG Cu
Product Name
Eaton Bussmann series G open fuse block
Catalog Number
G30060-2CR
UPC
051712736657
Product Length/Depth
4.5 in
Product Height
1 in
Product Width
2 in
Product Weight
0.38 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
35-60A
Voltage rating
480 V
Material
Phenolic
Number of Poles
Two-pole
Wire size
#14-2 AWG Cu #8-2 AWG Al
Class
Class G
Connection
Box lug/retaining clip
Special features
CR
Used with
For use with SC fuse
G30060-2CR~BUSS FUSE BLOCK
G30060-2CR~BUSS FUSE BLOCK
Bussmann series Fuseology
Eaton Specification Sheet - G30060-2CR
Open fuse block design enables quick fuse replacement and space efficiency. This translates to reduced maintenance downtime and safer handling in crowded control cabinets. The broader Bussmann G family ensures consistent fusing strategies across panels and simplifies spares inventory, delivering measurable cost savings over service life. Application notes: industrial automation panels, switchgear, and compact machines. Electrical ratings ensure compatibility: 35-60 A, 480 V, single-pole. Impact: supports standard SC fuses, reduces need for adapters, streamlines procurement. Construction and materials emphasize a robust phenolic housing with box lug/retaining clip terminations; Impact: vibration-resistant, durable in harsh environments. Wire compatibility covers #8-2 AWG Al and #14-2 AWG Cu, offering installation flexibility and reduced need for adapters. Compliance and certifications including UL Listed, CSA Certified, and RoHS; Impact: simplifies vendor qualification and regulatory adherence. Size and weight deliver a compact footprint (4.5 in L, 1 in W, 0.5 in H; 0.2 lb), enabling dense, space-efficient panel layouts without compromising safety.
Get a Quick Quote for a Eaton G30060-2CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton G30060-2CR?
Enquire Now
FAQs
The G30060-1CR is a single-pole open fuse block designed for 35–60 A at 480 V and is intended for use with SC fuses. It accommodates #8-2 AWG aluminum or #14-2 AWG copper conductors and uses a box lug/retaining clip termination. Certifications include UL Listed and CSA Certified, with RoHS compliance for regulatory alignment.
Begin by confirming panel space for a single-pole block and selecting the appropriate conductor sizes (#8-2 AWG Al or #14-2 AWG Cu). Mount the block securely using the provided box lug/retaining clip, route conductors to minimize strain, and ensure compatible SC fuses are seated fully. Verify RoHS, UL, and CSA compliance before energizing.
Yes, the G30060-1CR is RoHS compliant. It carries UL Listed and CSA Certified certifications, providing recognized regulatory approval for North American electrical assemblies and helping with supplier qualification and compliance reporting.
The device supports #8-2 AWG aluminum and #14-2 AWG copper conductors. Termination is via box lug and retaining clip, which offers secure, vibration-resistant connections suitable for compact, high-density panels common in industrial automation.
The G30060-1CR reduces downtime through quick fuse replacement and a straightforward termination scheme. Its compact footprint frees panel space, while UL CSA certifications and RoHS compliance simplify procurement and regulatory alignment, yielding lower maintenance costs and faster panel upgrades in production environments.
