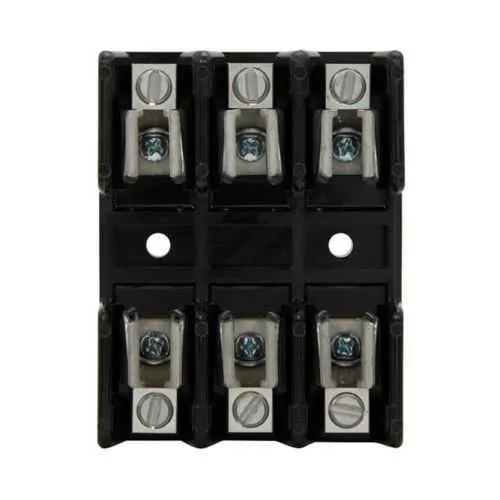

Eaton G30060-3C Open Fuse Block - 100 kAIC UL Listed
Part Number: G30060-3C
Quick Summary
Eaton G30060-3C open fuse block provides a robust three-pole protection solution for industrial control panels. Many engineers struggle with fitting high-current protection into compact enclosures while maintaining SC fuse compatibility. Certified RoHS compliant and UL Listed with CSA certification, the block aligns safety, regulatory, and procurement needs. Designed for three-pole protection at 35-60 A and 480 V, it supports box-lug terminations and easy SC fuse integration. Choosing a RoHS-compliant, UL Listed, and CSA-certified block helps procurement reduce part variance and streamline compliance documentation. In practice, engineers see faster panel commissioning and reliable protection under coordinated SC fuse protection.
Product Information
Extended Description
G30060-3C Eaton: Eaton Bussmann series G open fuse block, 35-60 A, Three-pole, Class G, Box lug, 100 kAIC, Phenolic, 480 V, Use with SC fuse, #8-2 AWG Al, #14-2 AWG Cu
Product Name
Eaton Bussmann series G open fuse block
Catalog Number
G30060-3C
UPC
051712106214
EAN
5027590062497
Product Length/Depth
3.58 in
Product Height
1.41 in
Product Width
2.78 in
Product Weight
0.44 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
35-60A
Interrupt rating
100 kAIC
Short-circuit rating
100 kA
Voltage rating
480 V
Material
Phenolic
Number of Poles
Three-pole
Wire size
#14-2 AWG Cu #8-2 AWG Al
Class
Class G
Connection
Box lug
Used with
For use with SC fuse
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - G30060-3C
G30060-3C~BUSS FUSE BLOCK
Three-pole protection with a 35-60 A amperage rating and 480 V voltage rating, combined with a 100 kAIC interrupt capability, delivers robust fault protection in demanding industrial environments. This feature translates to improved safety margins and reduced downtime when protecting feeders and motors in compact control panels; ideal for panel boards and motor control centers using SC fuses. Box lug terminations support secure, code-compliant wiring for #14-2 Cu or #8-2 Al conductors, which lowers field wiring errors and accelerates installation in harsh environments while maintaining reliable connections. The phenolic housing provides a cost-effective insulation solution with adequate heat resistance, contributing to lower total cost of ownership in mid-size switchgear assemblies and machine controls. RoHS compliance, UL Listed, and CSA Certified ratings address procurement risk and streamline compliance documentation for regulated industries. The block’s footprint—3.58 in L × 1.41 in H × 2.78 in W and 0.44 lb—enables mounting in space-constrained panels without compromising protection. Designed to work with Bussmann series G open fuses, it ensures seamless SC fuse compatibility and reduces spare parts inventory in multi-vendor environments. In practice, this translates to faster commissioning, predictable protection performance, and easier maintenance planning in industrial applications.
Get a Quick Quote for a Eaton G30060-3C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton G30060-3C?
Enquire Now
FAQs
Begin by verifying panel clearance and wiring routes, then mount the G30060-3C in the enclosure. Use box lug terminations and connect conductors up to #14-2 Cu or #8-2 Al, tightening to the recommended torque. Ensure fuses are properly seated in the SC fuse holders and follow proper sequential wiring for a balanced three-phase circuit. Check voltage rating (480 V) and amperage range (35-60 A) for correct protection coordination. Finally, verify RoHS compliance and safety labeling before commissioning.
The G30060-3C is a three-pole block rated 35-60 A with a 100 kAIC interrupt capability at 480 V, designed to protect three-phase feeders and motors. Its SC fuse compatibility matches Bussmann G series fuses, enabling coordinated protection. UL Listed and CSA Certified status supports compliant motor control panel builds, while the compact form factor simplifies installation in limited spaces.
Yes. The G30060-3C uses RoHS-compliant materials and construction, reducing hazardous substance content in assemblies. Its phenolic housing provides insulating performance suitable for industrial environments, and UL/CSA certifications reinforce compliance posture for regulated facilities. This helps procurement satisfy sustainability requirements without sacrificing protection performance.
The G30060-3C is UL Listed and CSA Certified, with RoHS compliance. These certifications support regulatory compliance, product safety, and reliability in industrial environments, enabling safer procurement and smoother approval processes for panel builds and upgrades.
The block measures 3.58 in (L) × 1.41 in (H) × 2.78 in (W) and weighs 0.44 lb. It features box lug connections suitable for #14-2 AWG Cu and #8-2 AWG Al conductors, and is designed for use with SC fuses. These dimensions and terminations support compact, reliable integration in space-constrained electrical panels.
