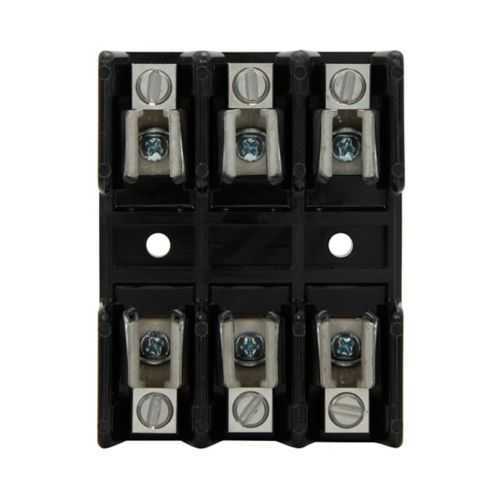

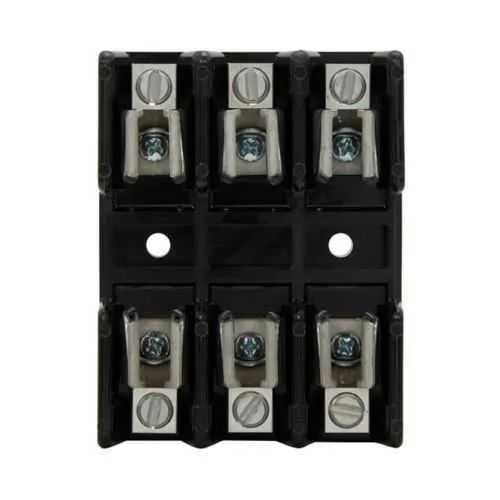

Eaton G30060-3CR Open Fuse Block - RoHS Compliant
Part Number: G30060-3CR
Quick Summary
The Eaton G30060-3CR open fuse block provides reliable three-pole circuit protection for 480 V industrial panels. When space is tight and wiring must stay compliant, installers face alignment and termination challenges; this unit’s compact footprint and robust box lug/retaining clip design help streamline assembly and reduce error. It carries UL Listed and CSA Certified marks, and RoHS compliance, aligning with critical safety and environmental standards. Designed for SC fuse compatibility, it supports copper and aluminum conductors and offers clear terminal access, improving maintenance efficiency while delivering consistent protection in demanding industrial environments. For engineers and procurement teams, this means faster panel builds, easier sourcing, and predictable long-term performance.
Product Information
Extended Description
G30060-3CR Eaton: Eaton Bussmann series G open fuse block, CR, 35-60 A, Three-pole, Class G, Box lug/retaining clip, Phenolic, 480 V, For use with SC fuse, #8-2 AWG Al, #14-2 AWG Cu
Product Name
Eaton Bussmann series G open fuse block
Catalog Number
G30060-3CR
UPC
051712736732
EAN
5027590243322
Product Length/Depth
3.563 in
Product Height
1.5 in
Product Width
2.75 in
Product Weight
0.442 lb
Warranty
Not Applicable
Compliances
RoHS Compliant
Certifications
Contact Manufacturer UL Listed CSA Certified
Amperage Rating
35-60A
Voltage rating
480 V
Material
Phenolic
Number of Poles
Three-pole
Wire size
#14-2 AWG Cu #8-2 AWG Al
Class
Class G
Connection
Box lug/retaining clip
Special features
CR
Used with
For use with SC fuse
Bussmann series Fuseology
Eaton Specification Sheet - G30060-3CR
G30060-3CR~BUSS FUSE BLOCK
Datasheet - FNQ-30
Feature: Three-pole Class G design ratings up to 60 A at 480 V. Business Impact: Enables reliable protection for three-phase circuits with a compact form factor, reducing panel footprint and wiring complexity. Application: Industrial control panels and motor control centers where space is at a premium. Feature: Box lug/retaining clip termination. Business Impact: Secure wire connections that resist vibration and accidental loosening, lowering maintenance downtime. Application: Enclosed switchgear and panel boards subjected to frequent thermal cycling. Feature: Phenolic material with RoHS compliance. Business Impact: Provides durable insulation and environmental compliance, lowering risk of insulation failure and reducing regulatory overhead. Application: Harsh factory floors and retrofit projects requiring RoHS. Feature: For use with SC fuse and Cu/Al conductors (#14-2 Cu, #8-2 Al). Business Impact: Faster wiring and universal conductor compatibility, reducing inventory requirements. Application: Panel assemblies where mixed Cu/Al wiring is common. Feature: Dimensions and weight (3.563 in length, 2.75 in width, 1.5 in height, 0.442 lb). Business Impact: Lightweight, easy handling and installation in tight spaces, minimizing labor costs. Application: Retrofit or new builds with tight space constraints. Feature: Compliances UL Listed, CSA Certified. Business Impact: Streamlines procurement and regulatory approvals, ensuring downstream certification compatibility. Application: Automotive, industrial, and process control environments requiring accredited protection.
Get a Quick Quote for a Eaton G30060-3CR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton G30060-3CR?
Enquire Now
FAQs
The G30060-3CR is designed for use with SC fuses in three-pole configurations. It accepts Cu wire up to #14-2 and Al wire up to #8-2, with box lug/retaining clip terminations for secure wiring in 480 V systems. It fits into typical electrical panels that require a compact, RoHS-compliant fuse block.
The fuse block provides a 35-60 A amperage rating at 480 V, Class G, three-pole configuration. These ratings support reliable protection for mid-range industrial loads while maintaining safe insulation and operation within standard 480 V distribution systems.
Common applications include industrial control panels, motor control centers, and electrical protection assemblies in manufacturing, process industries, and packaging lines. Its compact footprint and SC fuse compatibility make it ideal for retrofit and new-build panels where space and compliance are critical.
The block is UL Listed and CSA Certified and RoHS Compliant, ensuring compatibility with safety and environmental regulations in many regions. This supports regulatory approvals and supplier qualification without additional testing.
Use proper torque on lug terminals, verify wire termination security, and plan for RoHS-compliant materials. The device’s compact size reduces panel space and wiring complexity, lowering labor costs during install and future maintenance while maintaining reliable protection over the equipment’s lifecycle.
